| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-V51124 |
| Series: | P5-V |
| Housing Material: | Stainless Steel |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST |
| Actuator Type: | Button (Curved) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .14 in |
| Switch Function: | Off-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-V51124 |
P5-V51124
Specifications
Detailed Description

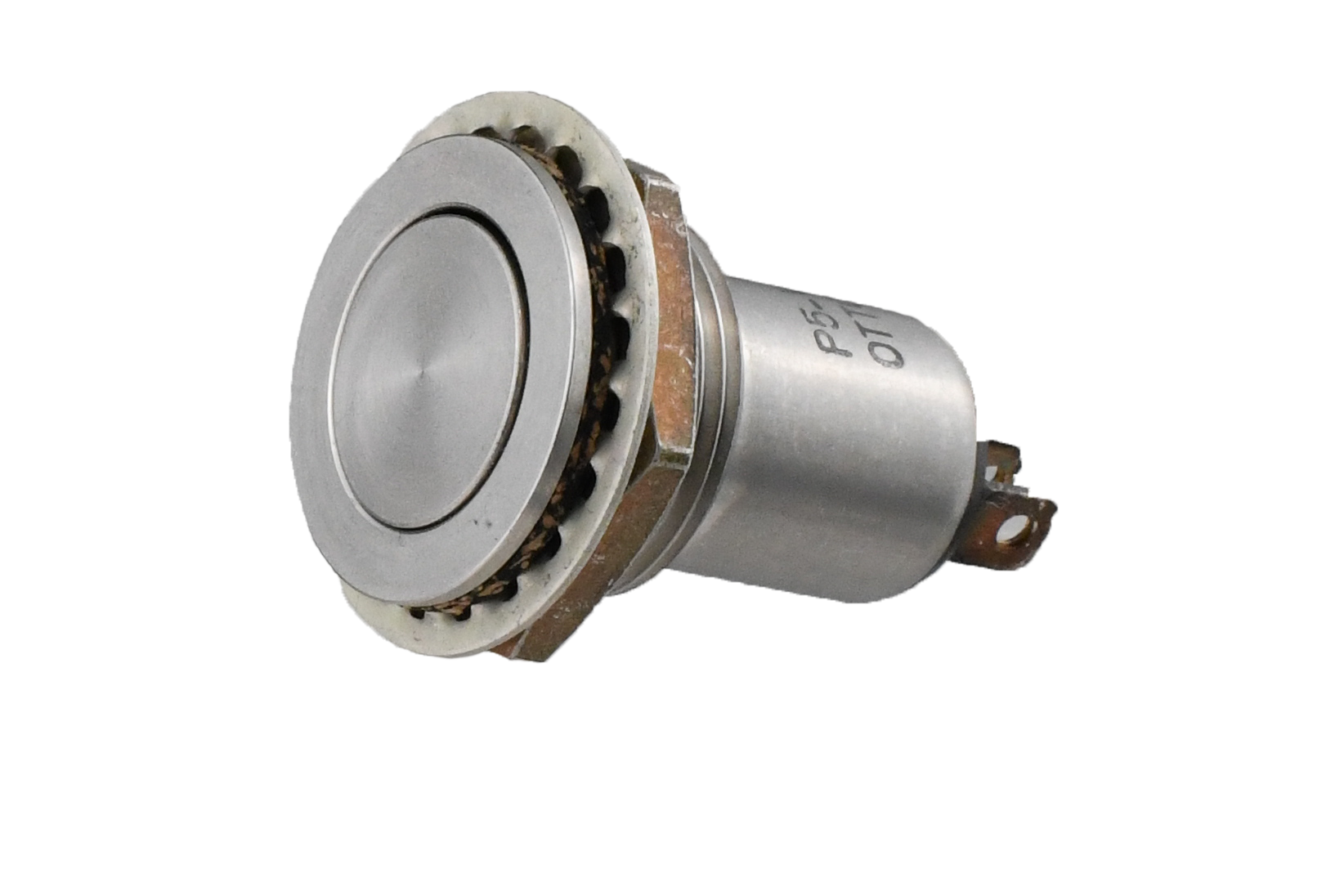

Introducing the P5-V51124, a rugged and reliable Vandal Resistant Pushbutton Switch designed for demanding environments. With a durable stainless steel housing and silver contact plating, this switch ensures long-lasting performance even in harsh conditions. The IP6K8S rating guarantees protection against dust and water ingress, while the panel mount installation offers secure placement. Featuring a 5A current rating and SPST contact configuration, it provides efficient power control. The Off-On switch function and solder termination type enhance usability. Ideal for industrial applications, this Sealed Push Button Switch operates flawlessly from -40°C to 85°C, making it a dependable choice for machinery, equipment, and more. Upgrade to the P5-V series for quality assurance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
