| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-V52114 |
| Series: | P5-V |
| Housing Material: | Stainless Steel |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST |
| Actuator Type: | Button (Curved) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .14 in |
| Switch Function: | Off-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-V52114 |

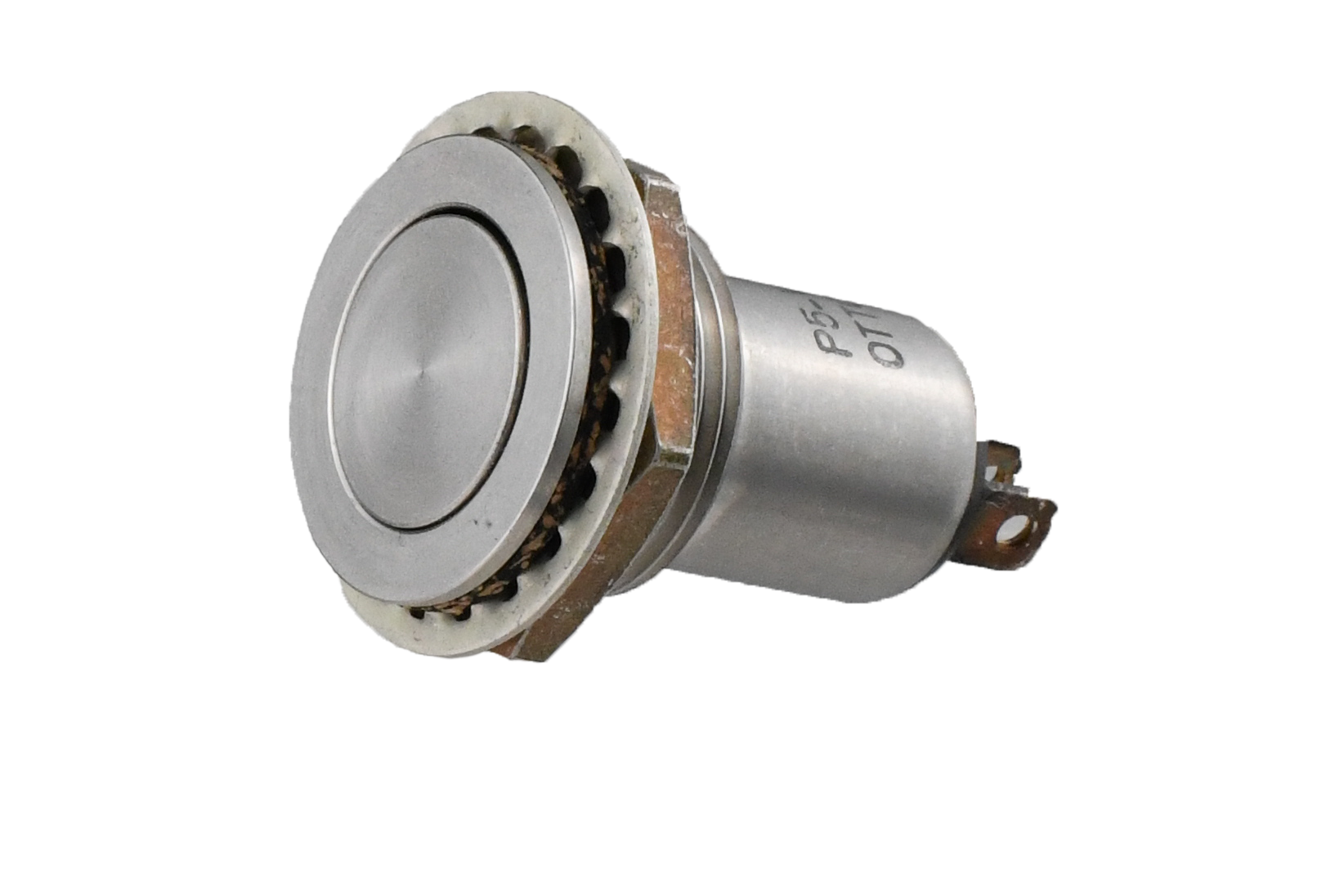

P5-V52114
Specifications
Detailed Description
Introducing the Vandal Resistant Pushbutton Switch, the ultimate solution for durable and reliable control in any environment. With a sleek Silver design and Stainless Steel construction, this switch is not only aesthetically pleasing but also built to withstand the toughest conditions. Featuring an Off-On switch function and a 5A current rating, it ensures efficient operation. The IP6K4S rating guarantees protection against dust and water ingress, making it ideal for outdoor and industrial applications. Panel mountable with solder termination, installation is convenient. With a durability rating of 25,000 cycles and a wide operating temperature range from -40°C to 85°C, this switch is truly dependable. Trust in the P5-V52114 for your push-button control needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
