| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-V52123 |
| Series: | P5-V |
| Housing Material: | Stainless Steel |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST |
| Actuator Type: | Button (Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .08 in |
| Switch Function: | Off-On |
| Type: | Sealed |
| Durability Rating (Cycles): | 25,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP5-V52123 |
P5-V52123
Specifications
Detailed Description

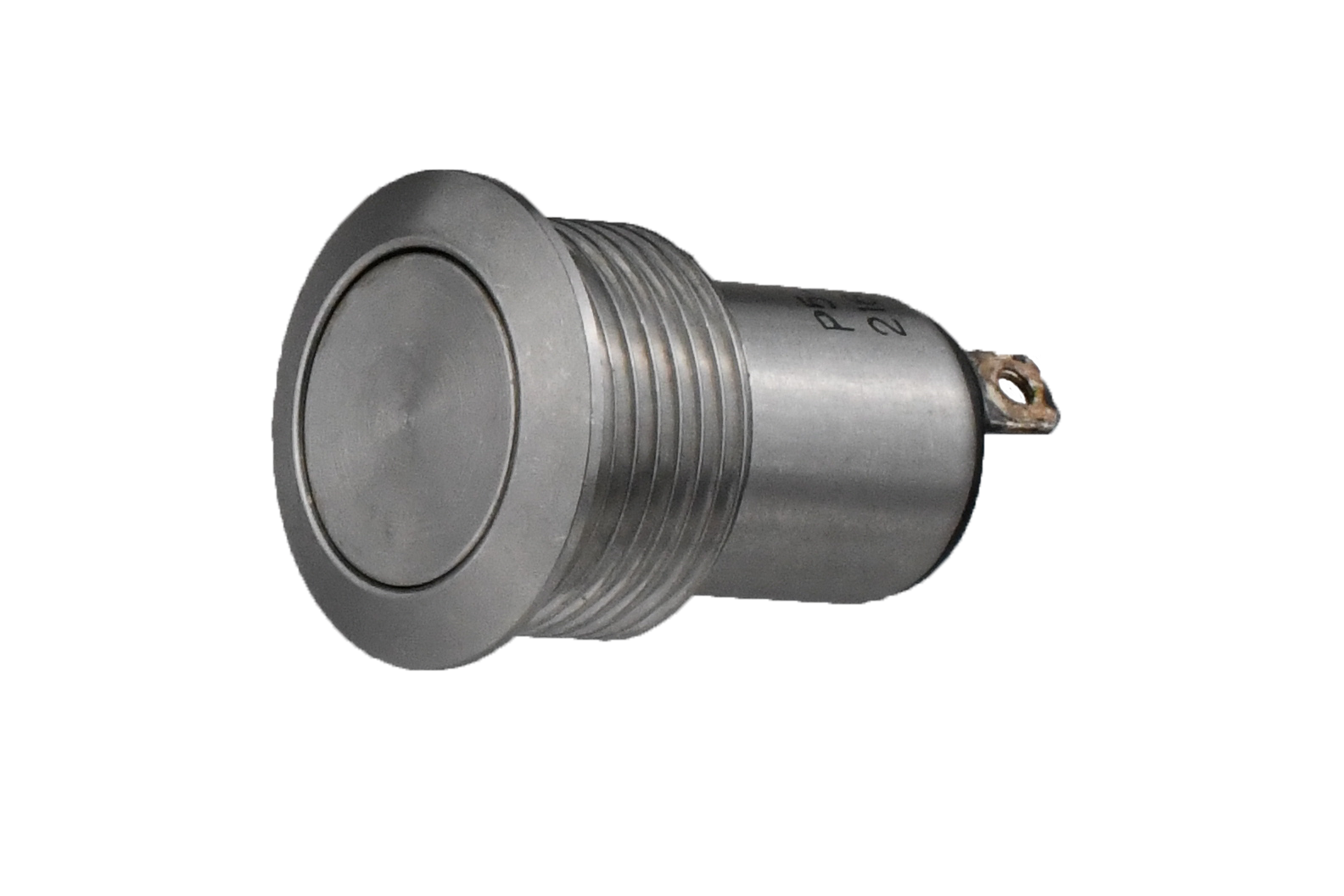

Introducing the P5-V52123 Vandal Resistant Pushbutton Switch, a high-performance panel mount switch designed for durability in demanding environments. Featuring a sleek silver case and cap color, this switch boasts an IP6K8S rating for water and dust resistance. The stainless steel housing and actuator ensure longevity, with a 5A current rating and brass contact material for reliable performance. The Off-On switch function and SPST contact configuration make it ideal for various applications. With a wide operating temperature range from -40°C to 85°C, this switch is suitable for both indoor and outdoor use. Trust in the P5-V52123 for secure and efficient control in industrial settings.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
