| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P5-V71115 |
| Series: | P5-V |
| Cap Color: | Silver |
| IP Rating: | IP6K4S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flat) |
| Actuator Shape: | Round |
| Current Rating: | 5 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .05 in |
| Contact Plating: | Silver |
| Switch Function: | On-Off |
| Contact Material: | Brass |
| Housing Material: | Stainless Steel |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Stainless Steel |
| Durability Rating (Cycles): | 25,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | OTTP5-V71115 |

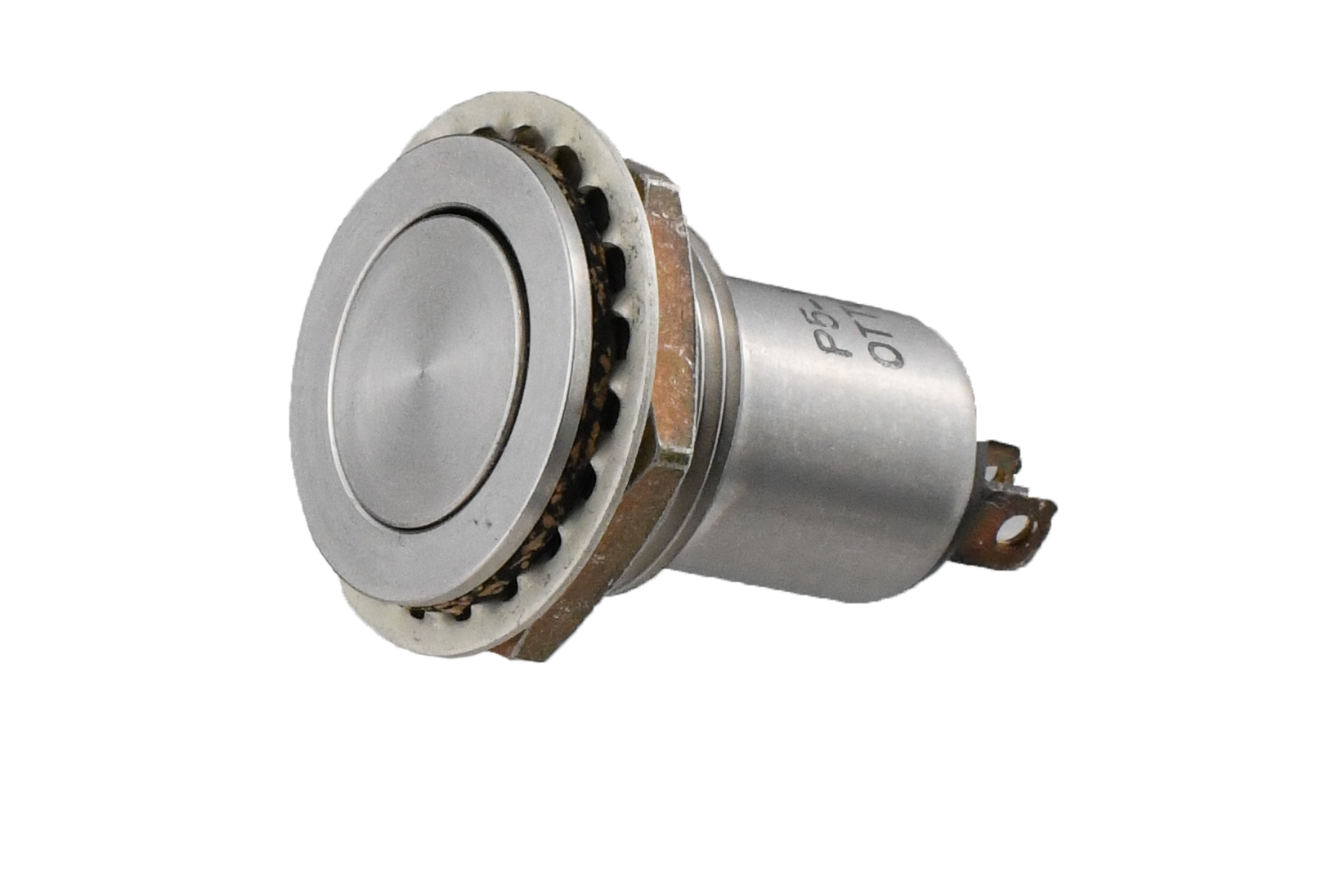

P5-V71115
Specifications
Detailed Description
Introducing the Vandal Resistant Pushbutton Switch, a durable and reliable solution for your industrial control needs. With a sleek silver design and stainless steel housing, this switch is not only robust but also resistant to tampering. Featuring a flat round button actuator and a 5A current rating, it ensures smooth operation in high-demand environments. The SPST contact configuration and brass contact material guarantee efficient conductivity, while the IP6K4S rating certifies protection against dust and water ingress. Ideal for panel mounting with solder termination, this switch offers easy installation. Whether for machinery, security systems, or automotive applications, trust in the P5-V71115 for long-lasting performance in harsh conditions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
