P5-V71213

OTTP5_V71213
Heilind Number:OTTP5-V71213
Manufacturer:OTTO Controls
Manufacturer Number:P5-V71213
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

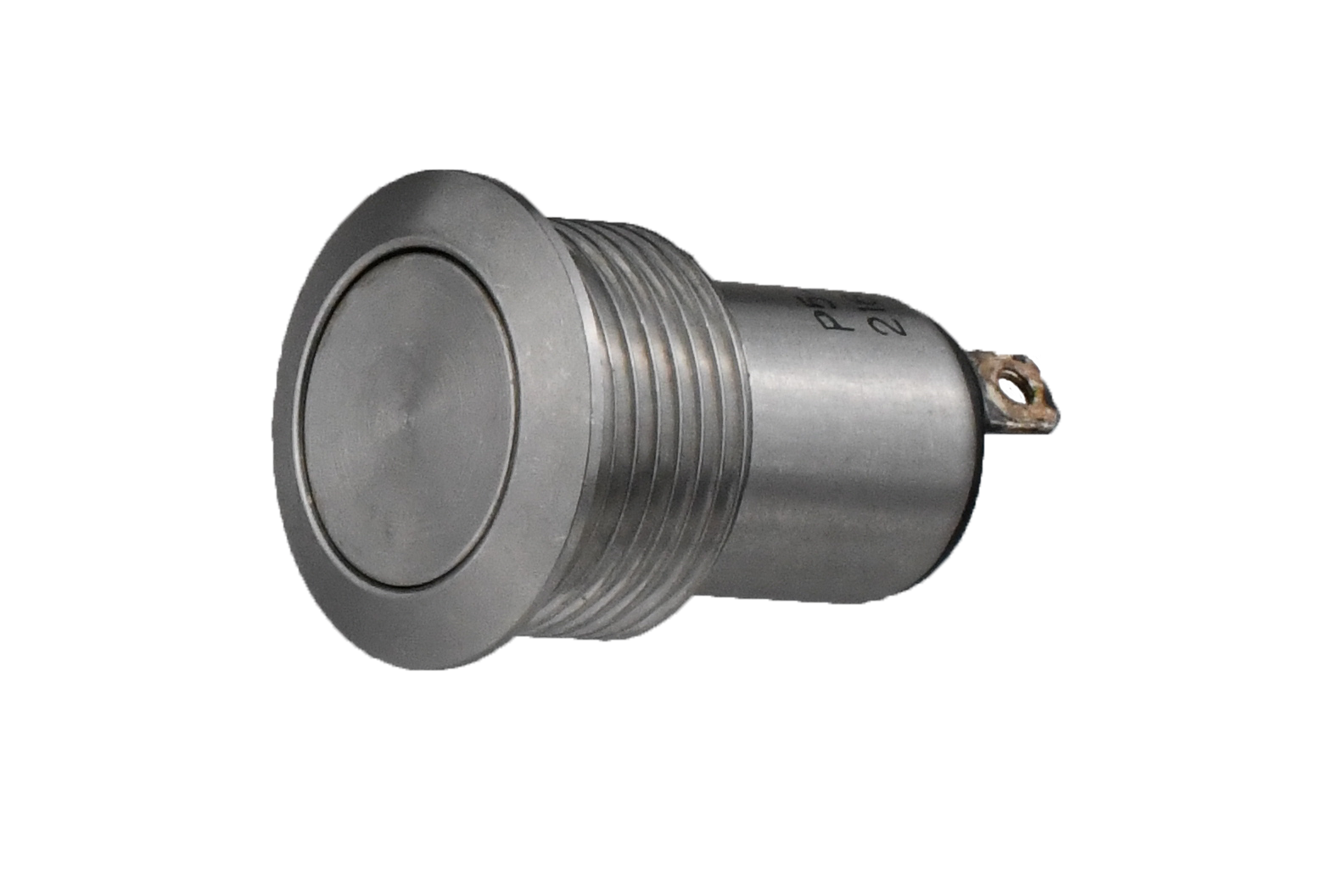

Vandal Resistant Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P5-V71213
Series:P5-V
Cap Color:Silver
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flat)
Actuator Shape:Round
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.08 in
Contact Plating:Gold
Switch Function:On-Off
Contact Material:Brass
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):25,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-40 °C
SKU:OTTP5-V71213

Detailed Description

Meet the ultimate in durability and reliability with our Vandal Resistant Pushbutton Switch, SKU P5-V71213. Part of the P5-V series, this switch features a sleek silver design with a flat round button actuator. Perfect for panel mounting, it boasts an IP6K4S rating for superior protection against dust and water ingress. With a gold contact plating on brass and stainless steel housing, it ensures long-lasting performance even in harsh environments. Operating at 115VAC and 28VDC, it offers a 5A current rating with SPST contact configuration. Whether used in industrial machinery or outdoor applications, this sealed switch guarantees 25,000 cycles of reliable On-Off functionality. From its -40°C minimum to 85°C maximum operating temperature range, rest assured of consistent operation in any condition. Upgrade to our Vandal Resistant Pushbutton Switch for uncompromising quality and performance.
