| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P6-353420 |
| Series: | P6 - 3 |
| Maximum Operating Temperature: | -55 °C |
| Minimum Operating Temperature: | 85 °C |
| IP Rating: | Symbol 3 |
| Contact Configuration: | DPDT-DB |
| Actuator Type: | Lever |
| Operating Force: | 32 oz |
| Termination Type: | Wire Lead(s) |
| Durability Rating (Cycles): | 50,000 Cycles |
| Mounting Style: | Chassis Mount |
| Current Rating: | 10 A |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP6-353420 |
P6-353420
Specifications
Detailed Description

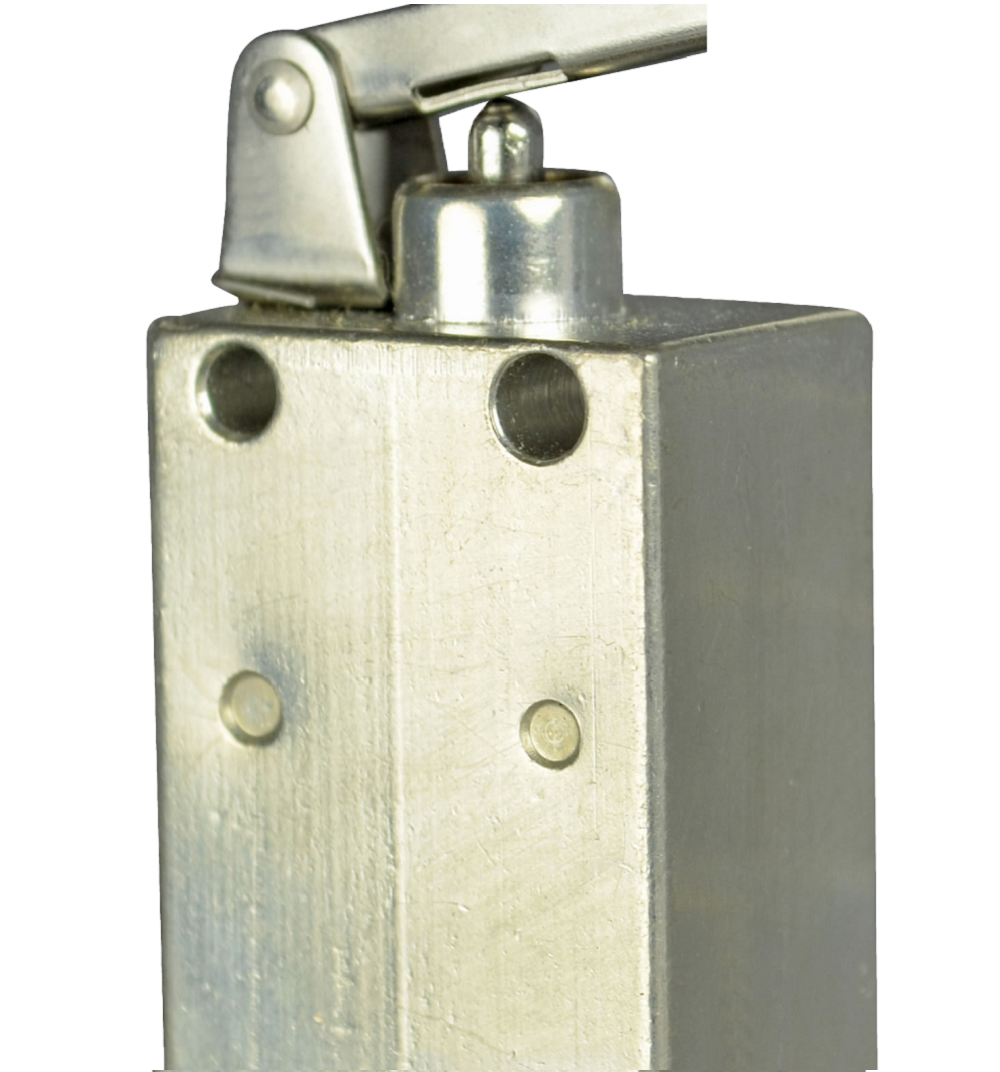

Introducing the P6-353420, a rugged and reliable Subminiature Sealed Limit Switch from the P6 Series. Designed for industrial applications, this switch boasts an IP Rating of Symbol 3, ensuring protection against dust and water ingress. Featuring a Lever actuator type, it offers precise and responsive operation. With a current rating of 10A and a voltage rating of 28VDC, this switch is suitable for a wide range of electrical circuits. The DPDT-DB contact configuration provides versatility in signal switching. Its chassis mount and wire lead termination make installation easy. Built for durability, it offers a lifespan of 50,000 cycles. Operating efficiently in temperatures ranging from -55°C to 85°C, it is perfect for harsh environments. The P6-353420 is the ideal choice for high-performance limit switching applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
