| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P7-326112 |
| Series: | P7 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPDT |
| Actuator Type: | Button (Flat) |
| Case Color: | Silver |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .08 in |
| Switch Function: | ON-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 50,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP7-326112 |

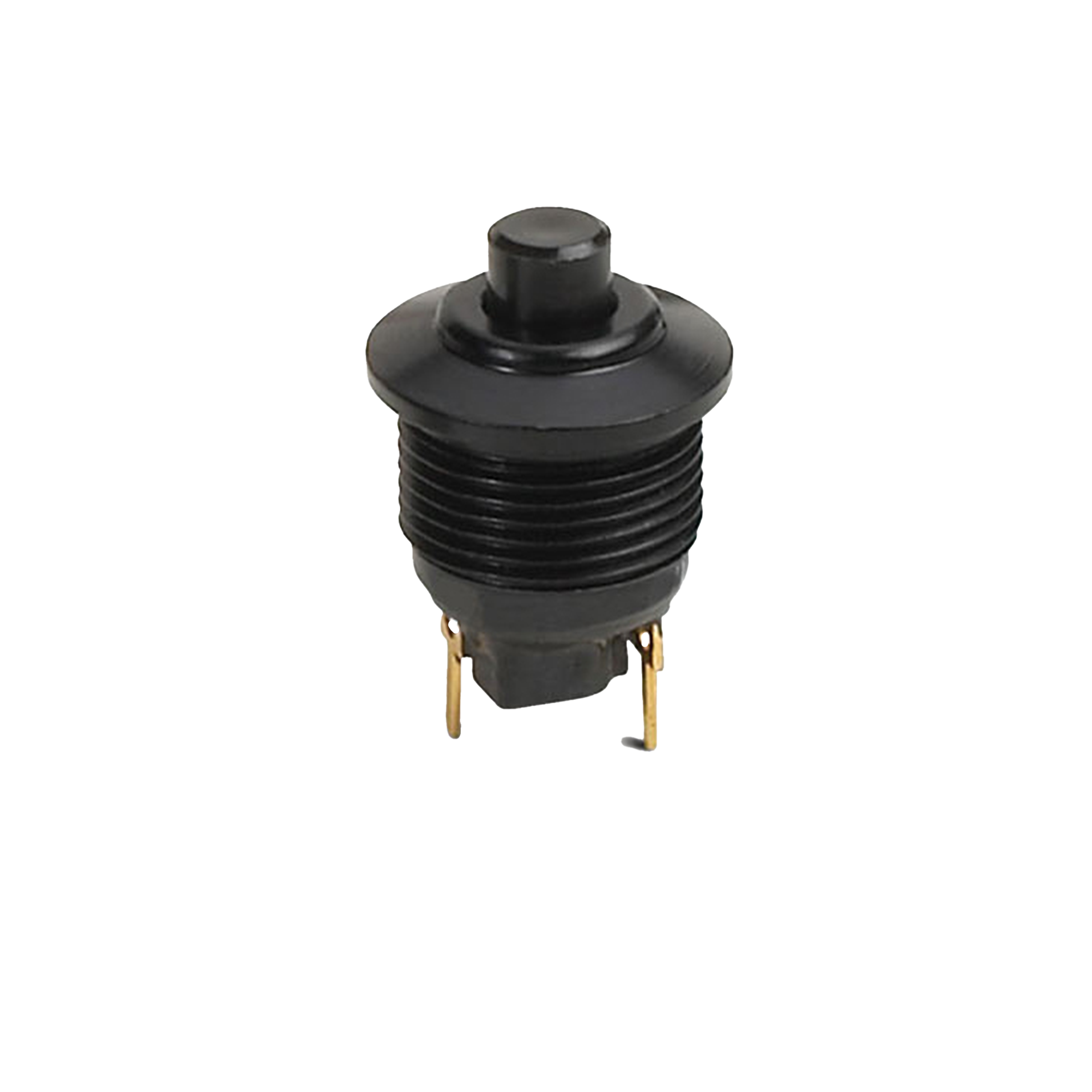

P7-326112
Specifications
Detailed Description
Introducing the P7-326112, a high-performance pushbutton switch from the P7 series. This sleek and durable switch features a flat black button actuator, housed in a silver aluminum casing for a modern aesthetic. With an IP6K4S rating, it ensures reliable operation even in harsh environments. The SPDT contact configuration, along with a 5A current rating, guarantees efficient power control. Ideal for panel mounting, this switch is perfect for various applications. Its sealed construction, with gold-plated brass contacts, offers excellent longevity, rated for up to 50,000 cycles. Operating between -55°C to 85°C, and compatible with both AC and DC voltages, it provides versatility and performance in any setting. Upgrade your control systems with the P7326112 pushbutton switch.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
