| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P7-371228 |
| Series: | P7 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Gray |
| Actuator Length: | .08 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 50,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP7-371228 |
P7-371228
Specifications
Detailed Description

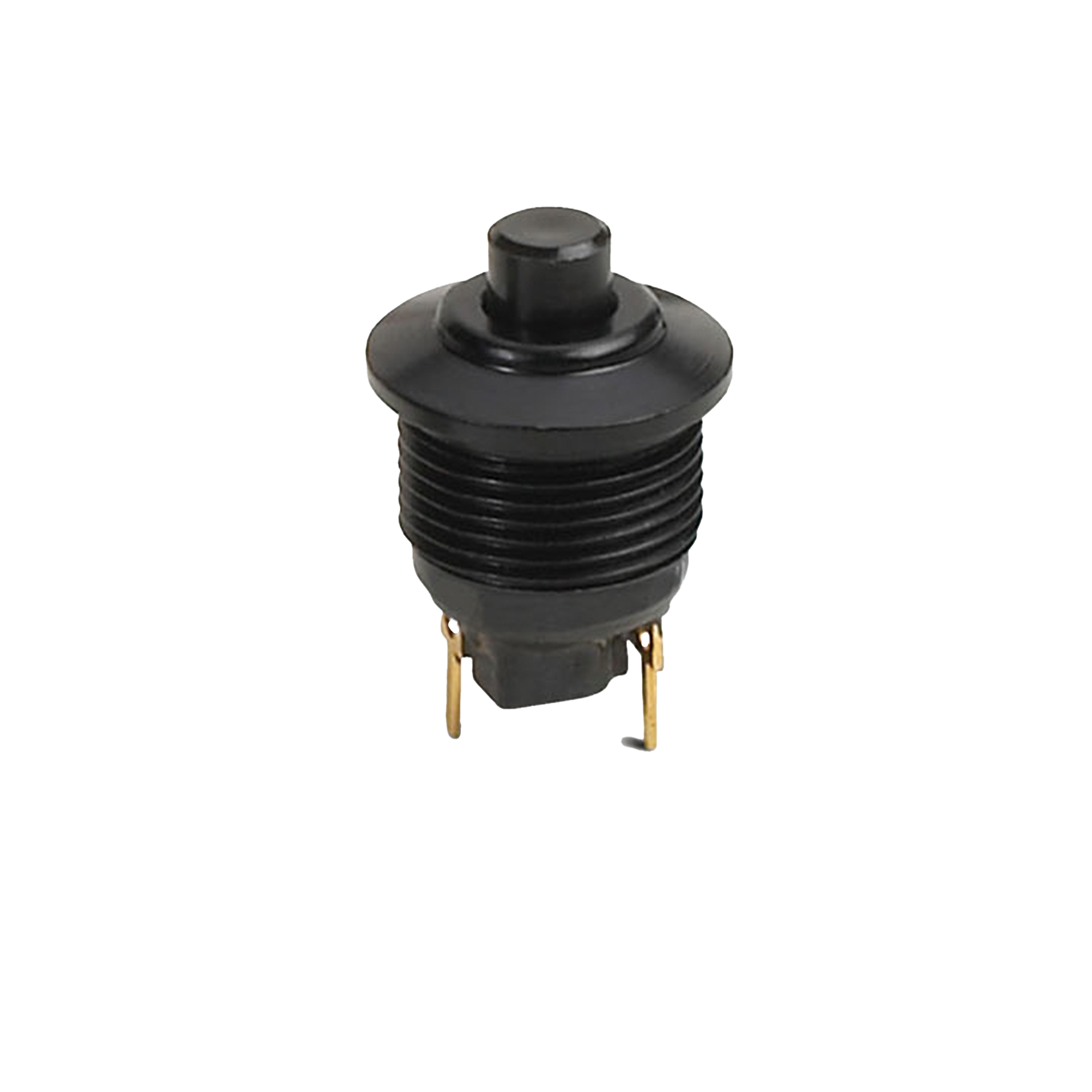

The P7-371228 Pushbutton Switch, part of the P7 series, boasts a sleek design with a Gray cap and Black case. With an IP6K8S rating, it ensures reliable performance in demanding environments. Featuring a flat Round button actuator, it offers a comfortable user experience. This sealed switch, with a durable aluminum housing and thermoplastic actuator, guarantees longevity. Operating at 115 VAC and 28 VDC, it's suitable for various applications. The SPST-NO contact configuration and 5A current rating make it ideal for power control. With a wide temperature range from -55°C to 85°C and a durability rating of 50,000 cycles, this switch is dependable in any situation. Whether for industrial or commercial use, the P7-371228 is a high-quality solution for your switching needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
