| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P7-AA1145 |
| Series: | P7 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Raised) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Square |
| Cap Color: | Green |
| Actuator Length: | .17 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 50,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 5 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP7-AA1145 |

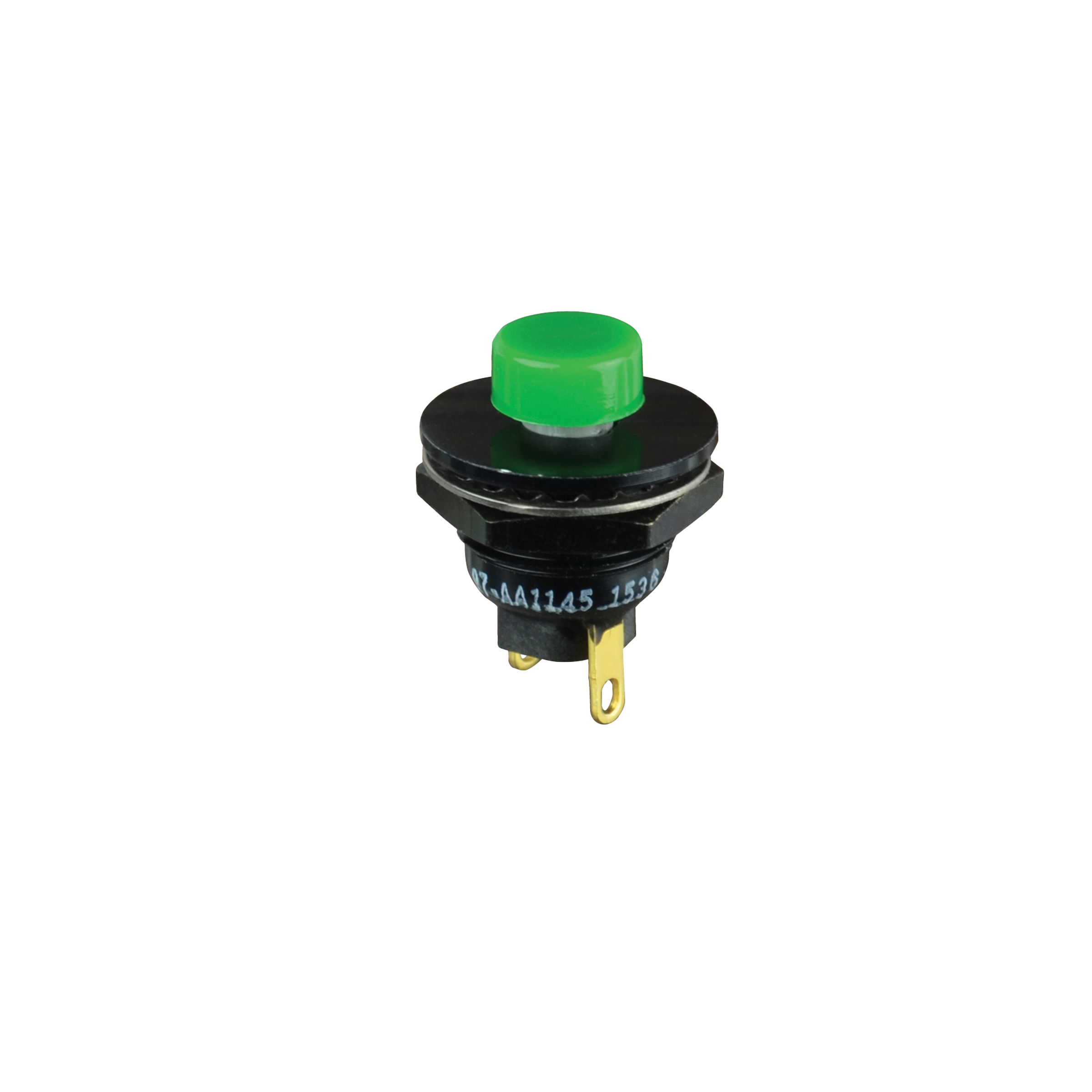

P7-AA1145
Specifications
Detailed Description
Introducing the P7-AA1145, a high-performance pushbutton switch from the P7 series. Featuring a sleek design with a green cap and black aluminum housing, this switch is not only visually appealing but also durable with a rating of 50,000 cycles. The SPST-NO contact configuration ensures reliable operation, while the gold-plated brass contacts guarantee optimal conductivity. With a current rating of 5A, voltage ratings of 115VAC and 28VDC, and an IP6K4S ingress protection rating, this switch is suitable for a wide range of applications. The Off-(On) switch function, along with a thermoplastic actuator and solder termination type, further enhance its functionality. Whether for industrial machinery, automotive systems, or consumer electronics, the P7-AA1145 is the ideal choice for demanding environments.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
