P7-D5A1112

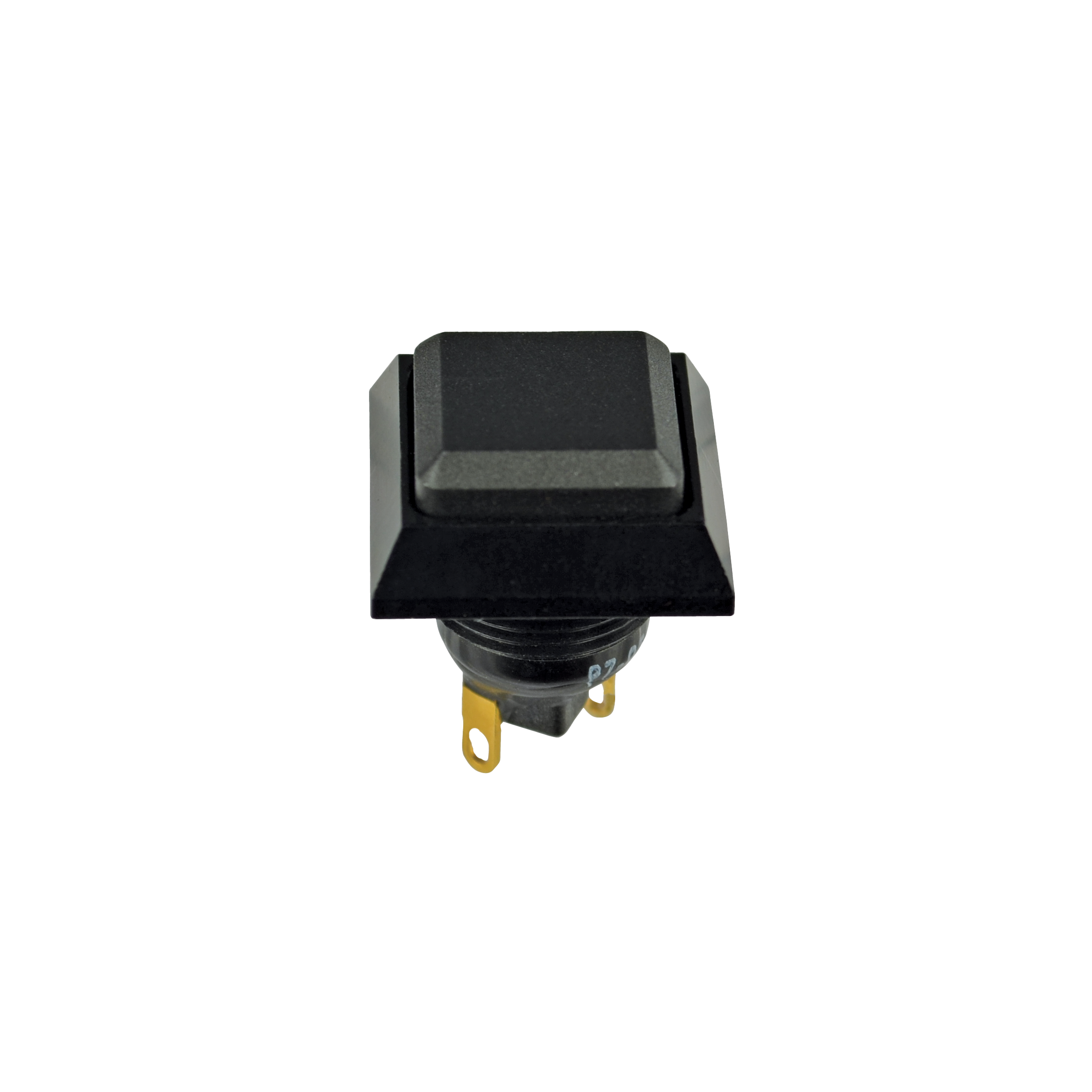

OTTP7_D5A1112
Heilind Number:OTTP7-D5A1112
Manufacturer:OTTO Controls
Manufacturer Number:P7-D5A1112
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-D5A1112
Series:P7-D
Cap Color:Black
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Raised Matte)
Actuator Shape:Square
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-D5A1112

Detailed Description

Introducing the P7-D5A1112, a durable and reliable Momentary Action Dome Pushbutton Switch designed for high-performance applications. Featuring a sleek Black cap and Silver case, this switch not only looks professional but also boasts an IP6K4S sealing rating for enhanced protection against dust and water ingress. The Button (Raised Matte) actuator, crafted from Thermoplastic, offers a comfortable and responsive user experience. With a 5A current rating, Gold-plated contacts, and SPST-NO configuration, it ensures efficient electrical conductivity. Ideal for panel mounting with solder termination, this switch is perfect for industrial and commercial settings. Rest assured of its quality, as it undergoes 50,000 cycles of durability testing. Operating flawlessly in temperatures ranging from -55°C to 85°C and accommodating voltages up to 115VAC/28VDC, the P7-D5A1112 is a versatile and essential component in any control system.
