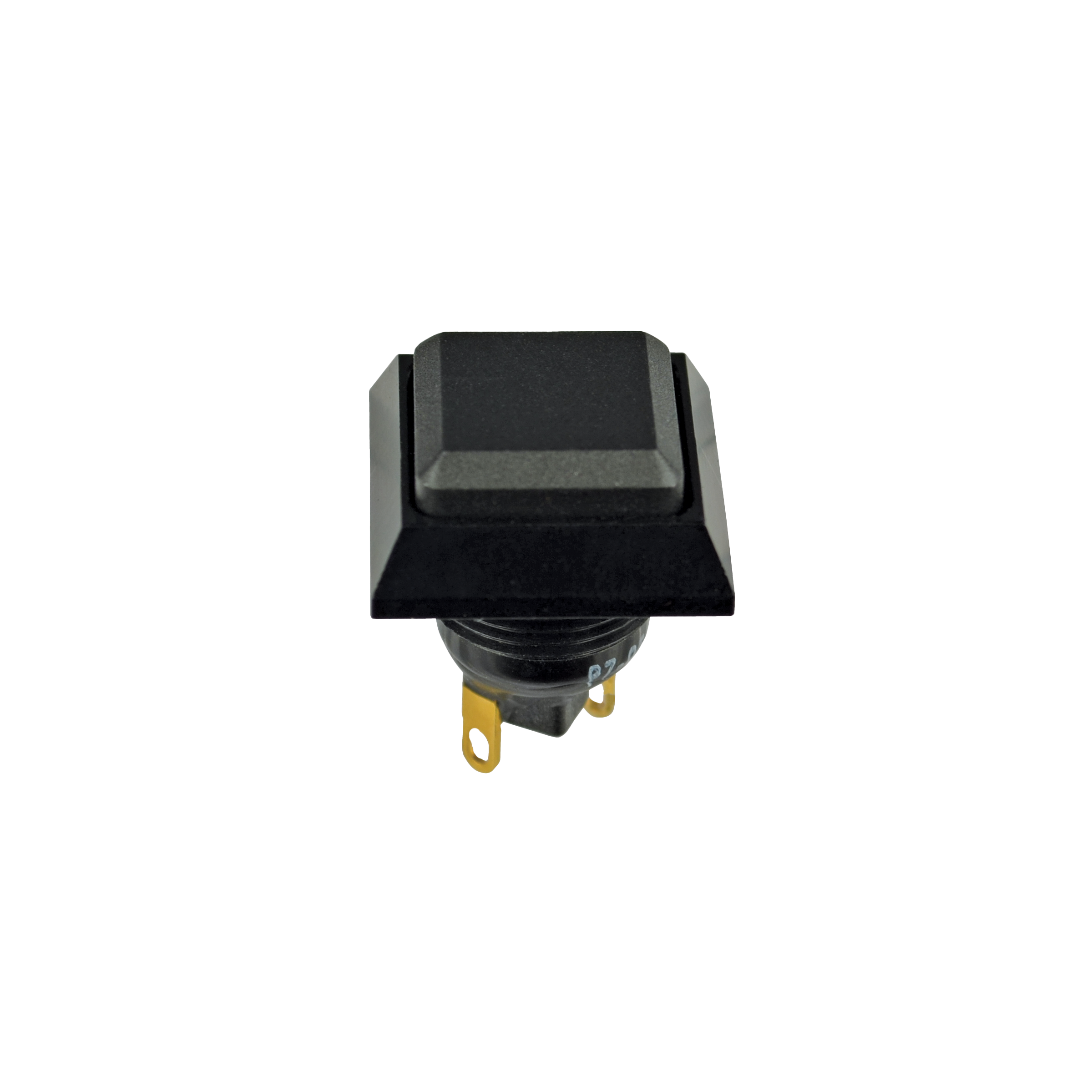

P7-D5A1212

OTTP7_D5A1212
Heilind Number:OTTP7-D5A1212
Manufacturer:OTTO Controls
Manufacturer Number:P7-D5A1212
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-D5A1212
Series:P7-D
Cap Color:Black
IP Rating:IP6K4S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Raised Matte)
Actuator Shape:Square
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-D5A1212

Detailed Description

Introducing the P7-D Series Subminiature Momentary Action Dome Pushbutton Switch, SKU P7-D5A1212. Engineered for precision performance, this switch features a sleek Black cap and durable Silver case, ensuring reliability in any application. With an IP6K4S rating, it guarantees protection against dust and water ingress. The Button (Raised Matte) actuator, crafted from high-quality Thermoplastic, offers a comfortable and responsive touch. Gold-plated Brass contacts and aluminum housing ensure optimal conductivity and longevity. Operating at 115VAC and 28VDC with a 5A current rating, it's suitable for diverse electrical systems. The SPST-NO configuration and Off-(On) switch function provide seamless control. Perfect for panel mounting, its solder termination type simplifies installation. With a durability rating of 50,000 cycles and an operating temperature range from -55°C to 85°C, this switch is a reliable choice for demanding environments. Explore the P7-D Series and elevate your switching solutions.
