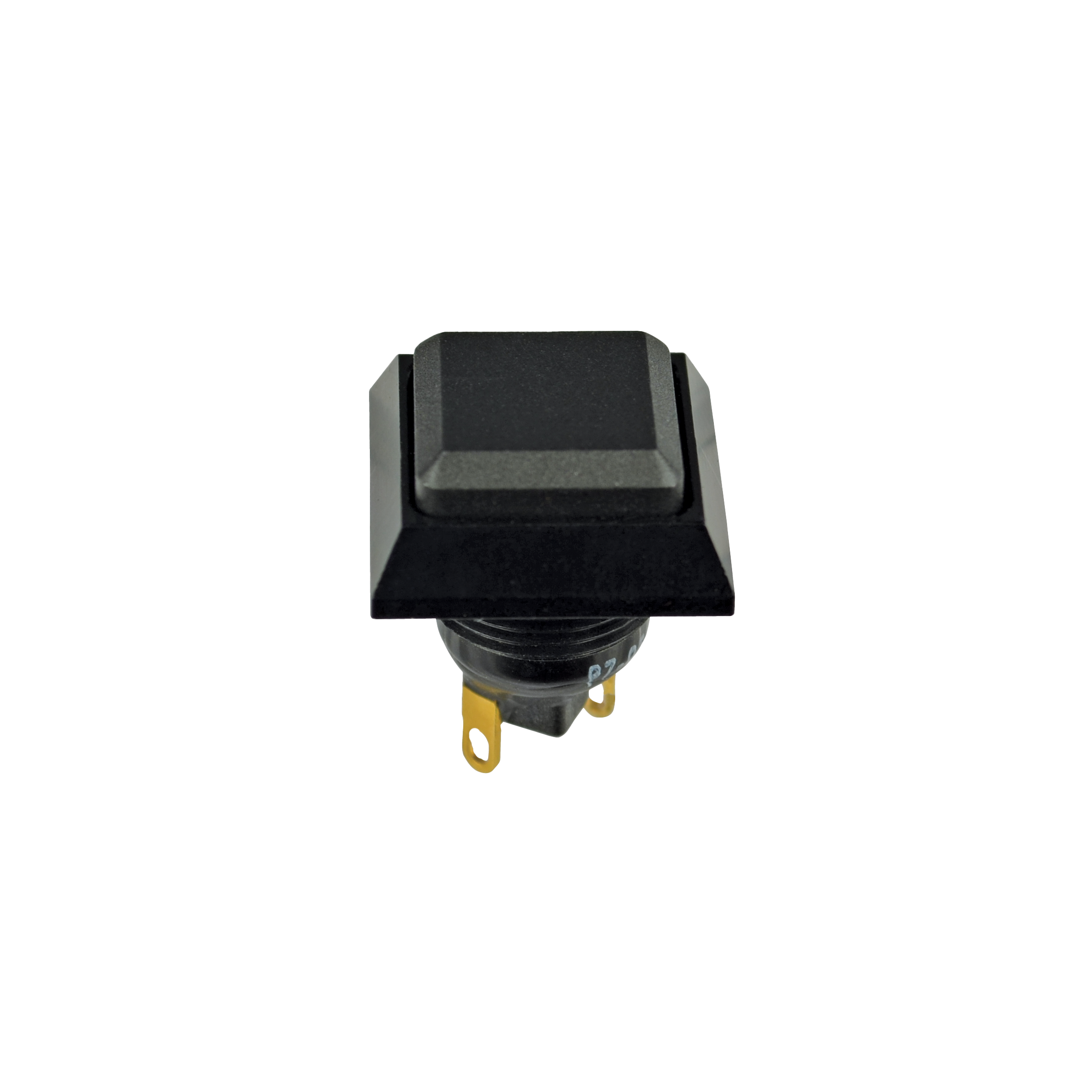

P7-D5A1229

OTTP7_D5A1229
Heilind Number:OTTP7-D5A1229
Manufacturer:OTTO Controls
Manufacturer Number:P7-D5A1229
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-D5A1229
Series:P7-D
Cap Color:White
IP Rating:IP6K4S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Raised Matte)
Actuator Shape:Square
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-D5A1229

Detailed Description

Introducing the P7-D5A1229, a high-performance push button switch designed for durability and reliability in demanding environments. With a sleek black aluminum case and a white raised matte button, this switch not only looks sleek but also offers IP6K4S sealing for protection against dust and moisture. Featuring a square thermoplastic actuator, brass contacts with gold plating, and a SPST-NO contact configuration, it ensures precise and efficient operation. Ideal for panel mounting, it has a current rating of 5A and can handle up to 115VAC or 28VDC. With a 50,000 cycle durability rating and an operating temperature range from -55°C to 85°C, this switch is built to last. Perfect for industrial, automotive, or aerospace applications, the P7-D5A1229 is the ultimate choice for reliable momentary action control.
