P7-D5B1123

OTTP7_D5B1123
Heilind Number:OTTP7-D5B1123
Manufacturer:OTTO Controls
Manufacturer Number:P7-D5B1123
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

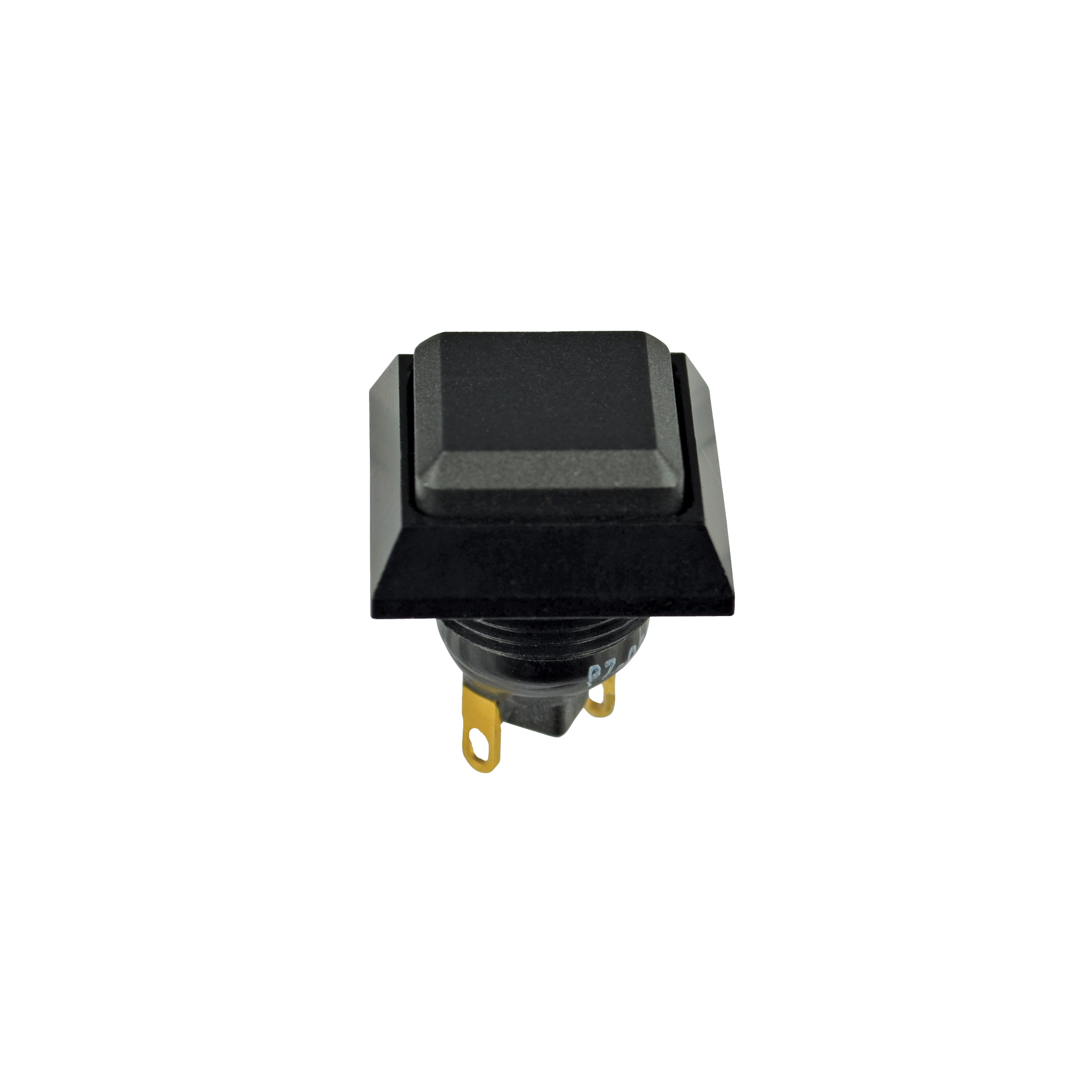

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-D5B1123
Series:P7-D
Cap Color:Orange
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Raised Matte)
Actuator Shape:Square
Current Rating:5 A
Mounting Style:Panel Mount
Actuator Length:.18 in
Contact Plating:Gold
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Thermoplastic
Durability Rating (Cycles):50,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP7-D5B1123

Detailed Description

Experience precision control with our Subminiature Momentary Action Dome Pushbutton Switch, SKU P7-D5B1123. Featuring a sleek black aluminum case with a vibrant orange button, this switch adds a pop of color to any panel. Designed for reliability, it boasts an IP6K8S rating for dust and water resistance, making it ideal for industrial use. The gold-plated brass contacts ensure excellent conductivity, while the thermoplastic actuator offers durability. With a 5A current rating and SPST-NO contact configuration, it delivers seamless performance. Panel mountable for easy installation, this switch is perfect for applications requiring a tactile, square-shaped button. Operating smoothly between -55°C to 85°C, it guarantees consistent functionality even in extreme conditions. Trust in the P7-D series for quality and performance.
