P7-D5B1126

OTTP7_D5B1126
Heilind Number:OTTP7-D5B1126
Manufacturer:OTTO Controls
Manufacturer Number:P7-D5B1126
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

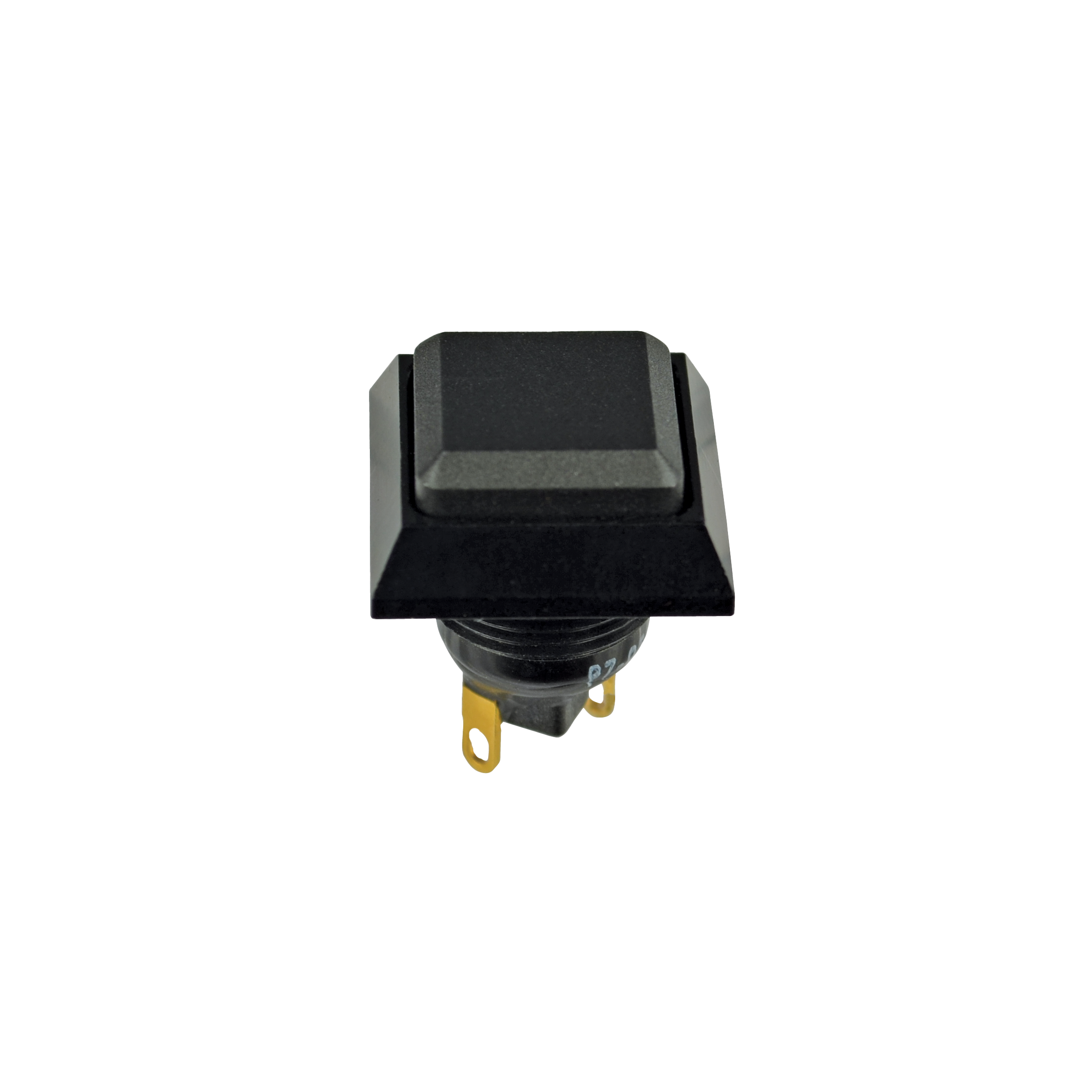

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-D5B1126
Series:P7-D
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (Raised Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Square
Cap Color:Blue
Actuator Length:.18 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-D5B1126

Detailed Description

Introducing the P7-D5B1126, a durable and reliable Subminiature Momentary Action Dome Pushbutton Switch from our P7-D series. Featuring a sleek design with a Blue Button and Black Aluminum housing, this switch is perfect for panel mounting applications. Its IP6K8S sealing ensures protection against dust and water ingress, making it suitable for various environments. The Button (Raised Matte) actuator, along with a Square shape, offers comfortable and precise operation. With a current rating of 5A and contact plating in Gold, it guarantees efficient performance and longevity with a durability rating of 50,000 cycles. Operating at temperatures ranging from -55°C to 85°C, and with voltage ratings of 115VAC and 28VDC, this switch is highly versatile. Trust in its SPST-NO contact configuration for reliable Off-(On) switching. Perfect for applications requiring a sealed, non-illuminated push button switch with high performance standards.
