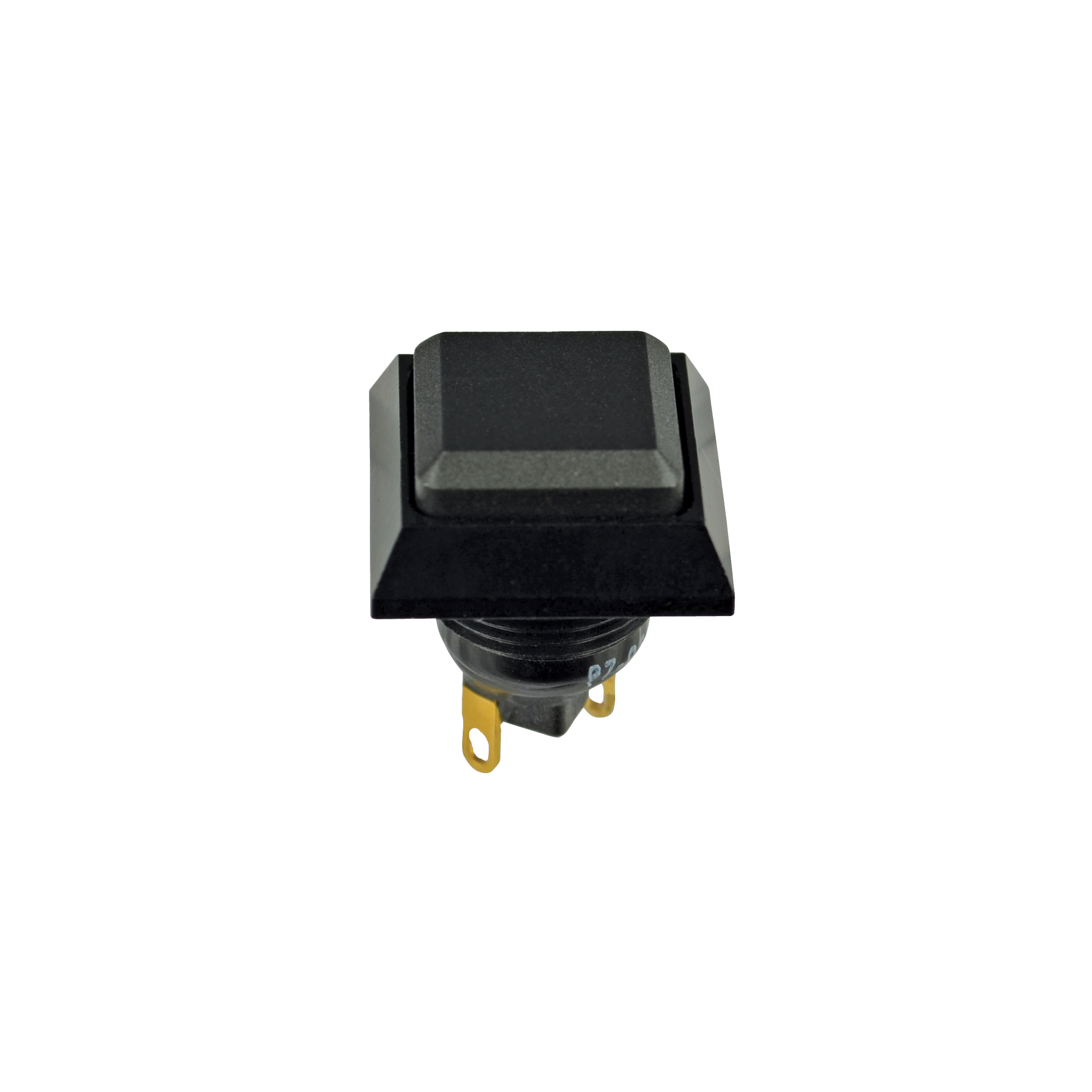

P7-D5B6121

OTTP7_D5B6121
Heilind Number:OTTP7-D5B6121
Manufacturer:OTTO Controls
Manufacturer Number:P7-D5B6121
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Subminiature Momentary Action Dome Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P7-D5B6121
Series:P7-D
Housing Material:Aluminum
Contact Material:Brass
Contact Plating:Gold
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPDT
Actuator Type:Button (Raised Matte)
Case Color:Black
Actuator Material:Thermoplastic
Termination Type:Solder
Actuator Shape:Square
Cap Color:Red
Actuator Length:.18 in
Switch Function:ON-ON
Type:Sealed
Durability Rating (Cycles):50,000 Cycles
Mounting Style:Panel Mount
Current Rating:5 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP7-D5B6121

Detailed Description

The P7-D5B6121 is a high-performance pushbutton switch designed for demanding industrial applications. Featuring a sleek black case with a vibrant red button, this switch stands out both visually and functionally. With an IP6K8S rating, it offers reliable protection against dust and water ingress. The raised matte button provides tactile feedback, making it easy to operate. Gold-plated brass contacts ensure excellent conductivity and durability, with a rating of 50,000 cycles. The SPDT contact configuration allows for versatile switching options, while the 5A current rating and 115VAC/28VDC voltage ratings make it suitable for a wide range of systems. Panel mount installation and solder termination ensure secure placement. Whether used in automotive, aerospace, or industrial machinery, the P7-D series pushbutton switch delivers exceptional performance in any environment.
