| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-141411A |
| Series: | P8 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Gold |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flat) |
| Case Color: | Black |
| Actuator Material: | Thermoplastic |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Red |
| Actuator Length: | .25 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-141411A |
P8-141411A
Specifications
Detailed Description

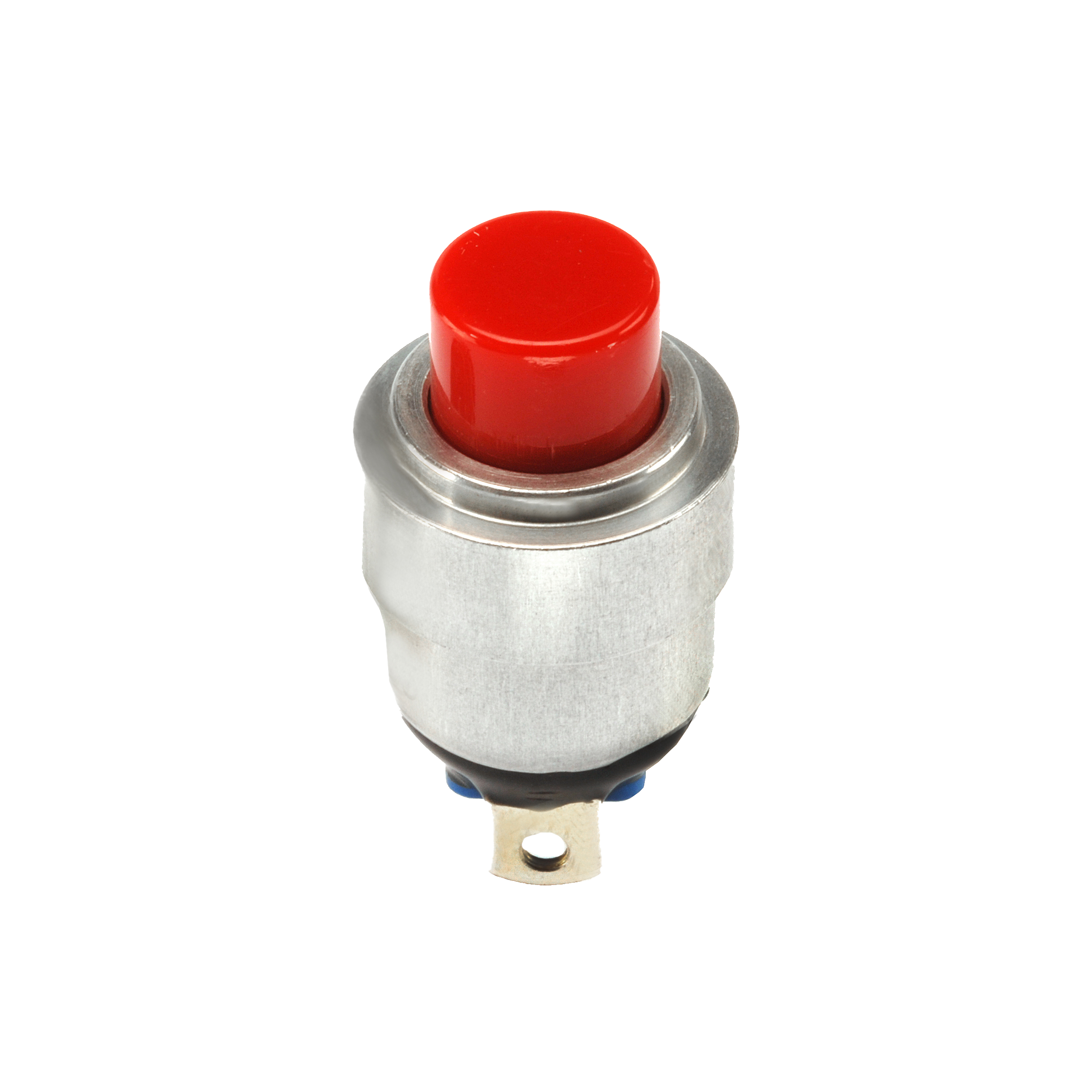

Introducing the P8 Series Subminiature Momentary Action Sealed Pushbutton Switch ( P8-141411A). Designed for reliability and durability, this switch features a red flat button actuator in a round shape, perfect for easy and comfortable operation. With an IP6K4S rating, it offers excellent protection against dust and water ingress, making it suitable for a variety of applications. The switch has a high current rating of 10A, with gold-plated contacts for optimal conductivity. Its aluminum housing and thermoplastic actuator ensure longevity even in harsh environments. Ideal for panel mounting, it guarantees secure and efficient usage. Operating between -55°C to 85°C, and with a lifespan of 100,000 cycles, this switch is a dependable choice for demanding industrial or commercial settings.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
