| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A111213 |
| Series: | P8 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Flat) |
| Case Color: | Silver |
| Actuator Material: | Aluminum |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .079 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-A111213 |

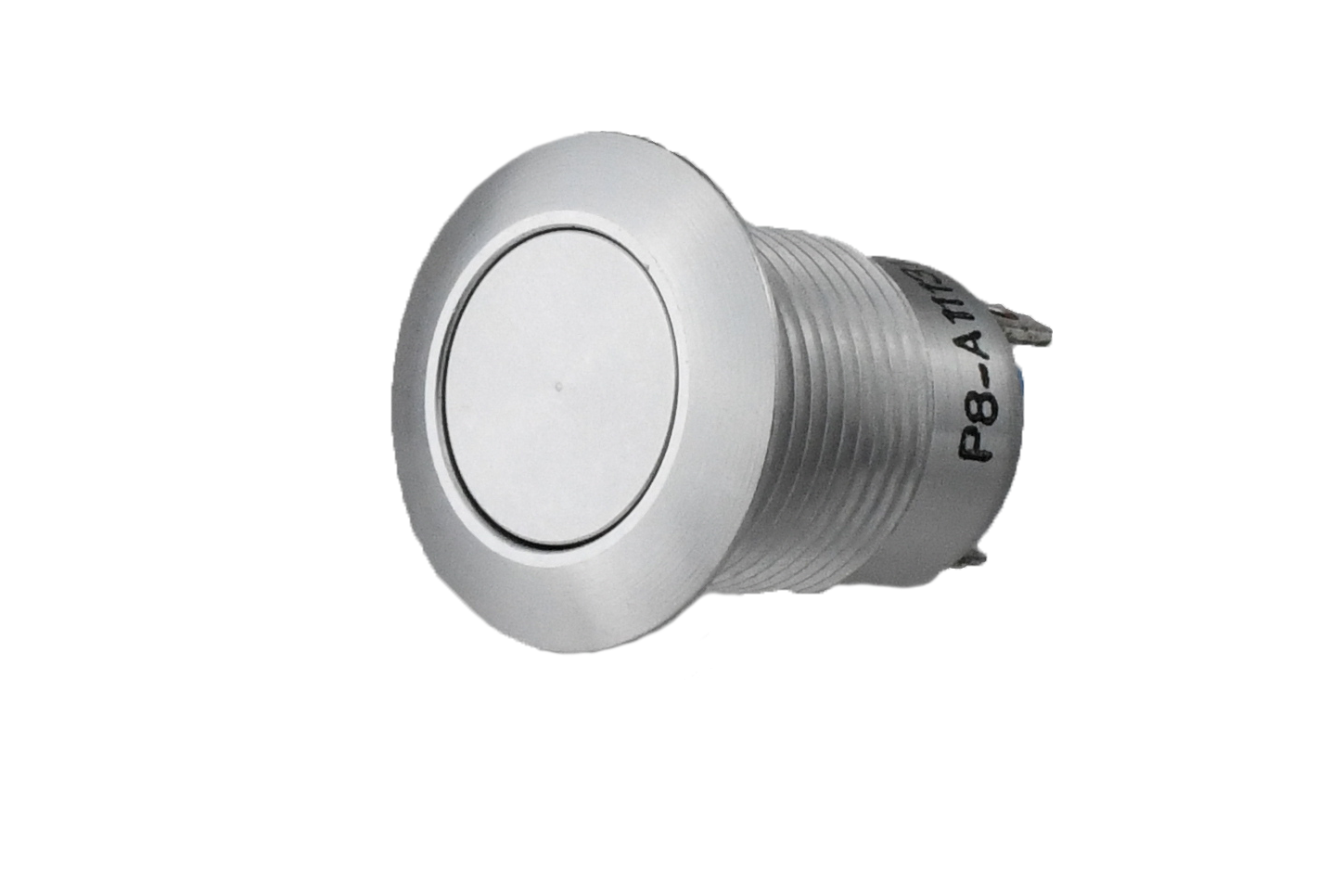

P8-A111213
Specifications
Detailed Description
Introducing the P8 Series Vandal Resistant Pushbutton Switch, a durable and reliable solution for your panel mounting needs. With a sleek silver case and low profile flat button actuator, this switch offers a modern and sophisticated design. Featuring a high IP6K4S sealing rating, it is protected against dust and water ingress, making it ideal for outdoor or industrial applications. The SPST-NO contact configuration, along with a 10A current rating, ensures efficient performance. Constructed with high-quality aluminum and brass materials, this switch guarantees longevity, with a durability rating of 100,000 cycles. Whether in harsh environments or everyday use, trust the P8 Series for seamless operation.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
