| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A111312 |
| Series: | P8 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (High Profile Curved) |
| Case Color: | Silver |
| Actuator Material: | Aluminum |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .25 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-A111312 |
P8-A111312
Specifications
Detailed Description

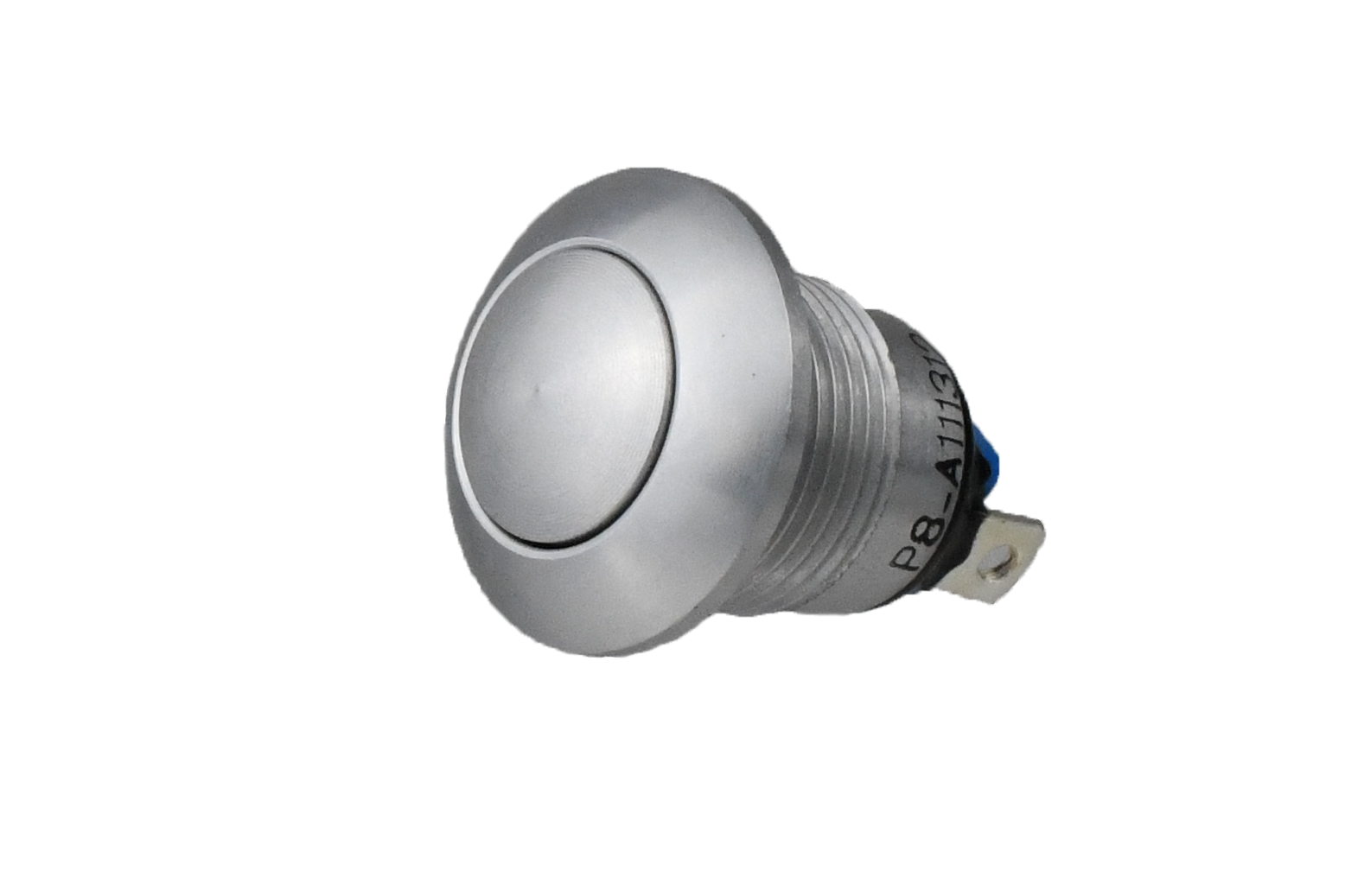

Introducing the Vandal Resistant Pushbutton Switch, part of the P8 series. With a sleek Silver cap and case, this switch is not only visually appealing but also durable with an IP6K8S rating. The High Profile Curved Button actuator, made of Aluminum, ensures comfortable and reliable operation. Featuring a SPST-NO contact configuration with Silver-plated Brass contacts, it guarantees efficient electrical connection. Ideal for panel mounting, this switch is sealed for added protection and has a high durability rating of 100,000 cycles. With a current rating of 10A and voltage ratings of 115VAC and 28VDC, it is suitable for a wide range of applications. Operating smoothly in temperatures ranging from -55°C to 85°C, this pushbutton switch is a dependable choice for industrial use.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
