| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A111322 |
| Series: | P8 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (High Profile Curved) |
| Case Color: | Silver |
| Actuator Material: | Aluminum |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .25 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-A111322 |

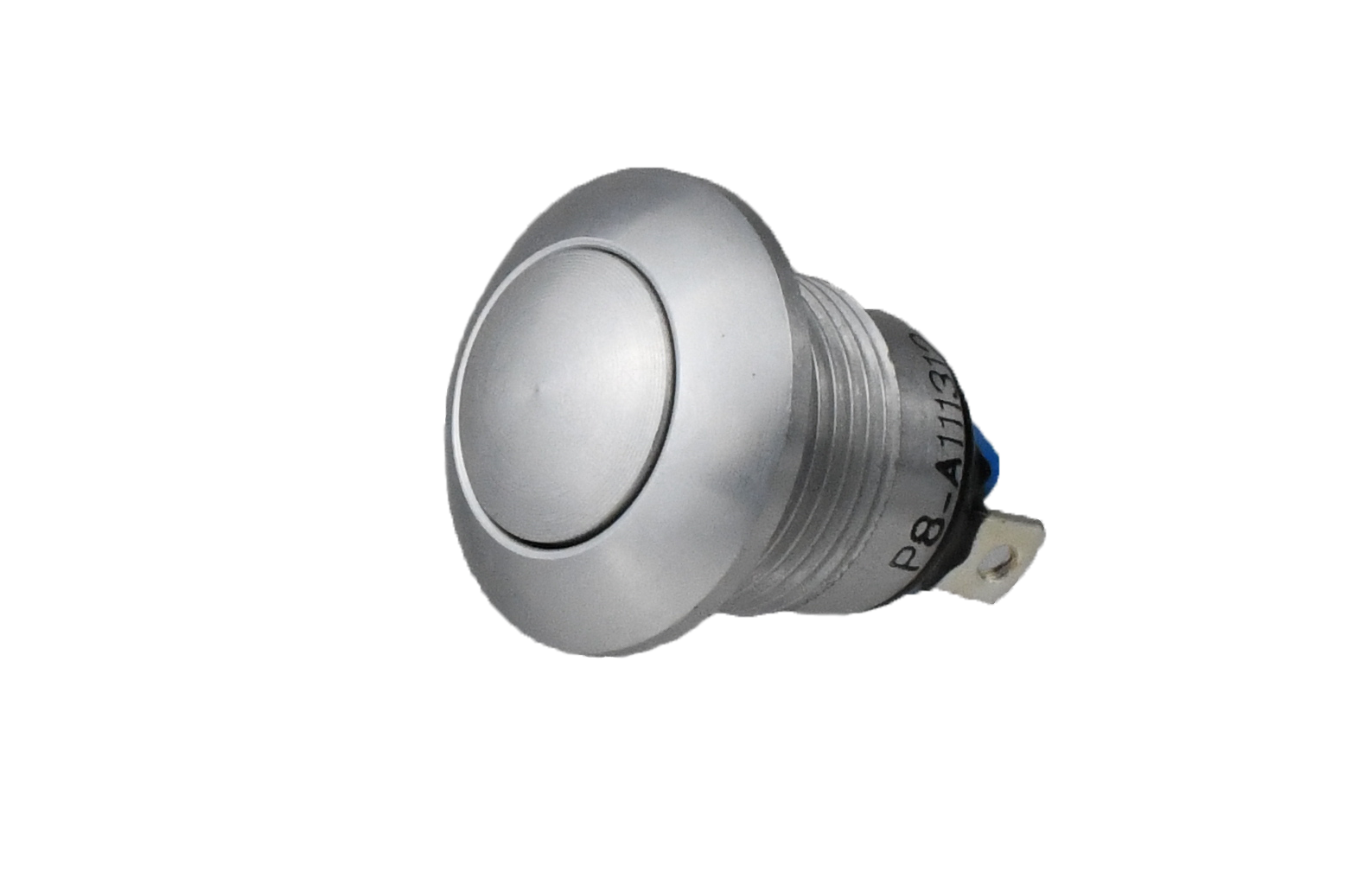

P8-A111322
Specifications
Detailed Description
Introducing the P8-A111322, a high-performance Vandal Resistant Pushbutton Switch in sleek silver design. This durable switch, part of the P8 series, features a robust aluminum housing and IP6K8S sealing for reliable performance in harsh environments. With a current rating of 10A and contact plating of silver, it ensures efficient conductivity. The SPST-NO contact configuration and Off-(On) switch function offer precise control. Perfect for panel mounting, it guarantees easy installation. With a lifespan of 100,000 cycles and a wide operating temperature range from -55°C to 85°C, this switch is built for longevity and versatility. Whether in industrial settings or outdoor applications, the P8-A111322 delivers uncompromising quality and performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
