| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A131215 |
| Series: | P8 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flush) |
| Case Color: | Silver |
| Actuator Material: | Aluminum |
| Termination Type: | Quick Connect |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .047 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-A131215 |

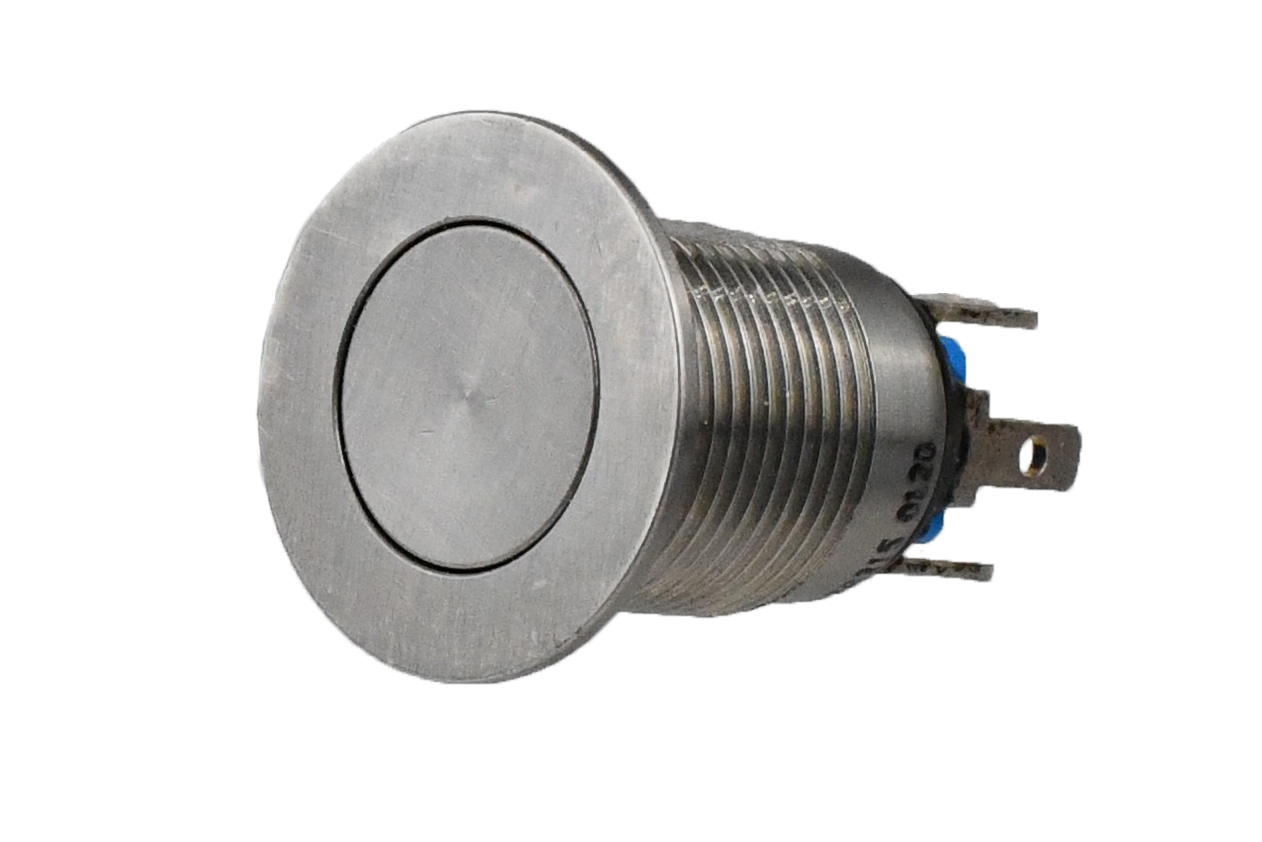

P8-A131215
Specifications
Detailed Description
Introducing the P8 Series Vandal Resistant Pushbutton Switch, featuring a sleek silver design perfect for industrial applications. With an IP6K4S rating, this switch ensures durability in harsh environments. The button, flush actuator, and round shape provide easy operation. Boasting a 10A current rating, it offers reliable performance. Panel mount installation is convenient, while quick connect termination simplifies setup. The switch guarantees longevity with a 100,000 cycle durability rating. Operating between -55°C to 85°C, it's suitable for varied conditions. With SPST-NO contact configuration and 115VAC/28VDC voltage ratings, it meets versatile needs. Upgrade your control systems with this high-quality, sealed pushbutton switch.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
