P8-A131515

OTTP8_A131515
Heilind Number:OTTP8-A131515
Manufacturer:OTTO Controls
Manufacturer Number:P8-A131515
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

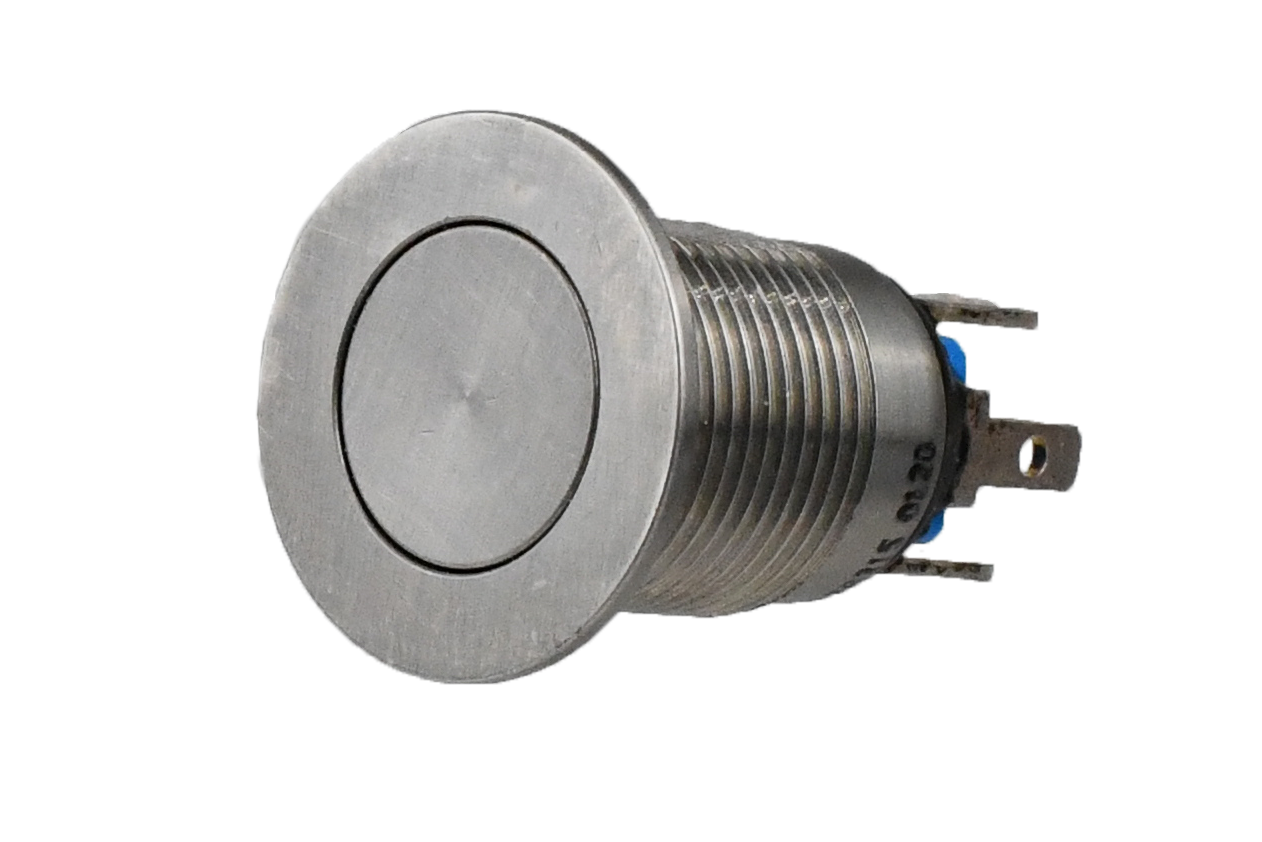

Vandal Resistant Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-A131515
Series:P8
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Flush)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.047 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Quick Connect
Actuator Material:Aluminum
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP8-A131515

Detailed Description

Introducing the Vandal Resistant Pushbutton Switch, a durable and reliable solution for your control panel needs. With a sleek silver design and IP6K8S rating, it ensures protection against dust and water ingress, making it ideal for outdoor and industrial applications. The flush round button actuator, constructed from high-quality aluminum, provides a comfortable and responsive user experience. Featuring a SPST-NO contact configuration and a current rating of 10A, this switch guarantees efficient power control. With a wide operating temperature range from -55°C to 85°C and a lifespan of 100,000 cycles, it offers long-lasting performance even in harsh environments. Panel mountable with quick connect termination, installation is hassle-free. Trust in the P8 series for superior quality and functionality in push button switches.
