| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A141311 |
| Series: | P8 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (High Profile Flat) |
| Case Color: | Black |
| Actuator Material: | Aluminum |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .158 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-A141311 |

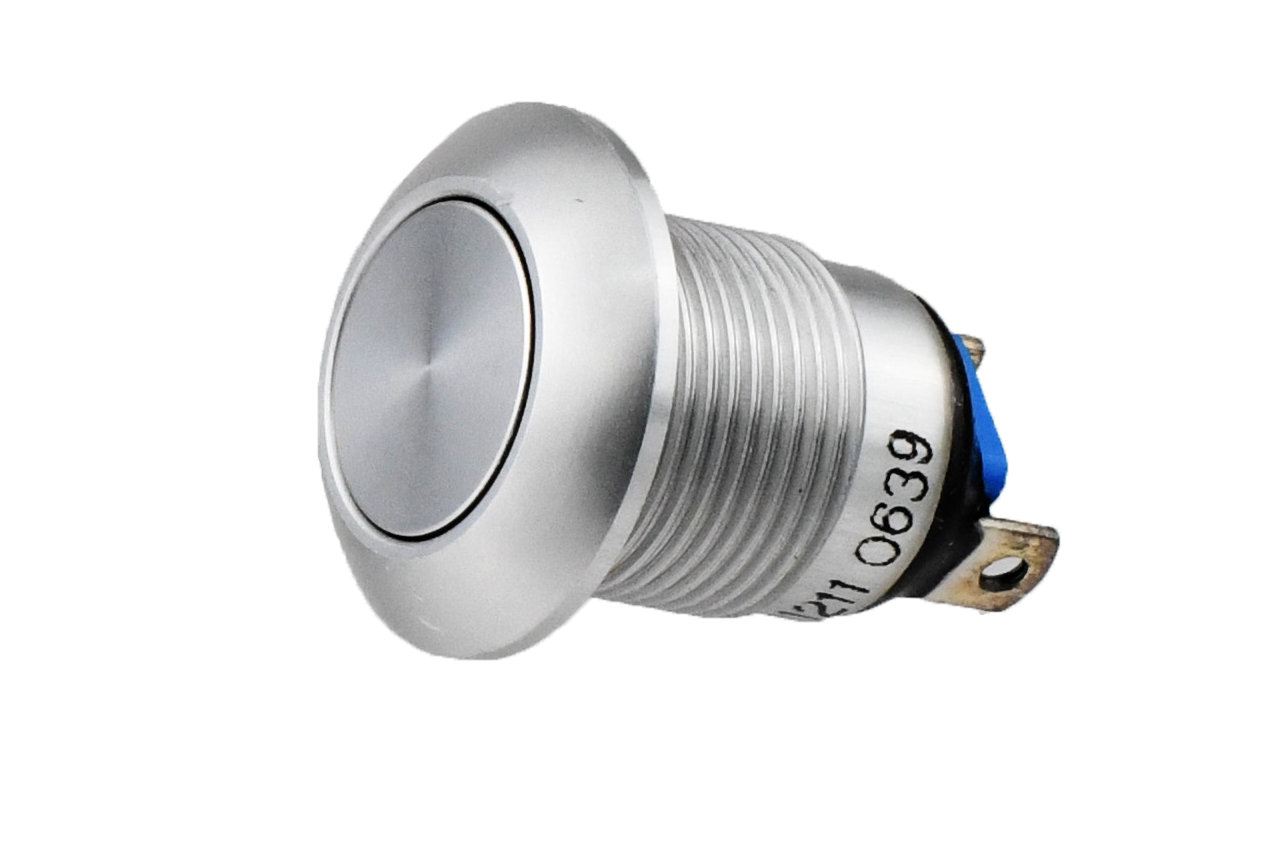

P8-A141311
Specifications
Detailed Description
Introducing the P8-A141311, a rugged and reliable Vandal Resistant Pushbutton Switch from the P8 series. Designed for durability and performance, this switch features a high-profile flat button actuator with a round shape, offering a comfortable and responsive user experience. Its black aluminum housing and IP6K8S rated sealing ensure protection against harsh environments, while the SPST-NO contact configuration guarantees reliable operation. With a 10A current rating and 100,000 cycle durability, this switch is ideal for demanding applications. Whether for industrial machinery or outdoor equipment, the P8-A141311 is the perfect choice for dependable switching solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
