P8-A141515

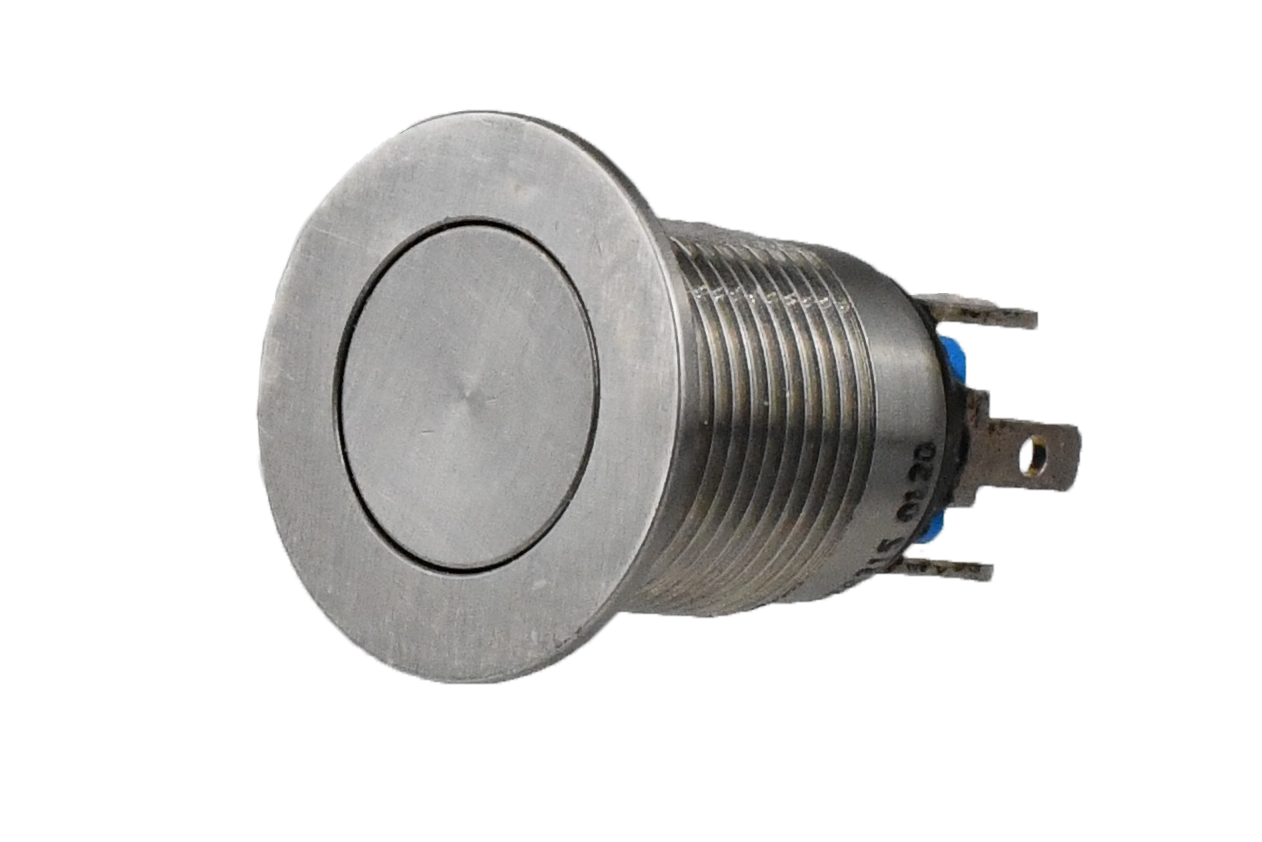

OTTP8_A141515
Heilind Number:OTTP8-A141515
Manufacturer:OTTO Controls
Manufacturer Number:P8-A141515
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

Vandal Resistant Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-A141515
Series:P8
Cap Color:Black
IP Rating:IP6K8S
Case Color:Black
Illumination:Not Illuminated
Actuator Type:Button (Flush)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.047 in
Contact Plating:Silver
Switch Function:OFF-ON
Contact Material:Brass
Housing Material:Aluminum
Type:Sealed
Termination Type:Solder
Actuator Material:Aluminum
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP8-A141515

Detailed Description

Introducing the P8 Series Vandal Resistant Pushbutton Switch with SKU P8-A141515. Designed for durability in harsh environments, this switch features a sleek black aluminum housing and a flush-mounted round button actuator, ensuring both ruggedness and aesthetics. With an IP6K8S rating, it offers reliable protection against dust and water ingress, making it ideal for outdoor and industrial applications. The SPST-NO contact configuration and 10A current rating provide high-performance functionality. Whether used in machinery, control panels, or security systems, this panel-mount switch guarantees long-lasting operation with a 100,000-cycle durability rating. Suitable for both AC and DC circuits, it offers versatility in voltage ratings. Solder termination ensures secure installation. Operating smoothly in temperatures ranging from -55°C to 85°C, the P8 Series Pushbutton Switch is a dependable choice for demanding environments.
