| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A151313 |
| Series: | P8 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Flat) |
| Case Color: | Black |
| Actuator Material: | Aluminum |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Black |
| Actuator Length: | .079 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-A151313 |

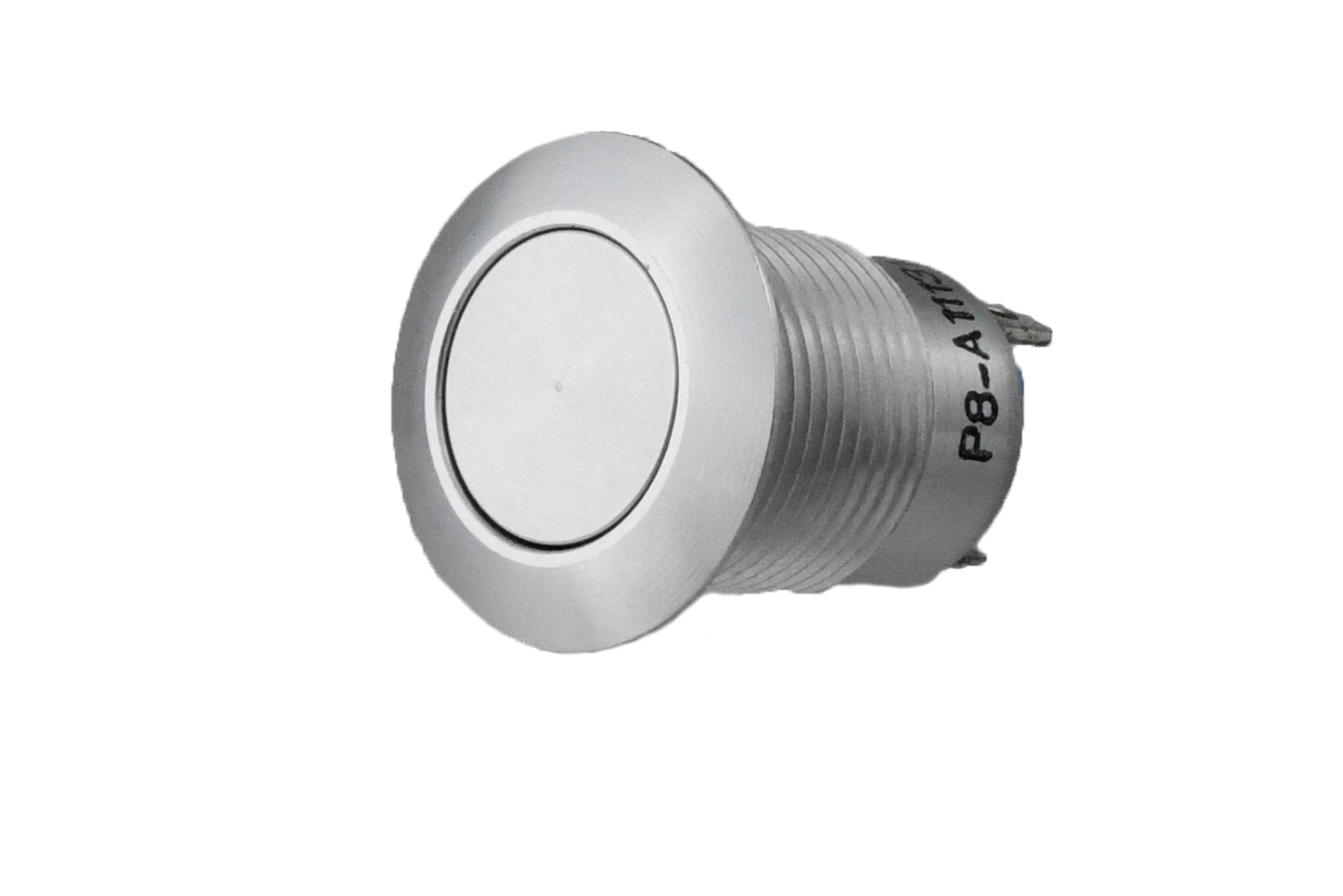

P8-A151313
Specifications
Detailed Description
Introducing the P8 Series Vandal Resistant Pushbutton Switch, featuring a sleek black design with a durable aluminum housing and IP6K8S sealing for reliable performance in harsh environments. This panel-mount switch, with a low-profile flat button actuator, offers a smooth and responsive interface. Operating at 115 VAC and 28 VDC, it ensures versatility in power supply. The SPST-NO contact configuration, with silver-plated brass contacts, guarantees high conductivity and a long lifespan of up to 100,000 cycles. Ideal for industrial applications, this switch is rated for temperatures ranging from -55°C to 85°C, making it suitable for use in a variety of settings. Trust in the P8 Series for secure and efficient control in your operations.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
