| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A311322 |
| Series: | P8 |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (High Profile Curved) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .25 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Aluminum |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-A311322 |
P8-A311322
Specifications
Detailed Description

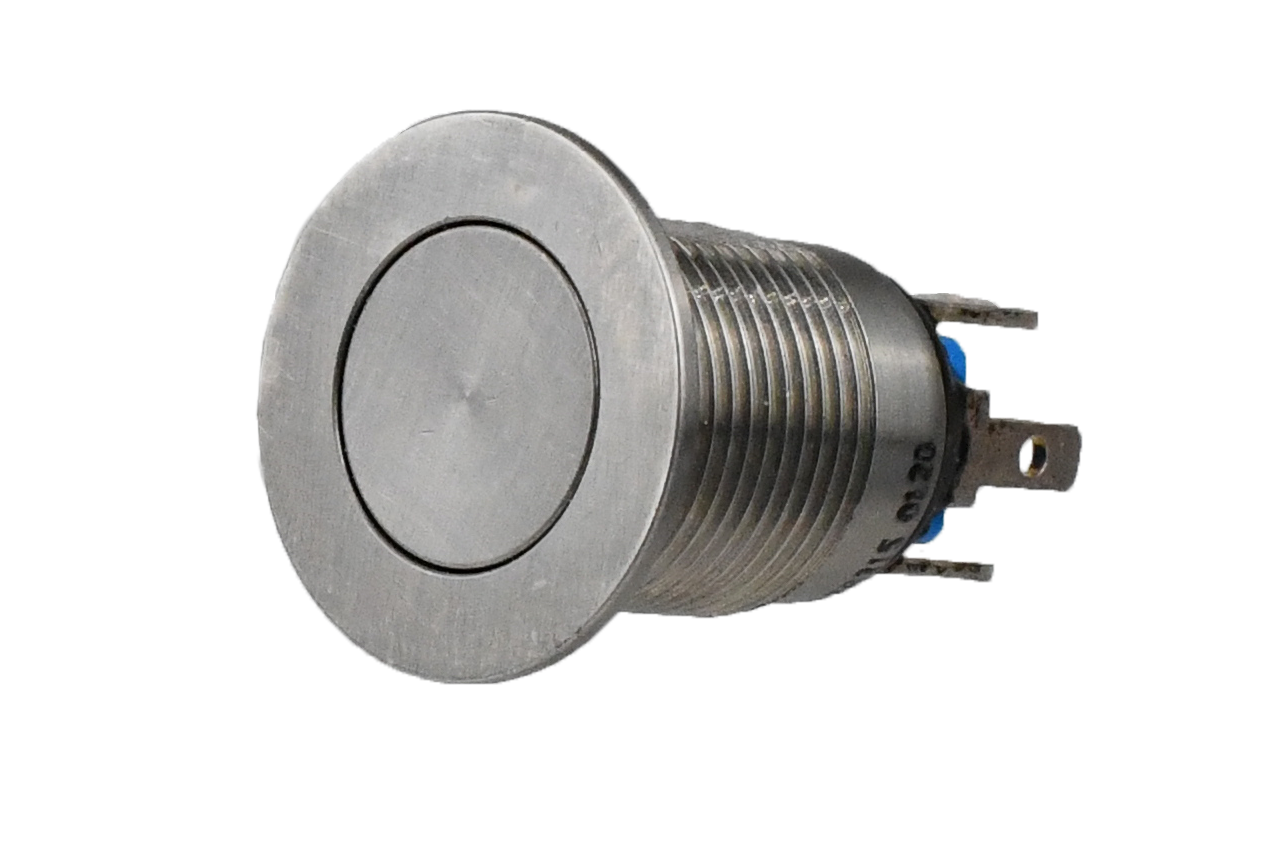

Introducing the P8-A311322 Vandal Resistant Pushbutton Switch, a rugged and reliable solution for high-demand environments. Featuring a sleek silver design with an IP6K8S rating for dust and water resistance, this switch is built to last. The button, with its high profile curved actuator, offers easy and precise operation. With a current rating of 10 A and SPST-NO contact configuration, it ensures efficient power control. The aluminum housing and brass contact material guarantee durability, with a lifespan of 100,000 cycles. Whether used in industrial machinery or outdoor applications, this panel-mount switch performs flawlessly in temperatures ranging from -55 °C to 85 °C. Trust in the P8 series for quality and longevity in your switching needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
