| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A311515 |
| Series: | P8 |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Flush) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .047 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Aluminum |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-A311515 |
P8-A311515
Specifications
Detailed Description

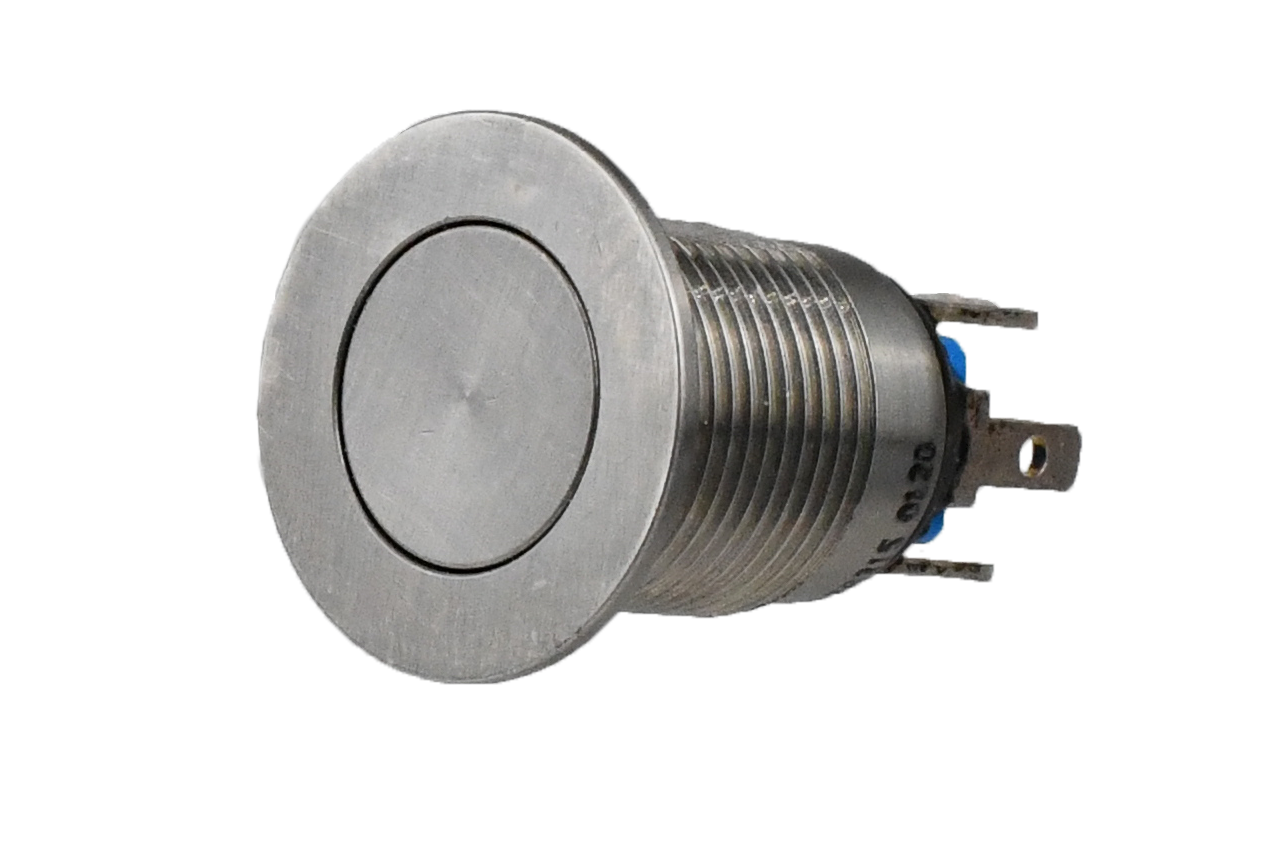

The P8-A311515 Vandal Resistant Pushbutton Switch in sleek Silver, part of the P8 series, boasts IP6K8S sealing for reliable performance even in harsh environments. Featuring a non-illuminated design with a durable Aluminum housing, this button switch offers a current rating of 10A and operates on Off-(On) switch function. With a contact configuration of SPST-NO and contact material of Brass with Silver plating, it ensures optimal conductivity. The panel mount installation with solder termination makes it easy to integrate. Rated for 100,000 cycles, it guarantees long-lasting use with a wide temperature range from -55°C to 85°C. Ideal for various applications requiring a robust and secure pushbutton switch.
