| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A321314 |
| Series: | P8 |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Low Profile Curved) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .12 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Screw |
| Actuator Material: | Aluminum |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-A321314 |

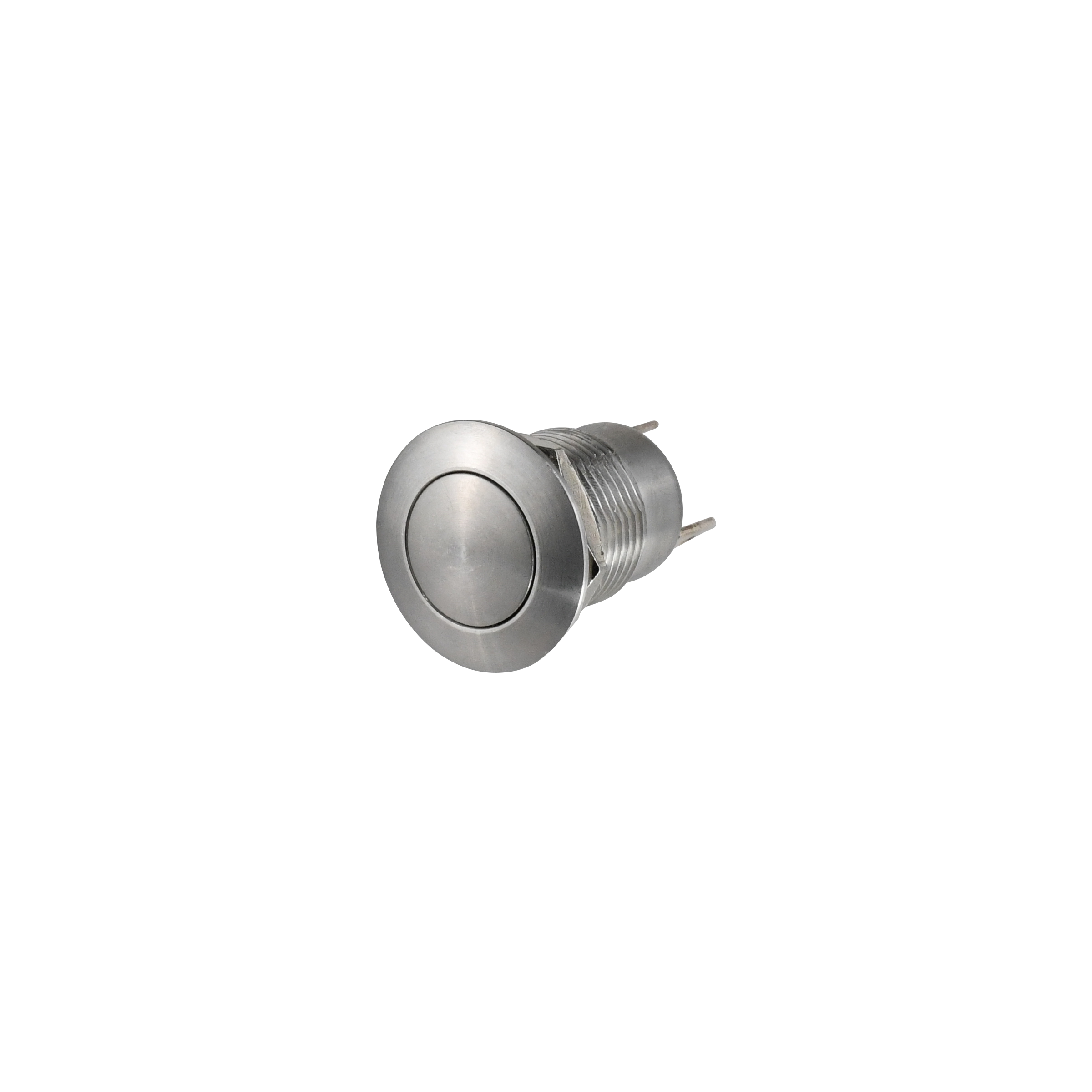

P8-A321314
Specifications
Detailed Description
Introducing the P8A321314, a rugged and reliable Vandal Resistant Pushbutton Switch designed for tough environments. Featuring a sleek silver design with a Low Profile Curved Button actuator, this switch is perfect for panel mounting applications. With an IP6K8S rating, it offers superior protection against dust and water ingress. The SPST-NO contact configuration ensures efficient operation, while the durable aluminum housing and brass contact material guarantee longevity, with a durability rating of 100,000 cycles. Operating at temperatures ranging from -55°C to 85°C and with a voltage rating of 115VAC or 28VDC, this switch is suitable for a wide range of industrial and commercial settings. Upgrade to the P8 series for unmatched performance and reliability.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
