| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A331213 |
| Series: | P8 |
| Cap Color: | Silver |
| IP Rating: | IP6K4S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Low Profile Flat) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .079 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Quick Connect |
| Actuator Material: | Aluminum |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-A331213 |

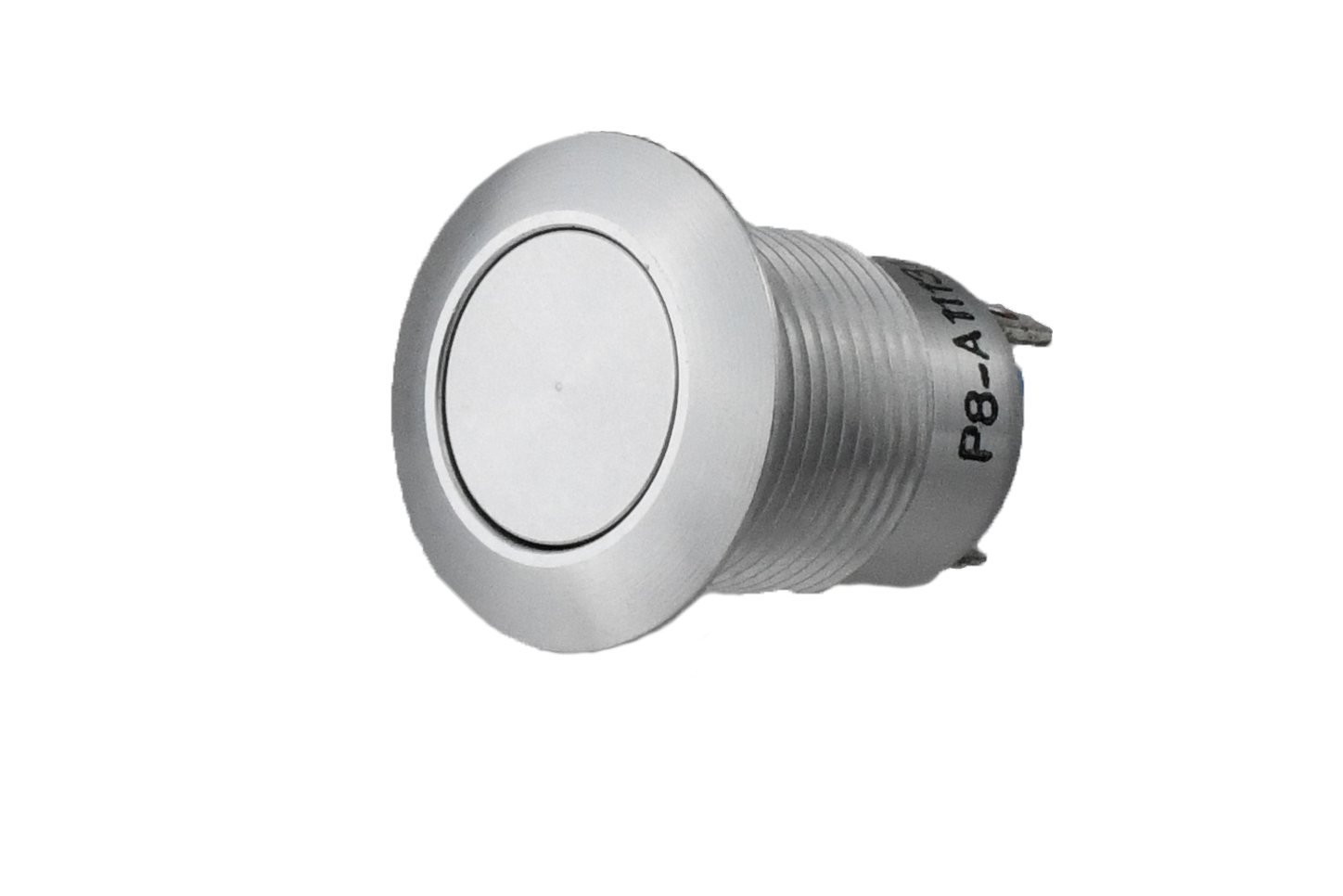

P8-A331213
Specifications
Detailed Description
Introducing the P8-A331213, a rugged and reliable Vandal Resistant Pushbutton Switch designed for durability in demanding environments. Part of the P8 series, this switch features a sleek Silver cap and case, with an IP6K4S rating ensuring resistance to dust and water ingress. The Button actuator, made of low profile Flat Aluminum, offers a comfortable and responsive interface. With a current rating of 10A, contact plating in Silver, and contact material in Brass, this switch guarantees efficient and long-lasting performance. Its SPST-NO contact configuration and Off-(On) switch function make it ideal for various applications. Whether operating at a maximum temperature of 85°C or enduring extreme cold down to -55°C, the P8-A331213 excels in reliability. Suitable for both panel mounting and quick connect terminations, this switch is versatile and easy to install. Trust in its 100,000 cycle durability rating and wide voltage compatibility (115 VAC, 28 VDC) for seamless operation. Upgrade your control systems with the ultimate in pushbutton technology.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
