| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A531215 |
| Series: | P8 |
| Housing Material: | Aluminum |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Flush) |
| Case Color: | Silver |
| Actuator Material: | Aluminum |
| Termination Type: | Quick Connect |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .047 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-A531215 |
P8-A531215
Specifications
Detailed Description

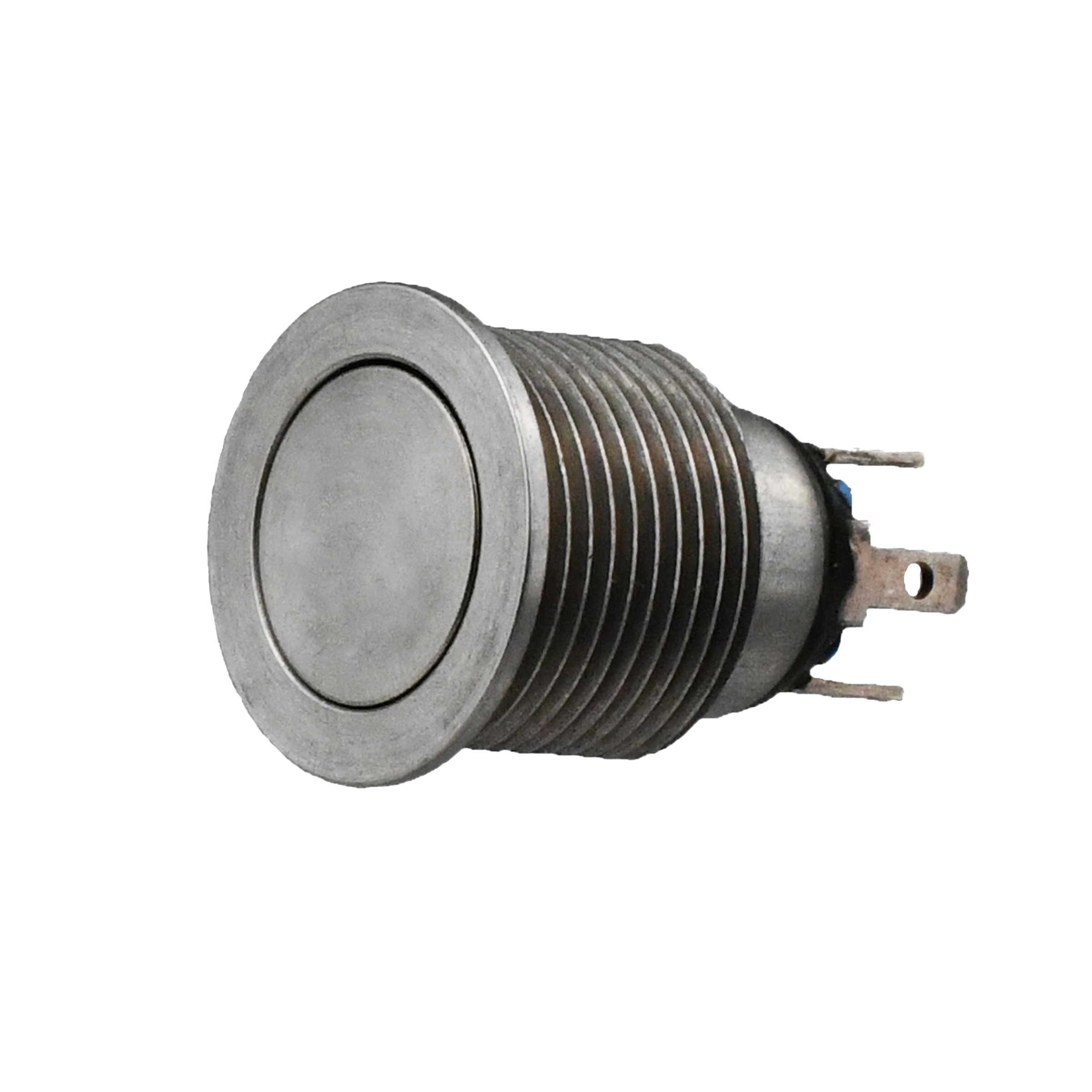

Introducing the P8-A531215, a robust and reliable Vandal Resistant Pushbutton Switch designed for demanding environments. With a sleek Silver cap and case, this switch offers both durability and style. Featuring an IP6K4S rating, it ensures protection against water and dust ingress. The Button (Flush) actuator, made of high-quality Aluminum, guarantees smooth operation. Boasting a 10A current rating and SPST-NO contact configuration, it is suitable for various applications. Panel mountable with Quick Connect termination, installation is convenient. With a lifespan of 100,000 cycles and operating temperatures ranging from -55°C to 85°C, this switch excels in performance and longevity. Ideal for industrial settings, the P8-A531215 is a standout choice in the Push Button Switches category.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
