| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-A531312 |
| Series: | P8 |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (High Profile Curved) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .25 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Contact Material: | Brass |
| Housing Material: | Aluminum |
| Type: | Sealed |
| Termination Type: | Quick Connect |
| Actuator Material: | Aluminum |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-A531312 |

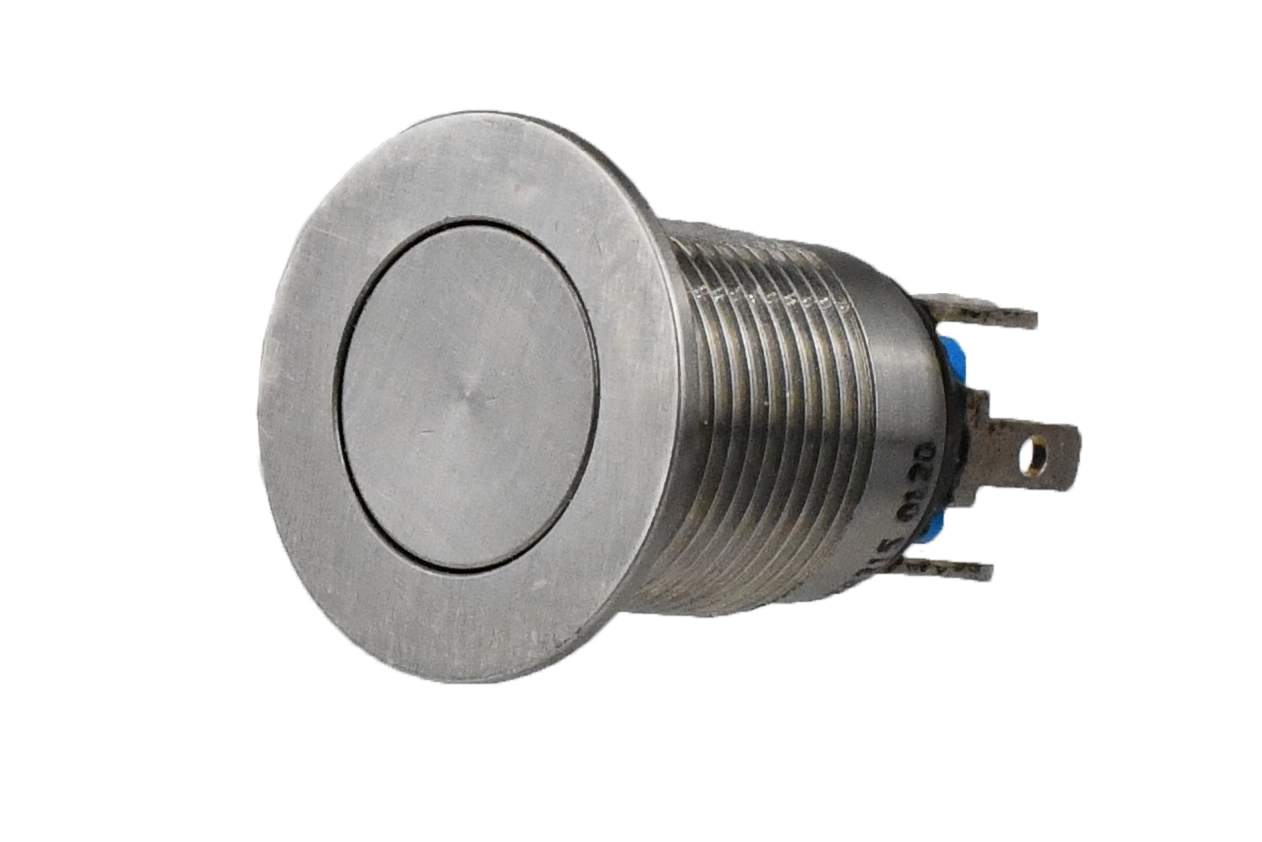

P8-A531312
Specifications
Detailed Description
Introducing the Vandal Resistant Pushbutton Switch from our P8 series. Featuring a sleek silver design, this switch boasts an IP6K8S rating for exceptional durability in harsh environments. With a high-profile curved button actuator and round shape, it offers a comfortable and intuitive user experience. The SPST-NO contact configuration, along with a 10A current rating, ensures reliable performance. Perfect for panel mounting, this switch is sealed and constructed from high-quality aluminum for longevity. Operating smoothly between -55°C and 85°C, and with a 100,000 cycle durability rating, it guarantees long-term use. Whether in industrial or commercial settings, this switch is the perfect choice for demanding applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
