| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V111213 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .079 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V111213 |

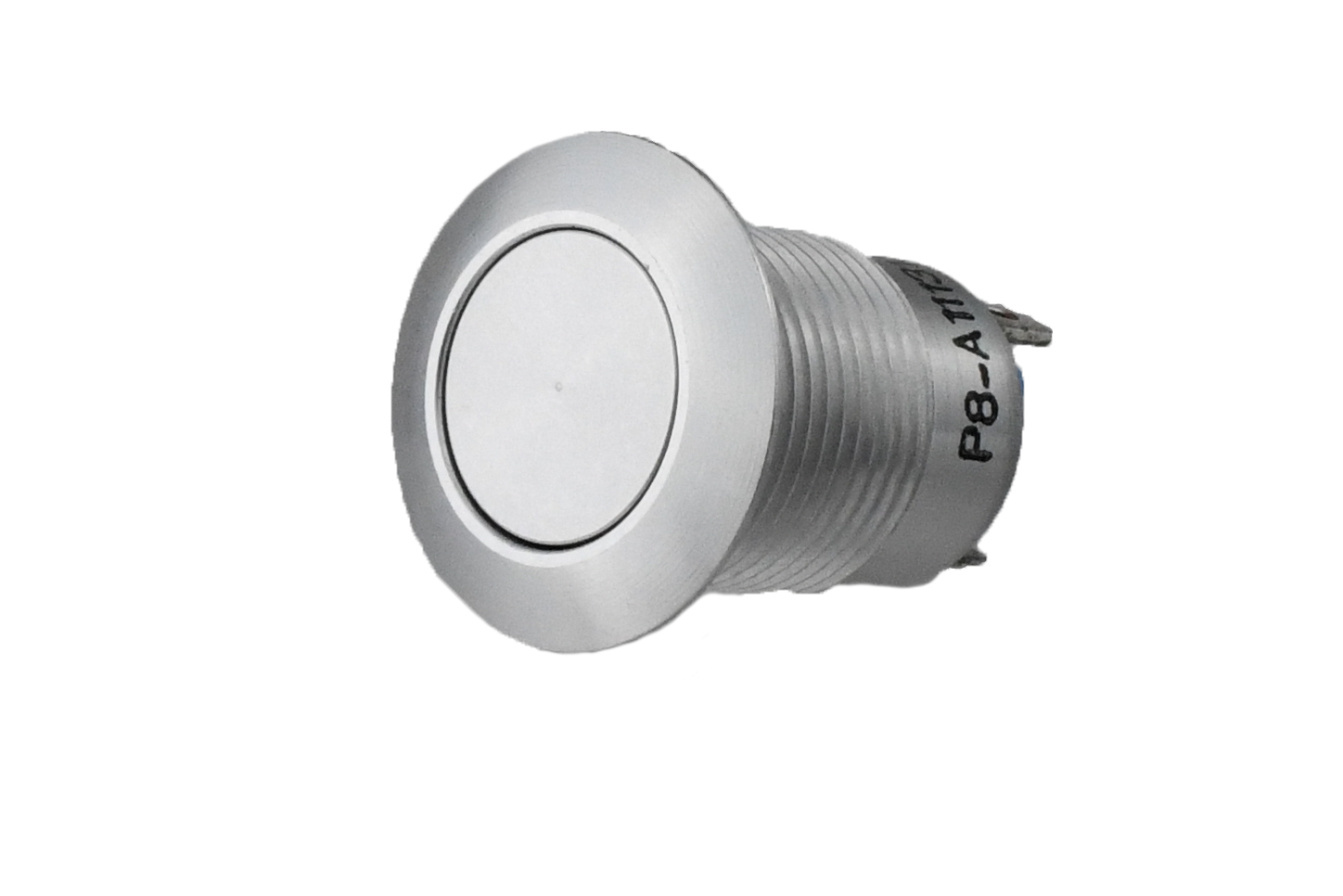

P8-V111213
Specifications
Detailed Description
The P8-V111213 Vandal Resistant Pushbutton Switch is a high-performance, durable switch designed for demanding environments. Featuring a sleek silver cap and case, it boasts an IP6K4S rating for water and dust resistance. The stainless steel construction ensures longevity, with a 100,000 cycle durability rating. This switch operates at a maximum temperature of 85°C and a minimum of -55°C, making it suitable for a wide range of applications. With a 10A current rating and SPST-NO contact configuration, it guarantees reliable performance. The flat, round button actuator, with a 0.079-inch length, offers a low-profile design perfect for panel mounting. Whether used in industrial machinery or outdoor equipment, this sealed pushbutton switch delivers uncompromising quality and functionality.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
