| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V111312 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (High Profile Curved) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .25 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V111312 |
P8-V111312
Specifications
Detailed Description

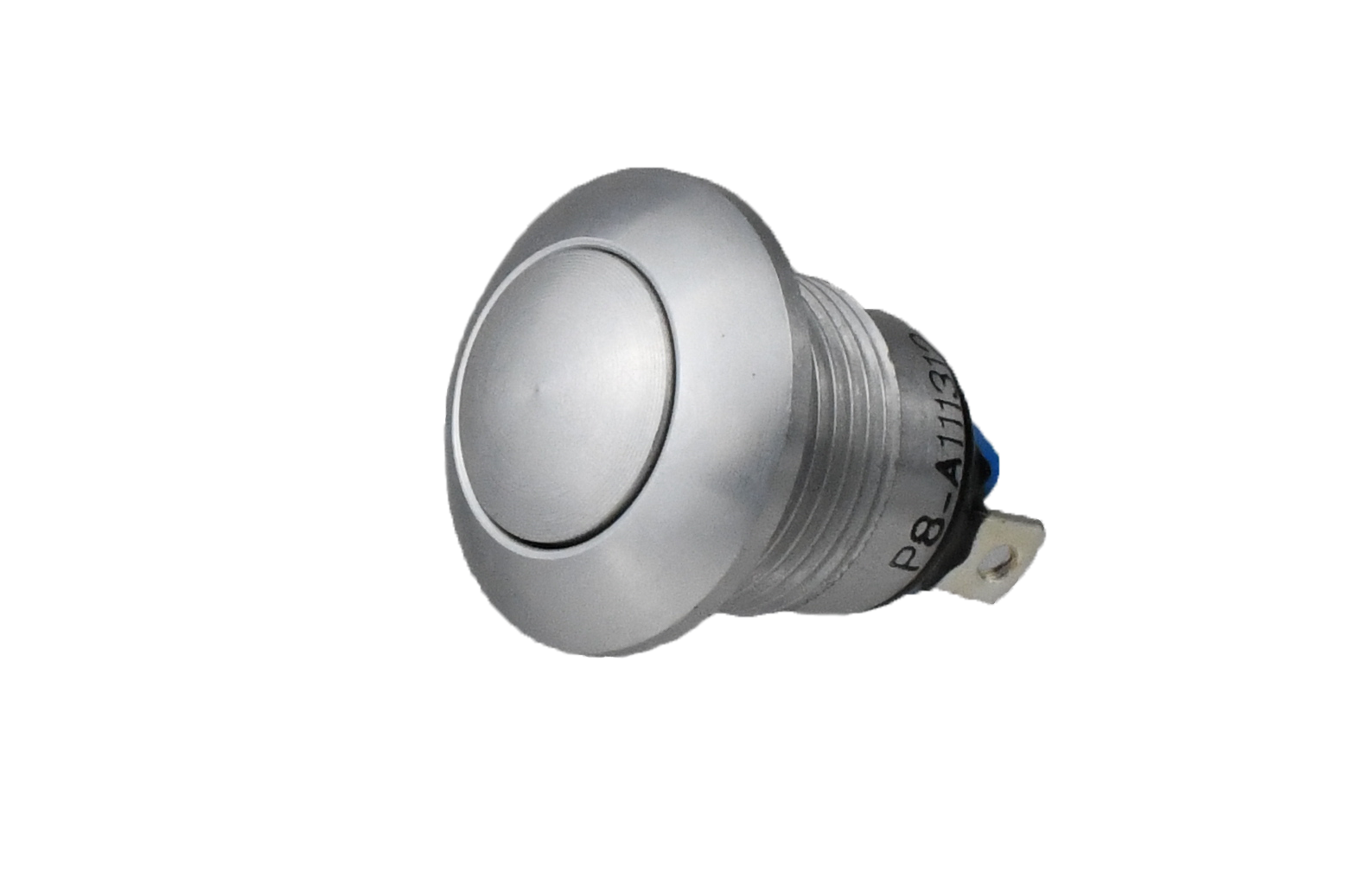

The P8-V111312, part of the P8-V series, is a rugged and reliable Vandal Resistant Pushbutton Switch designed for demanding environments. Featuring a sleek silver design with an IP6K8S rating, this switch is built to withstand dust, water, and physical tampering. The high-profile curved button actuator, made of durable stainless steel, ensures easy and comfortable operation. With a contact plating of silver, it offers excellent conductivity and a long lifespan of up to 100,000 cycles. Suitable for panel mounting, it has a solder termination type, and a SPST-NO contact configuration. Operating at temperatures ranging from -55°C to 85°C, and with a current rating of 10A, it is ideal for various industrial applications. Whether it's in a control panel, machinery, or outdoor equipment, this sealed pushbutton switch guarantees reliable performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
