| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V111313 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .079 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V111313 |

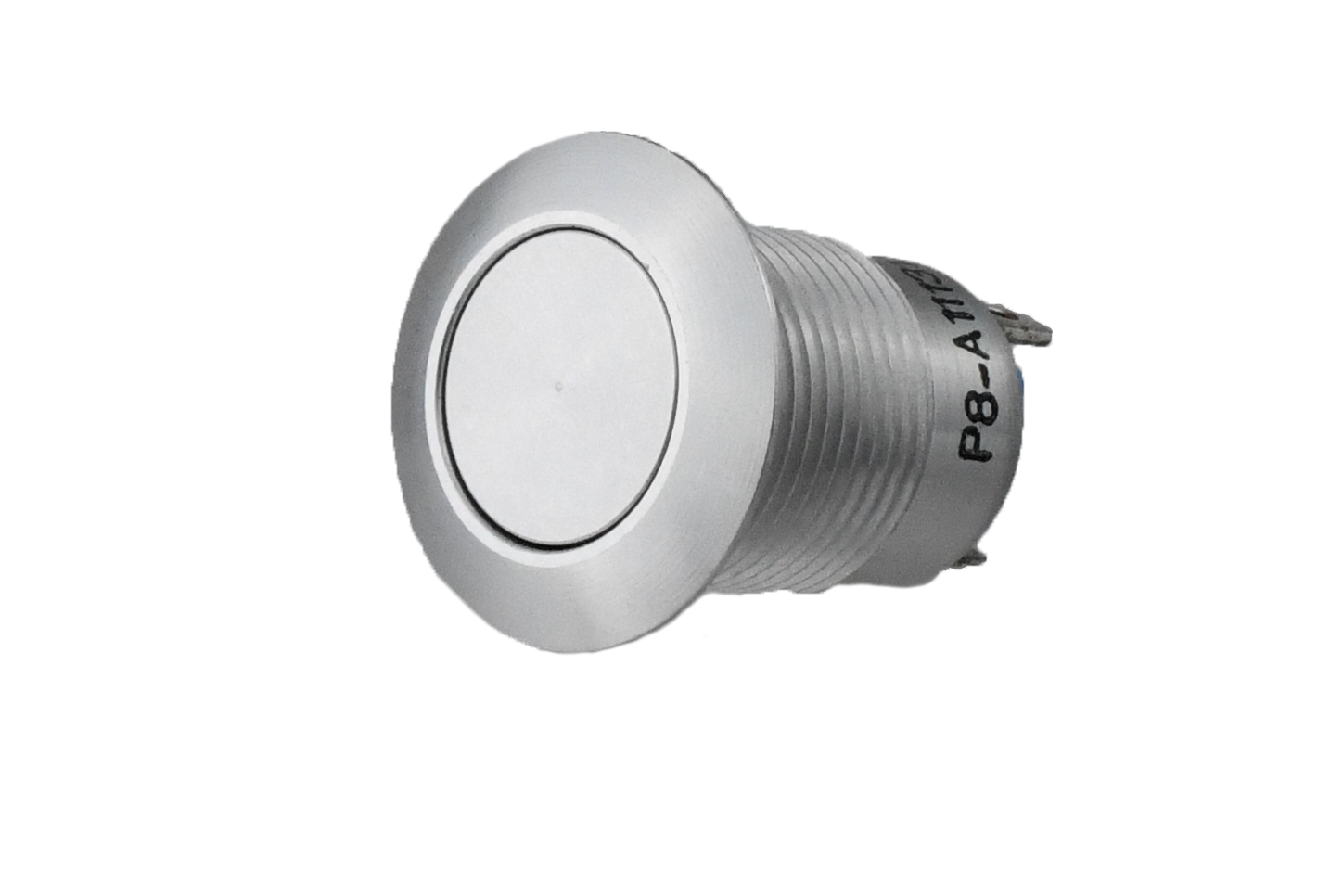

P8-V111313
Specifications
Detailed Description
The Vandal Resistant Pushbutton Switch P8-V111313, part of the P8-V series, boasts a durable stainless steel construction with a sleek silver finish. Featuring a low profile flat button actuator and round shape, this switch offers reliable performance in harsh environments with an IP6K8S rating. Ideal for panel mounting, it has a 10A current rating and SPST-NO contact configuration. With a high durability rating of 100,000 cycles, it ensures long-lasting use. Operating at temperatures ranging from -55°C to 85°C, and with voltage ratings of 115VAC and 28VDC, it is suitable for various applications where security and reliability are paramount. Terminated with solder, this non-illuminated switch is perfect for industrial, commercial, or outdoor settings.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
