P8-V111512

OTTP8_V111512
Heilind Number:OTTP8-V111512
Manufacturer:OTTO Controls
Manufacturer Number:P8-V111512
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

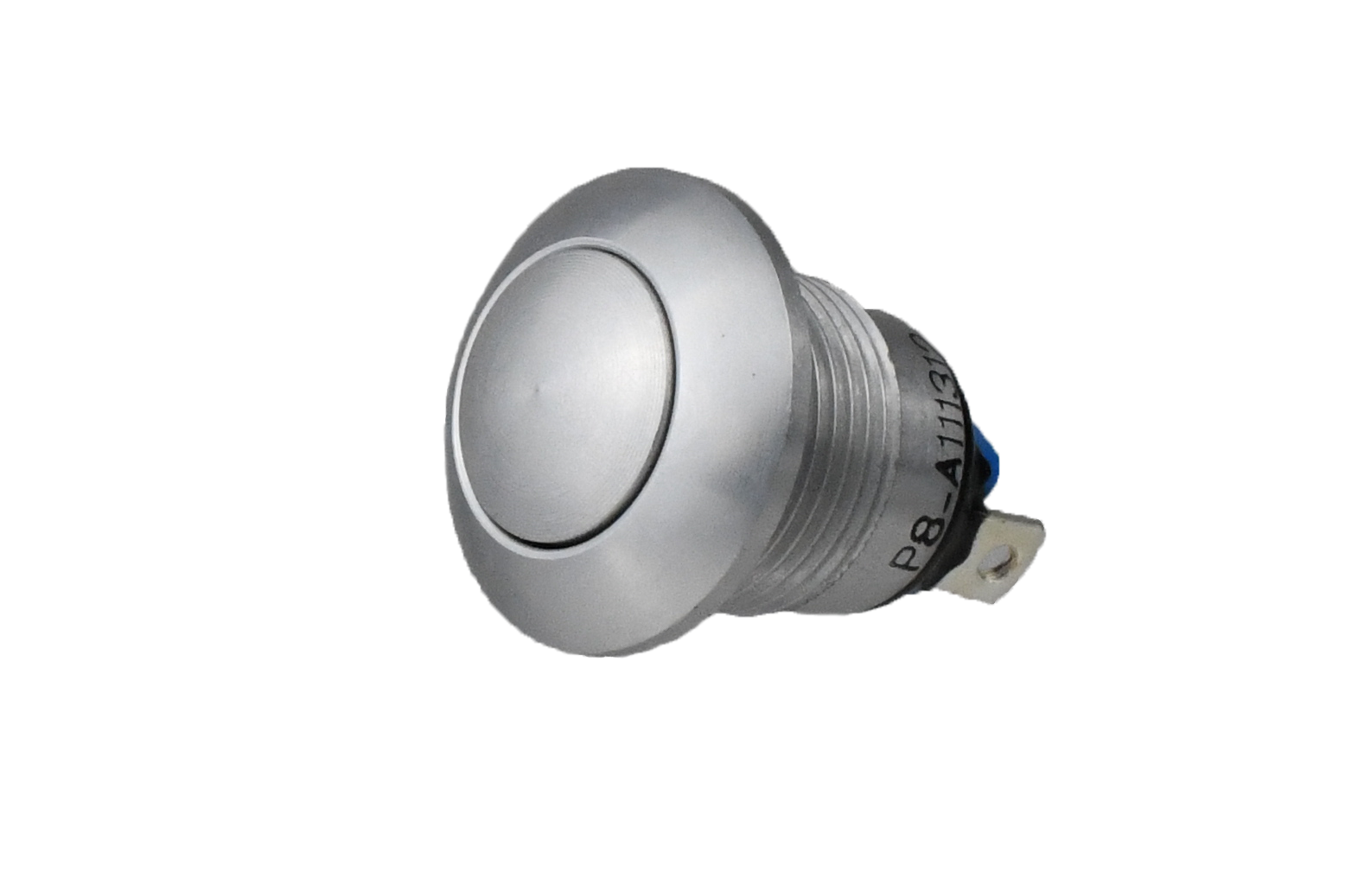

Vandal Resistant Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-V111512
Series:P8-V
Housing Material:Stainless Steel
Contact Plating:Silver
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
IP Rating:IP6K8S
Illumination:Not Illuminated
Contact Configuration:SPST-NO
Actuator Type:Button (High Profile Curved)
Case Color:Silver
Actuator Material:Stainless Steel
Termination Type:Solder
Actuator Shape:Round
Cap Color:Silver
Actuator Length:.25 in
Switch Function:OFF-ON
Type:Sealed
Durability Rating (Cycles):100,000 Cycles
Mounting Style:Panel Mount
Current Rating:10 A
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
SKU:OTTP8-V111512

Detailed Description

The P8-V111512 is a high-performance Vandal Resistant Pushbutton Switch designed for rugged environments. With a durable stainless steel construction in silver, this switch offers reliable operation even in harsh conditions. Featuring a button actuator with a high profile curved design, it ensures easy and comfortable usage. The SPST-NO contact configuration and 10A current rating make it suitable for various applications. With an IP6K8S rating, it provides excellent protection against dust and water ingress. Panel mountable and sealed, it guarantees secure installation and prevents moisture damage. Whether used in industrial machinery or outdoor equipment, this switch offers longevity with a durability rating of 100,000 cycles. Operating efficiently in temperatures ranging from -55°C to 85°C, and compatible with both AC and DC circuits, it is a versatile and reliable choice for any project.
