| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V131214 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Curved) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Quick Connect |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .12 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V131214 |
P8-V131214
Specifications
Detailed Description

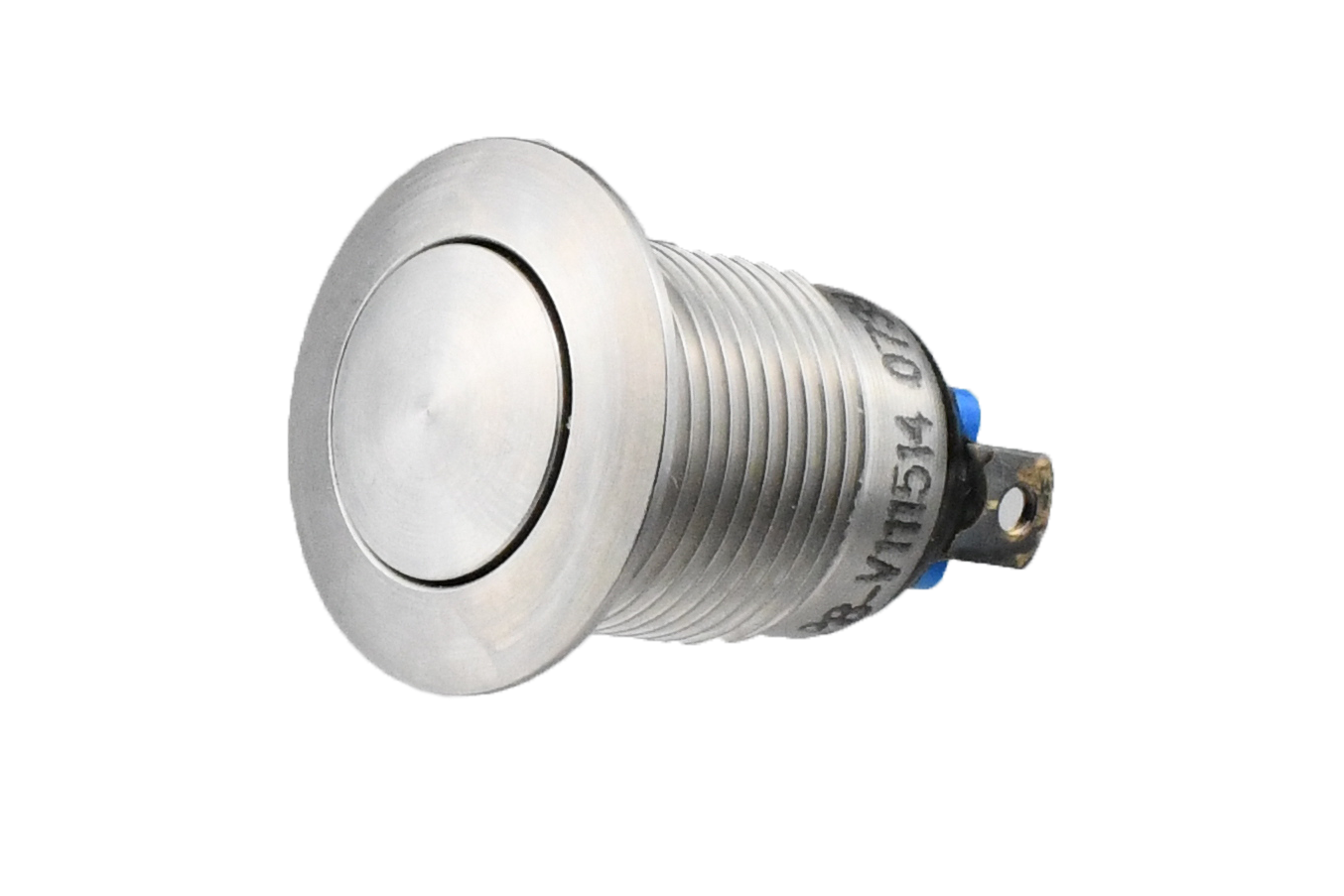

Introducing the Vandal Resistant Pushbutton Switch, featuring a rugged stainless steel construction in a sleek silver finish. With an IP6K4S rating, this switch offers reliable performance even in harsh environments. The low profile curved button design ensures comfortable operation, while the SPST-NO contact configuration guarantees seamless connectivity. Ideal for panel mounting, it boasts a durable 100,000 cycle lifespan. With a current rating of 10A and voltage ratings of 115VAC and 28VDC, this switch is suitable for a wide range of applications. From industrial machinery to outdoor installations, trust in the P8-V131214 for robust and dependable switch control.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
