| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V132414 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NC |
| Actuator Type: | Button (Low Profile Curved) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Quick Connect |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .12 in |
| Switch Function: | ON-OFF |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V132414 |
P8-V132414
Specifications
Detailed Description

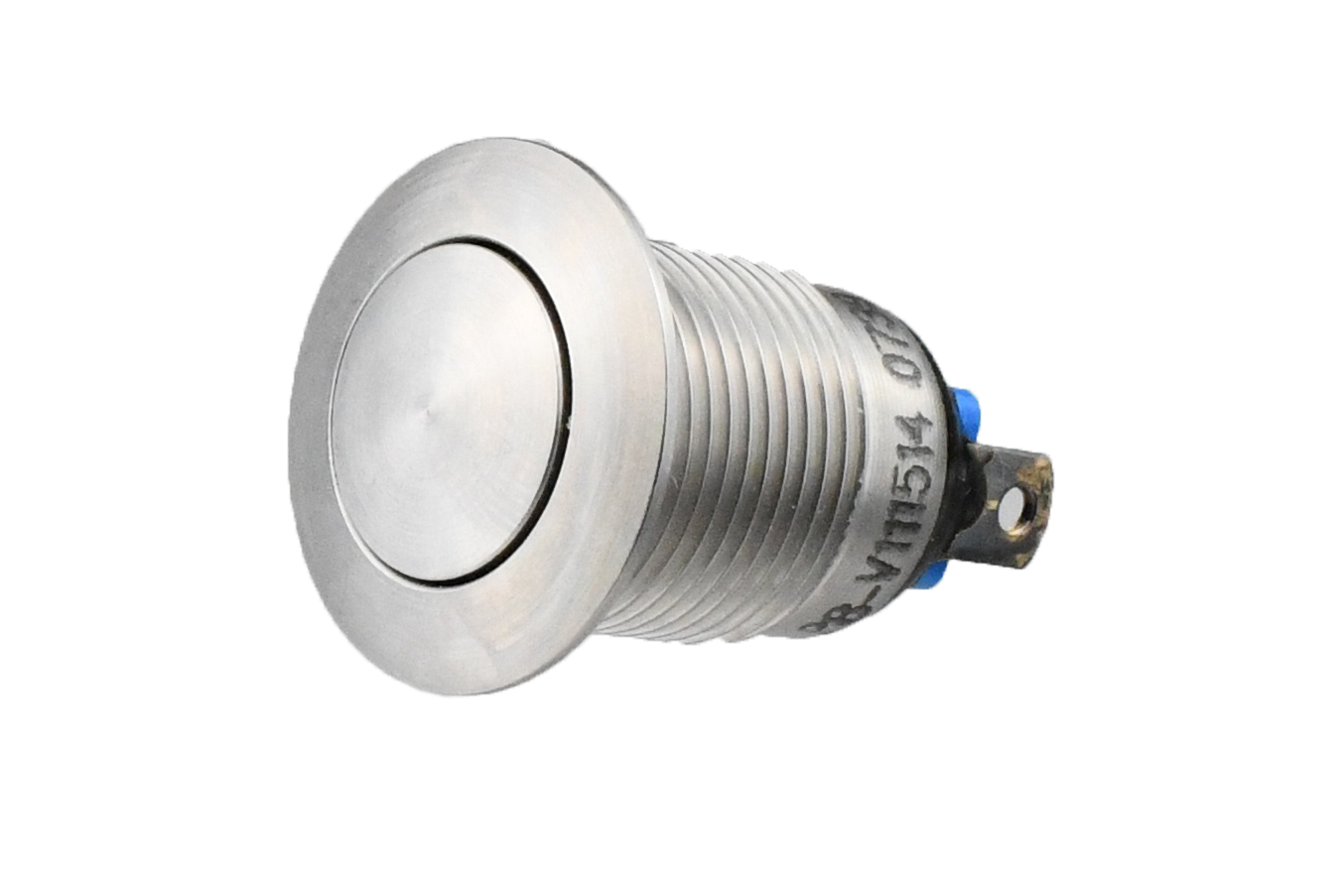

Introducing the Vandal Resistant Pushbutton Switch, SKU P8-V132414 from the P8-V series. This sleek and durable switch features a low profile curved button in a silver stainless steel housing, perfect for panel mounting. With an IP6K4S rating, it offers reliable performance in harsh environments. The SPST-NC contact configuration and 10A current rating make it suitable for high-power applications. Operating at temperatures ranging from -55°C to 85°C, it ensures functionality in diverse settings. This non-illuminated switch is designed for longevity, with a durability rating of 100,000 cycles. Whether for industrial machinery or outdoor equipment, this switch guarantees dependable operation. Upgrade to the Vandal Resistant Pushbutton Switch for quality and performance assurance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
