P8-V311312

OTTP8_V311312
Heilind Number:OTTP8-V311312
Manufacturer:OTTO Controls
Manufacturer Number:P8-V311312
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

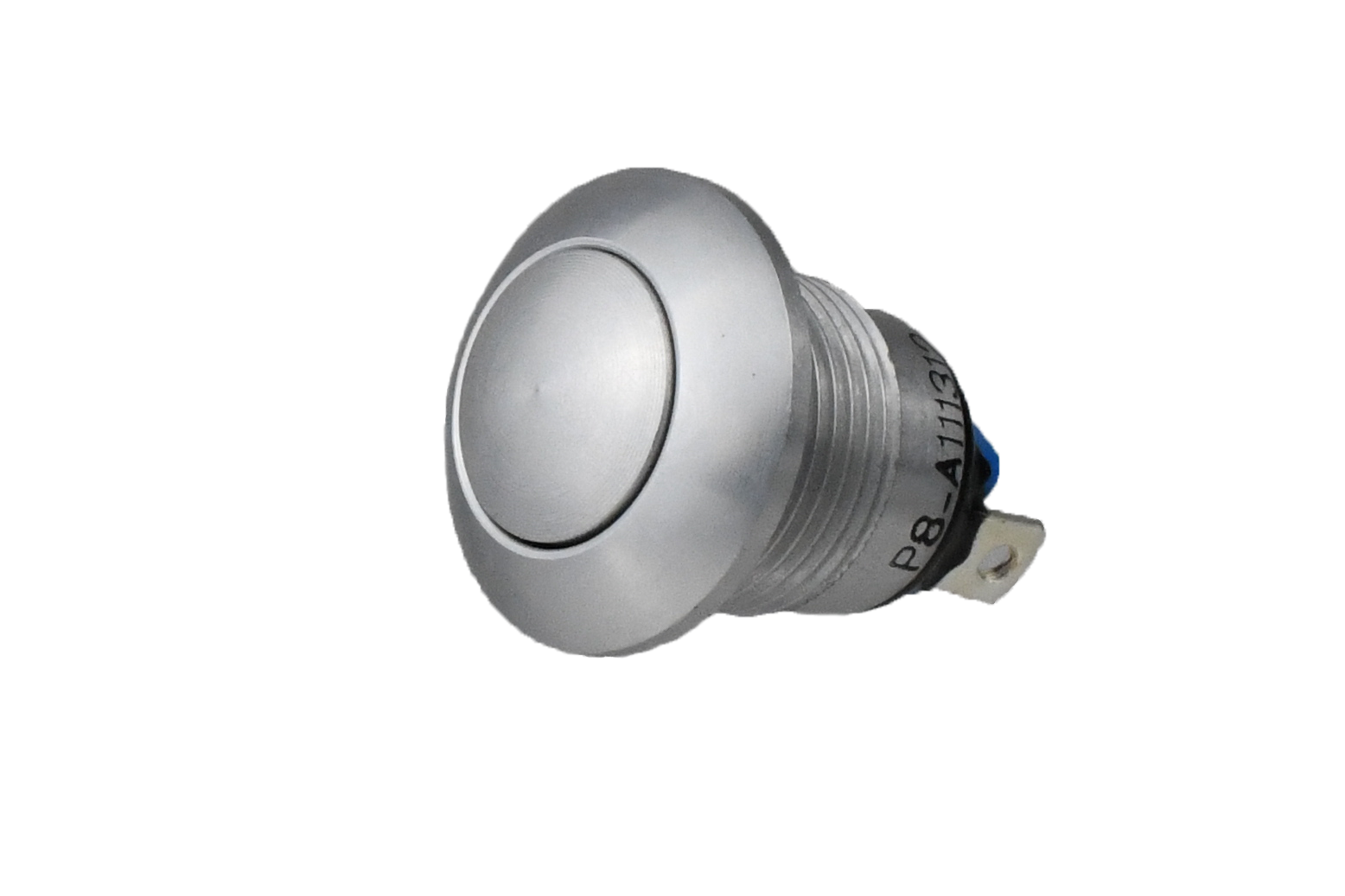

Vandal Resistant Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-V311312
Series:P8-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (High Profile Curved)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.25 in
Contact Plating:Silver
Switch Function:OFF-ON
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP8-V311312

Detailed Description

Introducing the P8-V311312 Vandal Resistant Pushbutton Switch, a high-performance solution for industrial and outdoor applications. With its durable stainless steel construction and IP6K8S rating, this switch is built to withstand harsh environments and ensure reliable operation. The silver cap and case add a sleek aesthetic, while the high-profile curved button offers comfortable actuation. Featuring a SPST-NO contact configuration and a 10A current rating, it guarantees efficient power control. The panel mount design and solder termination make installation easy. Whether used in machinery, security systems, or outdoor equipment, this sealed switch delivers long-lasting performance with a 100,000-cycle durability rating. Operating flawlessly in temperatures ranging from -55°C to 85°C and with a voltage rating of 115VAC/28VDC, it is suitable for a wide range of applications. Upgrade to the P8-V311312 for robust and secure switching in demanding environments.
