| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V311512 |
| Series: | P8-V |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (High Profile Curved) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .25 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Housing Material: | Stainless Steel |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Stainless Steel |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-V311512 |

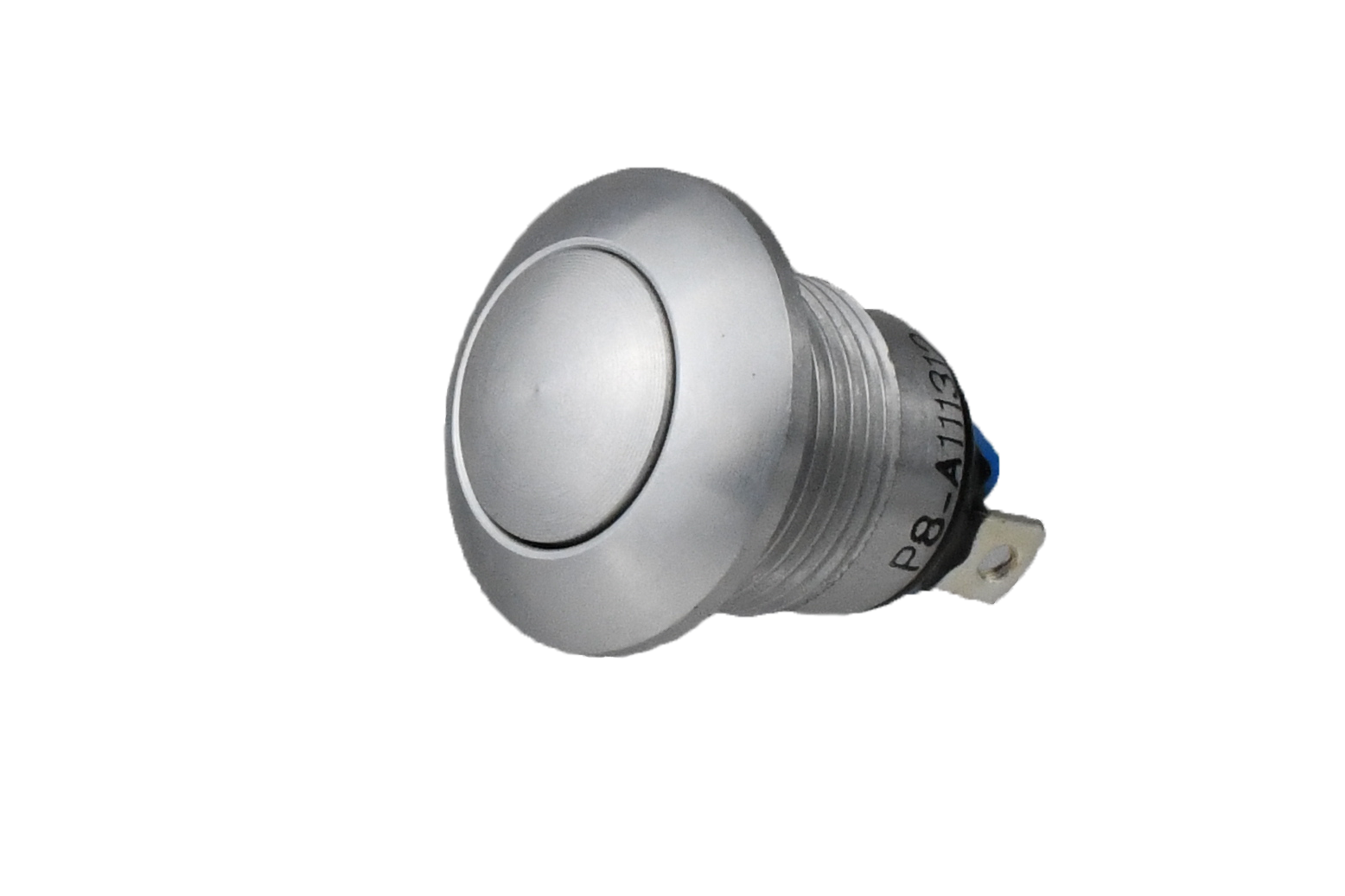

P8-V311512
Specifications
Detailed Description
The Vandal Resistant Pushbutton Switch, part of the P8-V series, boasts a sleek design with a Silver high-profile curved button actuator and a durable Stainless Steel construction. With a rugged IP6K8S rating, this switch is built to withstand harsh environments. Featuring a SPST-NO contact configuration and a 10A current rating, it ensures reliable performance. Ideal for panel mounting, it offers easy installation with solder termination. Operating seamlessly in temperatures ranging from -55°C to 85°C, it guarantees functionality in diverse settings. Whether for industrial machinery or outdoor applications, this RoHS-compliant switch combines robustness with precision, making it a versatile choice for any project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
