| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V311521 |
| Series: | P8-V |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (High Profile Flat) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .158 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Housing Material: | Stainless Steel |
| Type: | Sealed |
| Termination Type: | Solder |
| Actuator Material: | Stainless Steel |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-V311521 |
P8-V311521
Specifications
Detailed Description

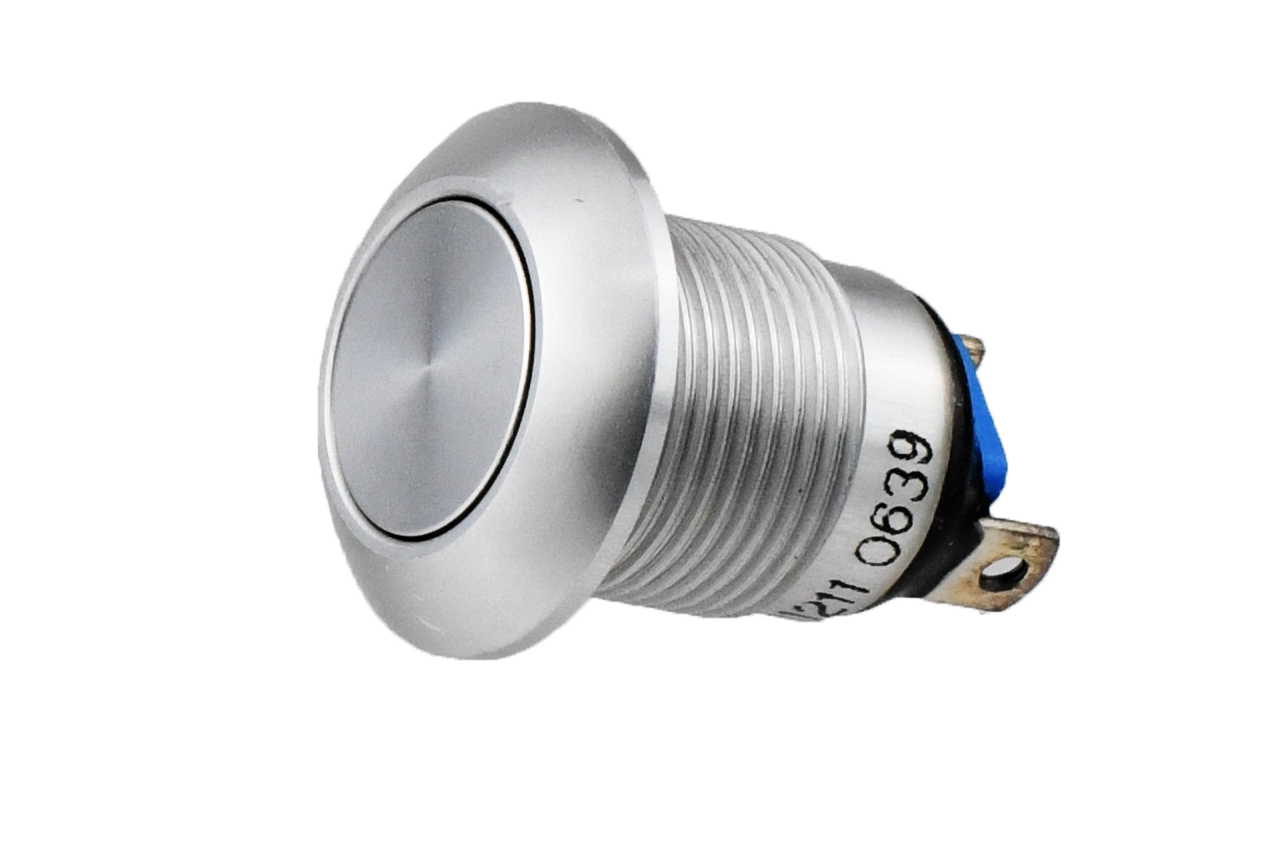

Introducing the Vandal Resistant Pushbutton Switch, P8-V311521, a durable and reliable solution for your industrial control needs. This high-profile flat button switch, part of the P8-V series, features a robust stainless steel construction with a sleek silver finish. With an IP6K8S rating, it offers exceptional protection against dust and water ingress. The SPST-NO contact configuration and 10A current rating ensure efficient and safe operation. Ideal for panel mounting, this sealed switch is designed for longevity, boasting a durability rating of 100,000 cycles. Whether in harsh environments or demanding applications, trust the P8-V311521 for consistent performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
