| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V321312 |
| Series: | P8-V |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (High Profile Curved) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .25 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Housing Material: | Stainless Steel |
| Type: | Sealed |
| Termination Type: | Screw |
| Actuator Material: | Stainless Steel |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-V321312 |

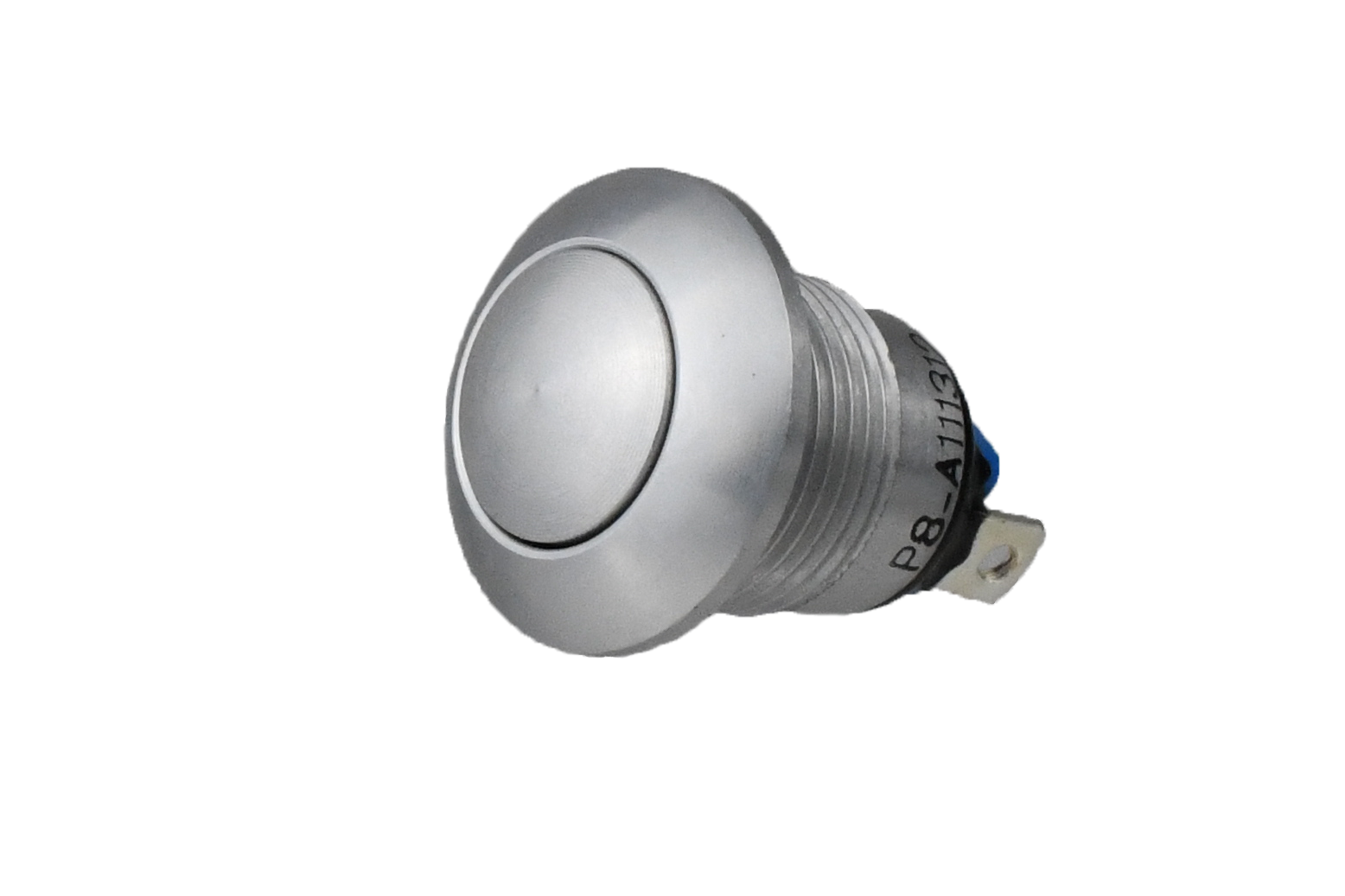

P8-V321312
Specifications
Detailed Description
Enhance durability and security with the P8-V321312 Vandal Resistant Pushbutton Switch. Featuring a sleek silver design, this IP6K8S rated switch is perfect for high-profile applications. Its stainless steel construction ensures longevity, with a high actuation force of 10A for reliable performance. The SPST-NO contact configuration and Off-(On) switch function offer precise control. Suitable for both AC and DC systems, this panel mount switch operates flawlessly in temperatures ranging from -55°C to 85°C. With a 100,000 cycle durability rating, it guarantees long-term use. Ideal for harsh environments, the P8-V series combines functionality and ruggedness in one compact design. Elevate your control panel with this premium quality push button switch.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
