| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V321314 |
| Series: | P8-V |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (Low Profile Curved) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .12 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Housing Material: | Stainless Steel |
| Type: | Sealed |
| Termination Type: | Screw |
| Actuator Material: | Stainless Steel |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-V321314 |
P8-V321314
Specifications
Detailed Description

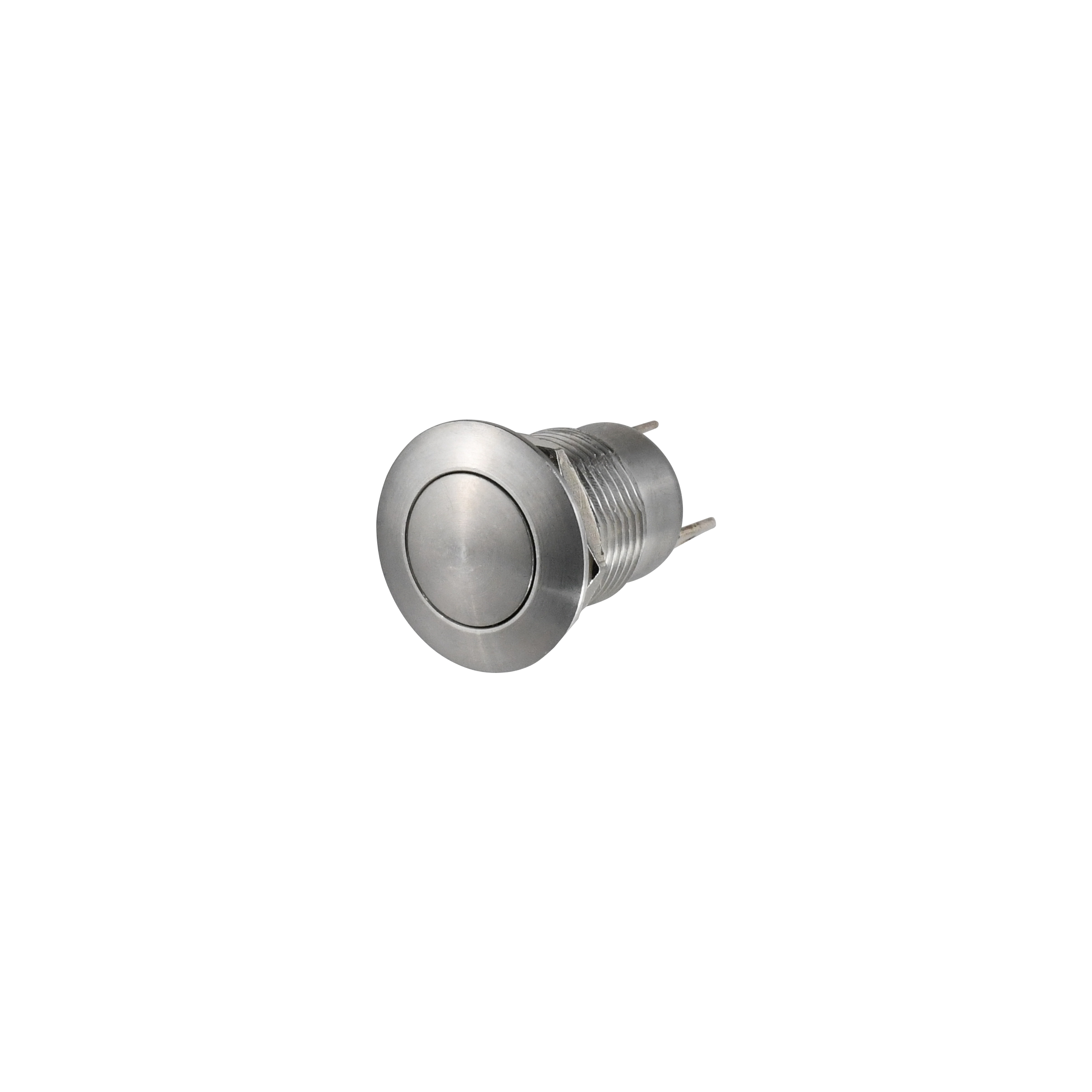

Introducing the Vandal Resistant Pushbutton Switch, featuring a low-profile curved button design for seamless operation. With a durable stainless steel construction and IP6K8S sealing, this switch offers reliable performance in harsh environments. The silver contact plating ensures excellent conductivity, while the SPST-NO contact configuration guarantees precise functionality. Rated for 100,000 cycles of use, it's built to last. Ideal for panel mounting, this switch is suitable for both AC and DC applications, with voltage ratings of 115 VAC and 28 VDC. From industrial machinery to outdoor equipment, trust in the P8-V321314 for dependable control.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
