| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V322513 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NC |
| Actuator Type: | Button (Low Profile Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .079 in |
| Switch Function: | ON-OFF |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V322513 |
P8-V322513
Specifications
Detailed Description

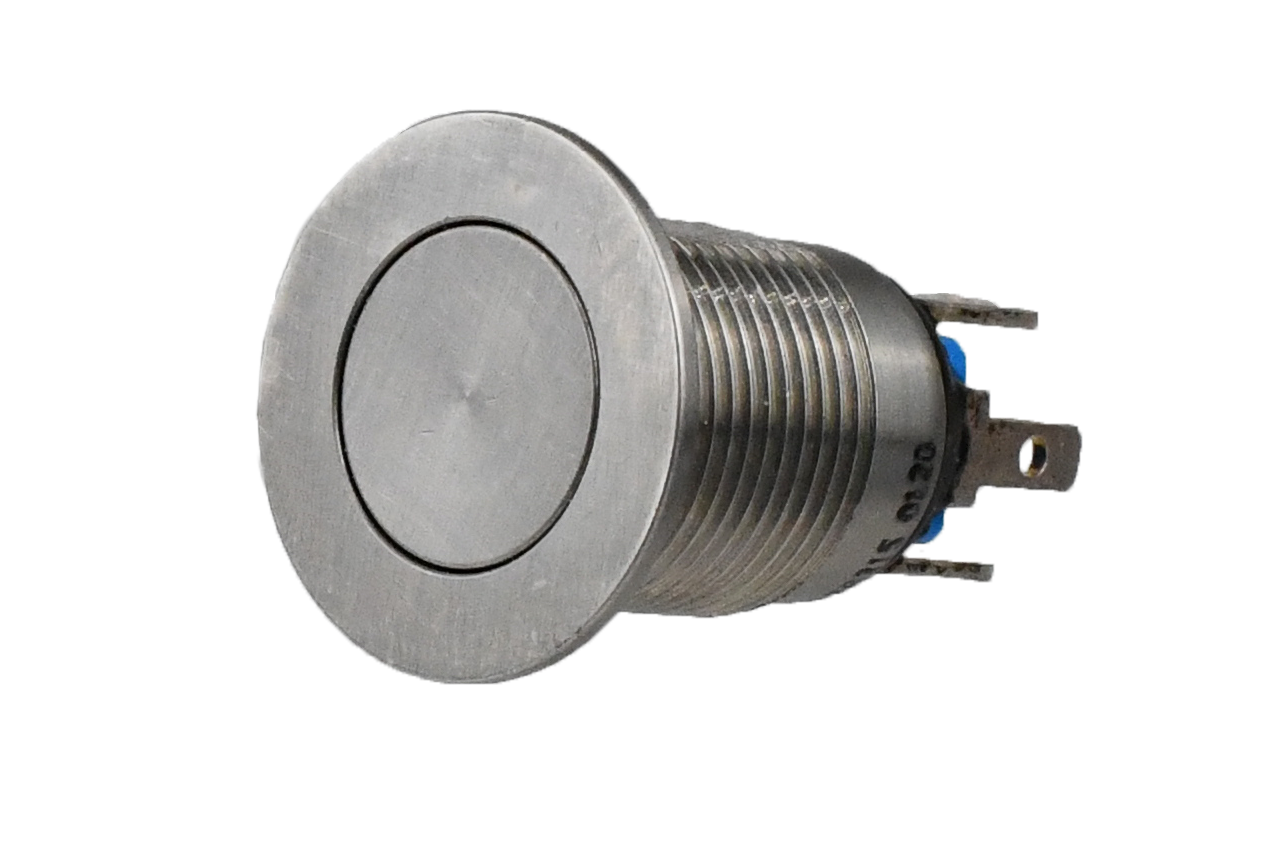

Introducing the Vandal Resistant Pushbutton Switch, part of the P8-V series. This high-performance switch features a sleek silver design with a low profile flat button actuator, perfect for panel mounting. Crafted from durable stainless steel, it offers reliable operation with a sealing rating of IP6K8S and a lifespan of 100,000 cycles. The SPST-NC contact configuration ensures efficient On-(Off) functionality, while the current rating of 10A and voltage ratings of 115VAC and 28VDC make it suitable for various applications. With a wide operating temperature range from -55°C to 85°C, this switch is ideal for both indoor and outdoor use. Upgrade to the Vandal Resistant Pushbutton Switch for dependable performance in demanding environments.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
