| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V331312 |
| Series: | P8-V |
| Cap Color: | Silver |
| IP Rating: | IP6K8S |
| Case Color: | Silver |
| Illumination: | Not Illuminated |
| Actuator Type: | Button (High Profile Curved) |
| Actuator Shape: | Round |
| Current Rating: | 10 A |
| Mounting Style: | Panel Mount |
| Actuator Length: | .25 in |
| Contact Plating: | Silver |
| Switch Function: | OFF-ON |
| Housing Material: | Stainless Steel |
| Type: | Sealed |
| Termination Type: | Quick Connect |
| Actuator Material: | Stainless Steel |
| Durability Rating (Cycles): | 100,000 Cycles |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| Contact Configuration: | SPST-NO |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | OTTP8-V331312 |
P8-V331312
Specifications
Detailed Description

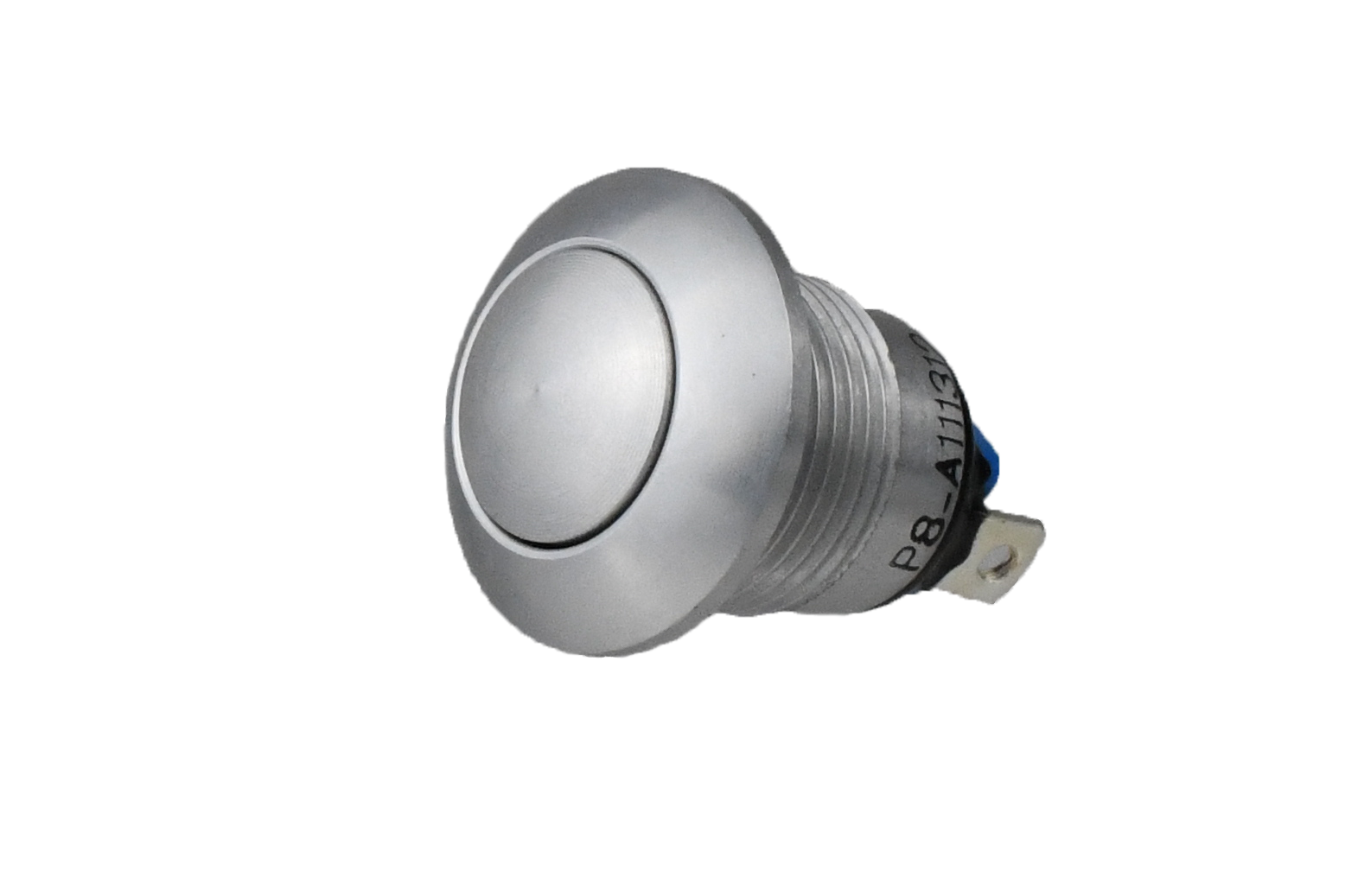

Introducing the P8-V331312 Vandal Resistant Pushbutton Switch, a durable and reliable solution for your panel-mounting needs. This stainless steel switch, part of the P8-V series, features a high-profile curved button actuator for easy operation. With an IP6K8S rating, it offers superior protection against dust and water ingress, making it ideal for harsh environments. The silver cap and case add a sleek touch, while the SPST-NO contact configuration ensures seamless performance. Rated for 10A at 115VAC and 28VDC, this switch is suitable for various applications. With a long lifespan of 100,000 cycles and operating temperatures ranging from -55°C to 85°C, you can count on its performance. Upgrade to the P8-V331312 for a rugged and dependable pushbutton switch solution.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
