| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V511314 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Curved) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .141 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V511314 |
P8-V511314
Specifications
Detailed Description

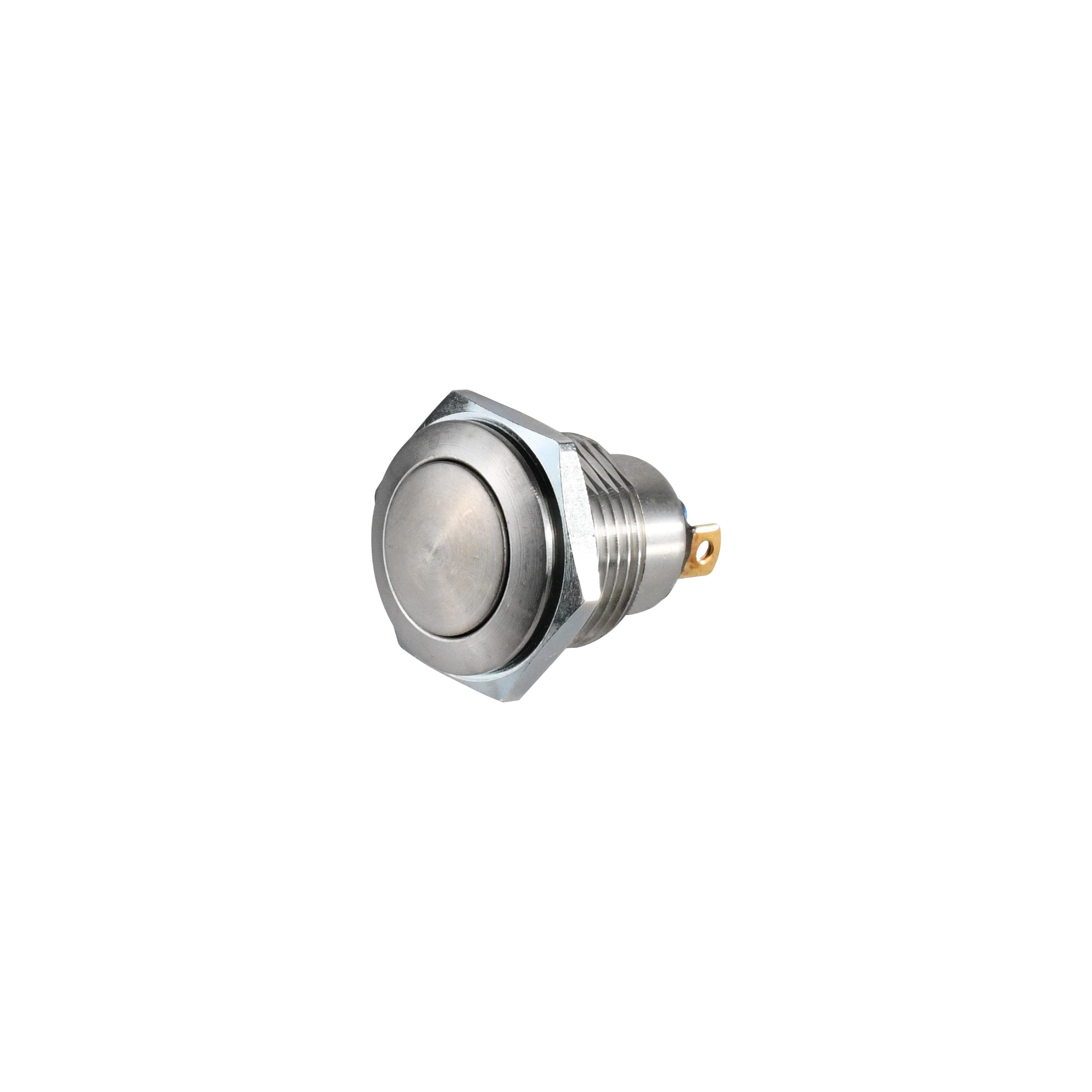

Introducing the Vandal Resistant Pushbutton Switch, a durable and reliable solution for your industrial control panel needs. This rugged switch, part of the P8-V series, features a low-profile curved button actuator made of stainless steel, ensuring longevity even in harsh environments. With an IP6K8S rating, it offers superior protection against dust and water ingress. The SPST-NO contact configuration and 10A current rating make it ideal for power control applications. Designed for panel mount installation, its silver housing and cap add a sleek touch to any setup. Operating flawlessly in temperatures ranging from -55°C to 85°C, this sealed switch guarantees performance under extreme conditions. Trust in the P8V511314 for uncompromising quality and longevity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
