P8-V511513

OTTP8_V511513
Heilind Number:OTTP8-V511513
Manufacturer:OTTO Controls
Manufacturer Number:P8-V511513
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

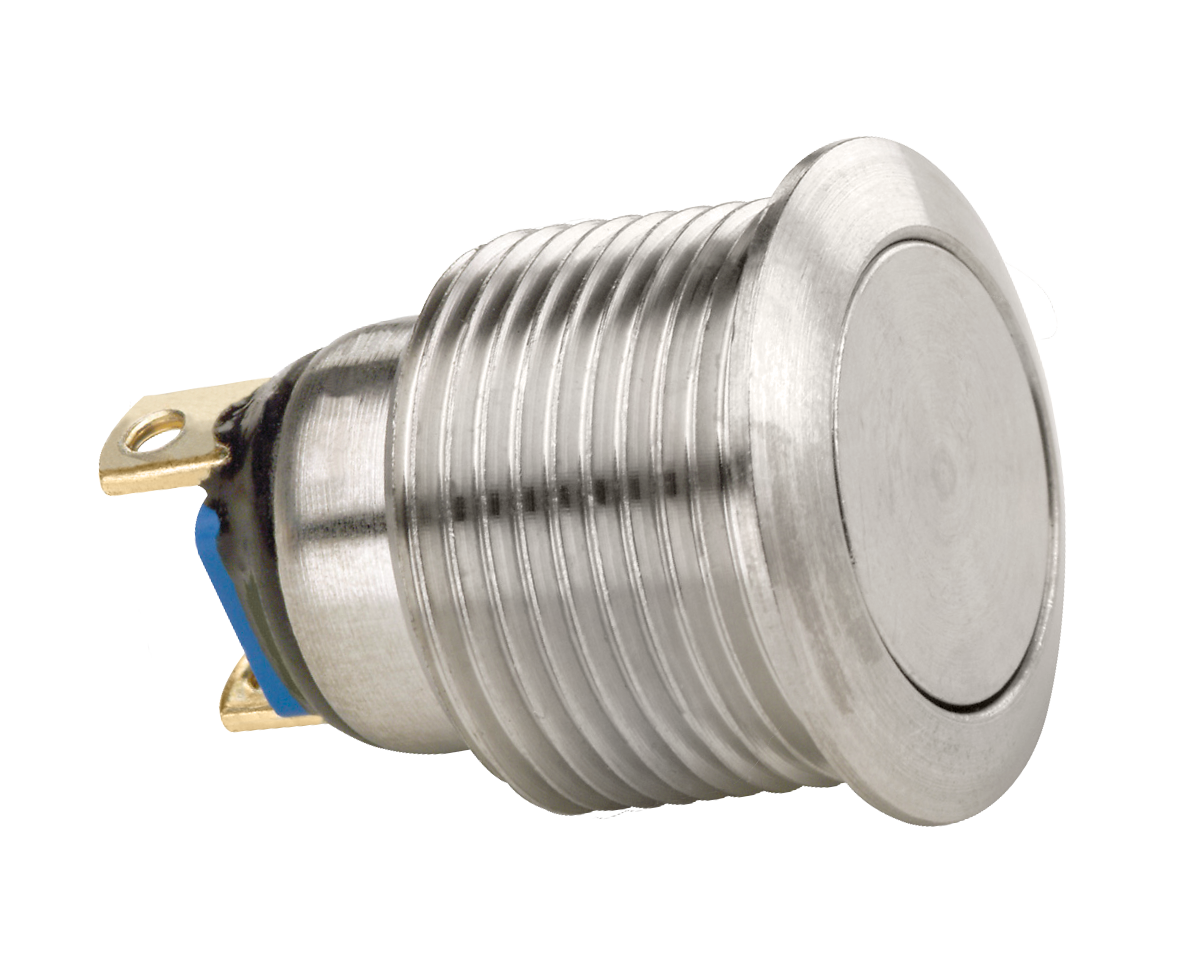

Vandal Resistant Pushbutton Switch

More >>

Specifications

AttributeValue
Product Category:
Switches Push Button Switches
Manufacturer:OTTO Controls
Manufacturer Part Number:OTTO Controls P8-V511513
Series:P8-V
Cap Color:Silver
IP Rating:IP6K8S
Case Color:Silver
Illumination:Not Illuminated
Actuator Type:Button (Low Profile Flat)
Actuator Shape:Round
Current Rating:10 A
Mounting Style:Panel Mount
Actuator Length:.079 in
Contact Plating:Silver
Switch Function:OFF-ON
Housing Material:Stainless Steel
Type:Sealed
Termination Type:Solder
Actuator Material:Stainless Steel
Durability Rating (Cycles):100,000 Cycles
Voltage Rating (AC):115 VAC
Voltage Rating (DC):28 VDC
Contact Configuration:SPST-NO
Maximum Operating Temperature:85 °C
Minimum Operating Temperature:-55 °C
SKU:OTTP8-V511513

Detailed Description

Designed for durability and reliability, the P8-V511513 Vandal Resistant Pushbutton Switch is a top-of-the-line choice for demanding environments. With an IP6K8S rating for superior dust and water resistance, this switch is perfect for outdoor or industrial use. The sleek stainless steel construction, in both case and actuator, ensures longevity even in harsh conditions. The low profile flat button design with a round actuator shape offers comfortable operation. Featuring a SPST-NO contact configuration with a 10A current rating, it guarantees efficient performance. With a high durability rating of 100,000 cycles, this switch is built to last. Ideal for panel mounting with solder termination, it's easy to install. Operating at temperatures ranging from -55°C to 85°C and compatible with both AC and DC voltages (115VAC, 28VDC), it offers versatility. Whether you need a reliable switch for machinery, security systems, or outdoor equipment, the P8-V511513 is the perfect choice.
