| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V512221 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NC |
| Actuator Type: | Button (High Profile Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .158 in |
| Switch Function: | ON-OFF |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V512221 |
P8-V512221
Specifications
Detailed Description

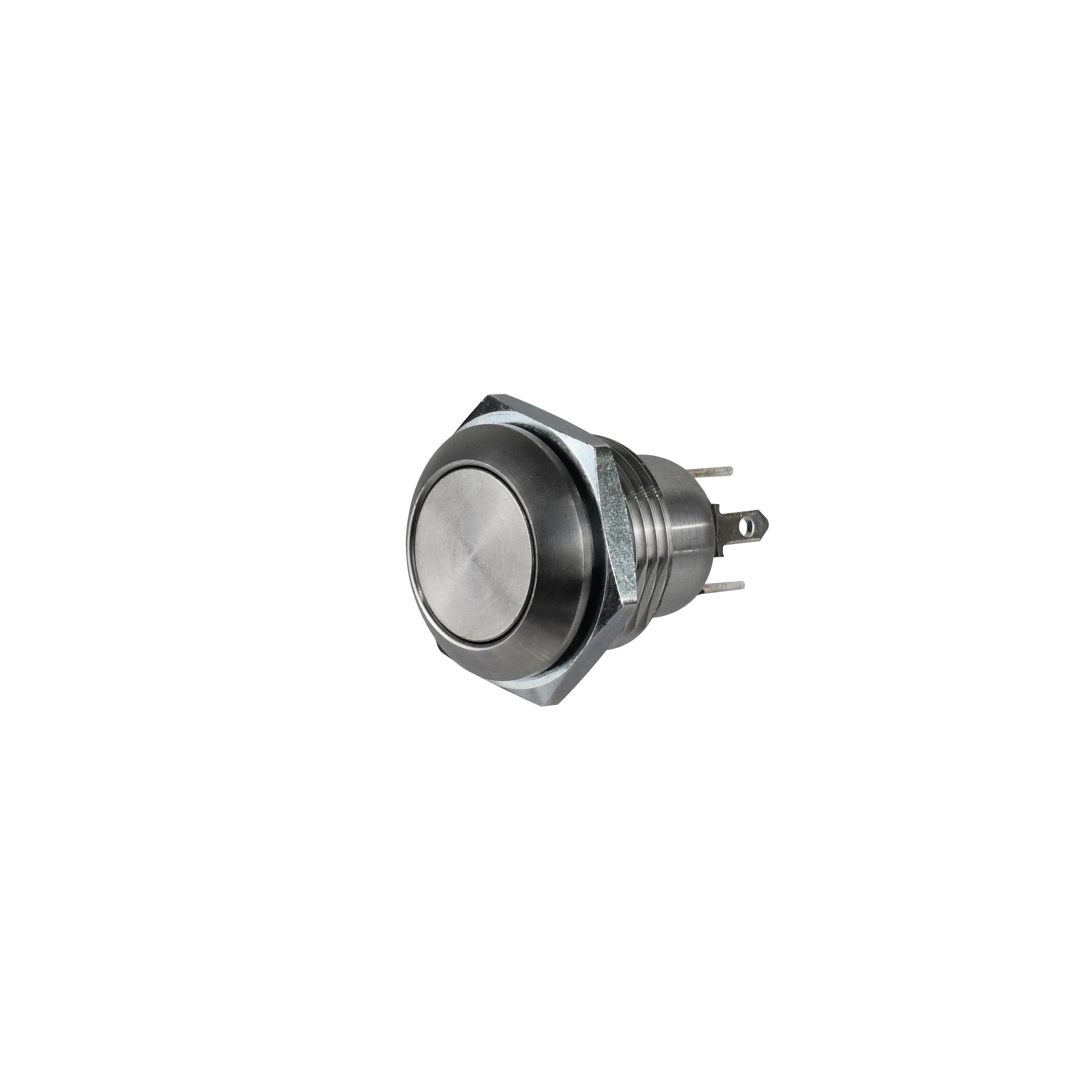

Introducing the Vandal Resistant Pushbutton Switch, model P8-V512221 from our P8-V series. This sleek and durable switch features a silver high-profile flat button actuator, perfect for panel mounting applications. Crafted from stainless steel with a silver contact plating, it offers reliable performance in harsh environments with an IP6K4S sealing rating. Operating at 115VAC or 28VDC, this SPST-NC switch has a current rating of 10A and a long-lasting durability of 100,000 cycles. With a wide temperature range from -55°C to 85°C, it is suitable for various industrial settings. Upgrade your control systems with this premium-quality pushbutton switch, designed for uncompromising performance.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
