| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V512315 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NC |
| Actuator Type: | Button (Flush) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Solder |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .047 in |
| Switch Function: | ON-OFF |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V512315 |
P8-V512315
Specifications
Detailed Description

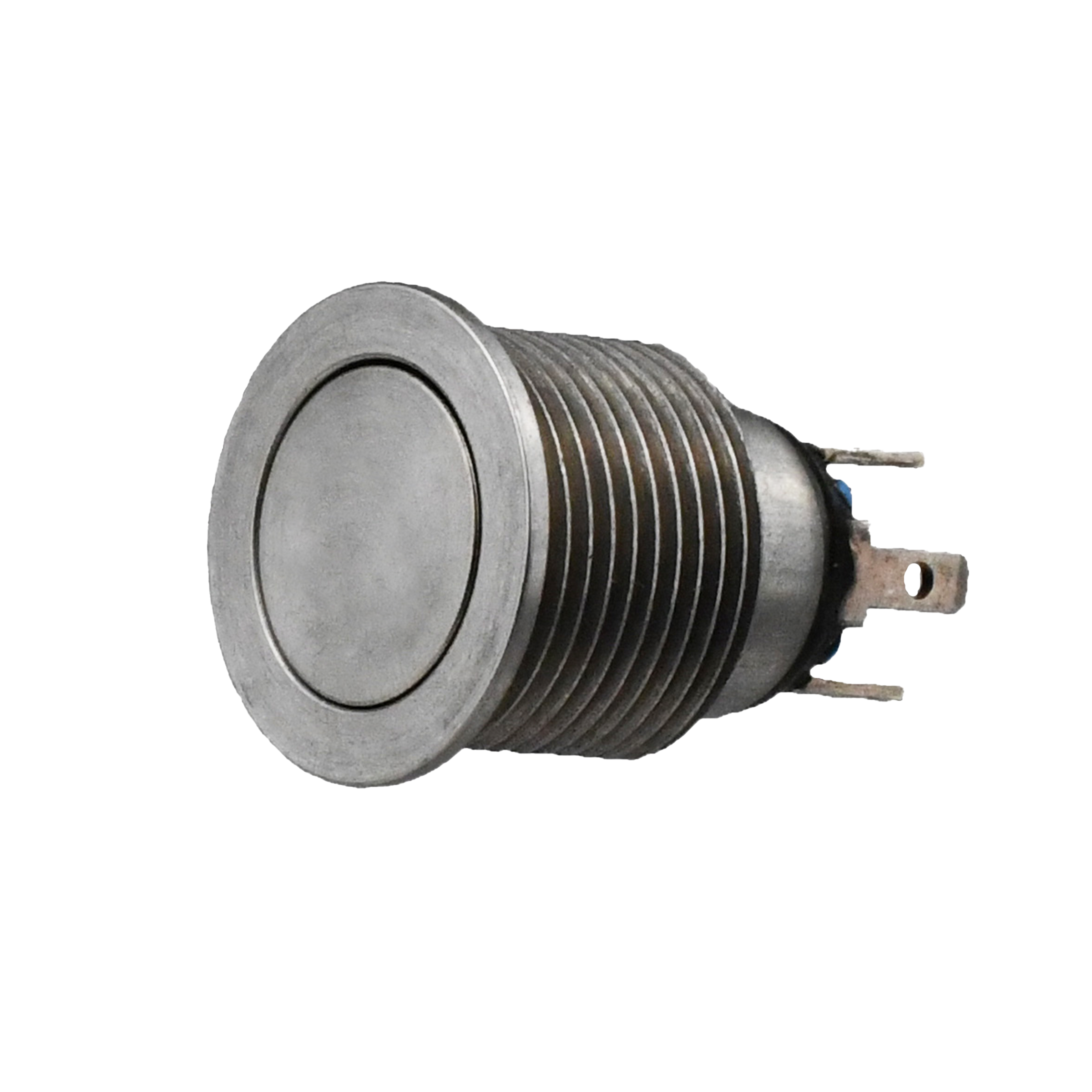

The Vandal Resistant Pushbutton Switch, part of the P8-V series, boasts a durable stainless steel construction with a sleek silver finish. Featuring a non-illuminated flush button actuator, this switch is designed for reliable performance in harsh environments, with an IP6K8S ingress protection rating. Its SPST-NC contact configuration and 10A current rating make it ideal for a variety of applications. With a high durability rating of 100,000 cycles and a wide operating temperature range from -55°C to 85°C, this switch ensures long-lasting functionality. Suitable for panel mounting and solder termination, it is a versatile choice for industrial and commercial settings where robustness and security are paramount.
