| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V521311 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (High Profile Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .145 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V521311 |
P8-V521311
Specifications
Detailed Description

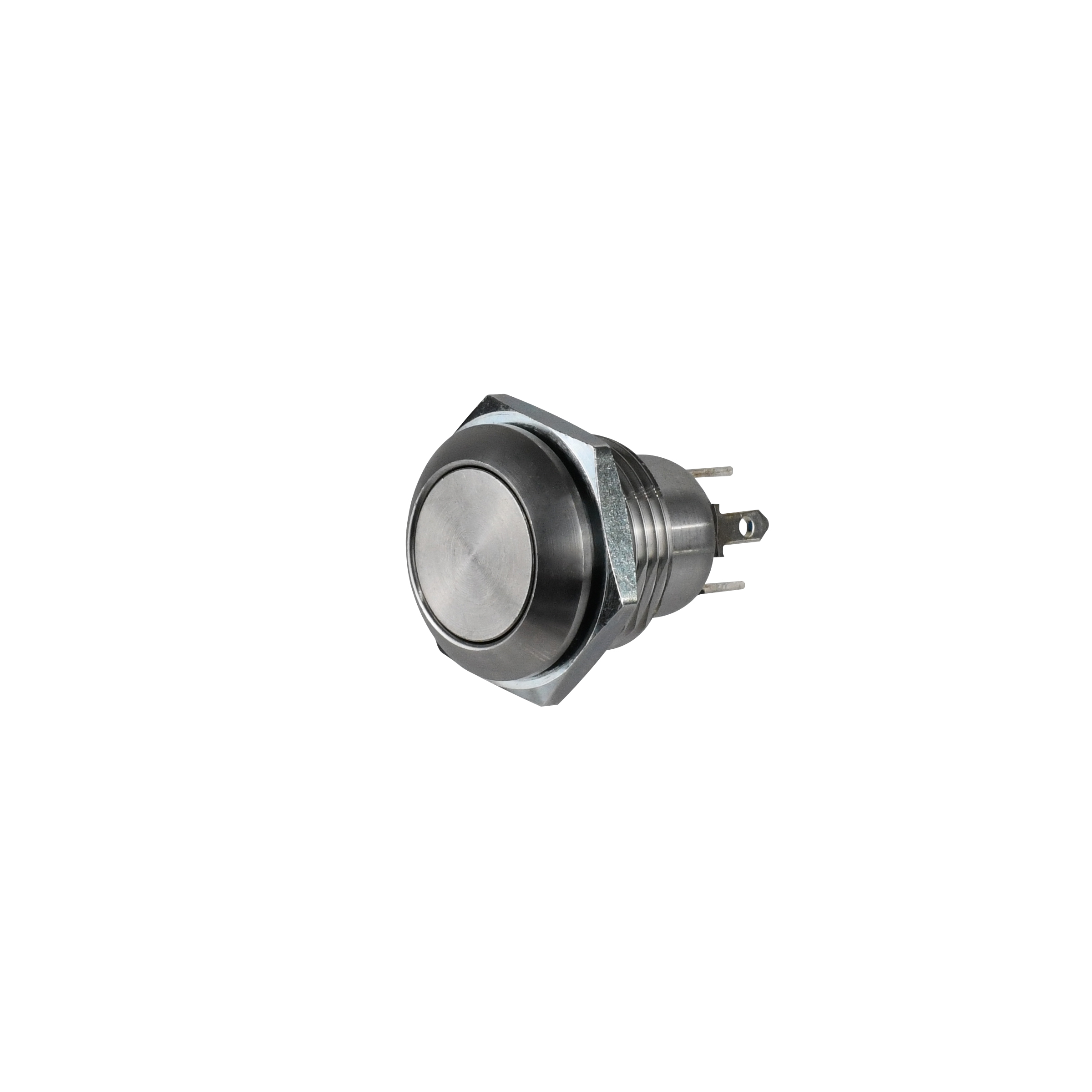

Introducing the P8-V521311, a rugged and reliable Vandal Resistant Pushbutton Switch designed for demanding environments. With a sleek silver cap and case, this switch features a high-profile flat button actuator made of durable stainless steel. The SPST-NO contact configuration ensures dependable performance, rated for 100,000 cycles of use. Operating smoothly in temperatures ranging from -55°C to 85°C, and with an IP6K8S rating, it offers excellent protection against dust and water ingress. Ideal for panel mounting, the P8-V521311 is suitable for both AC and DC applications, with voltage ratings of 115VAC and 28VDC respectively. Trust in its quality and longevity for your industrial or commercial needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
