| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V521313 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K8S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .079 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V521313 |

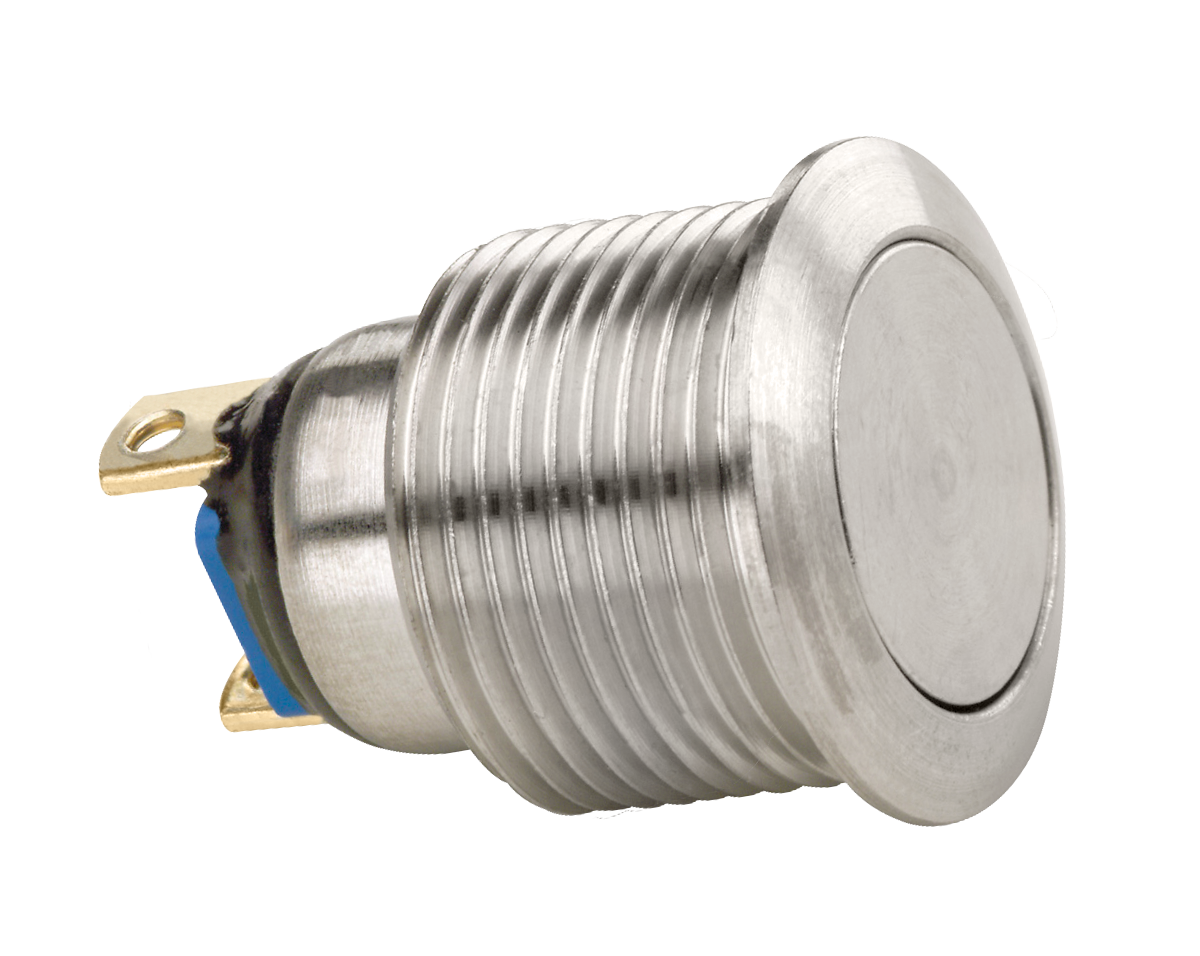

P8-V521313
Specifications
Detailed Description
Introducing the Vandal Resistant Pushbutton Switch, part of the P8-V series. Designed for durability in demanding environments, this switch features a low-profile flat button actuator made of stainless steel, ensuring reliability over 100,000 cycles. With an IP6K8S rating and sealed construction, it offers protection against water and dust ingress. The silver contact plating and SPST-NO configuration provide a stable connection, suitable for applications requiring a 10A current rating at 115VAC or 28VDC. Panel-mount installation with screw termination makes setup easy. Operating smoothly from -55°C to 85°C, this switch guarantees performance in a wide range of conditions, perfect for industrial and outdoor use. Upgrade to the V521313 for a dependable solution in your control panel or machinery.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
