| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | OTTO Controls |
| Manufacturer Part Number: | OTTO Controls P8-V521413 |
| Series: | P8-V |
| Housing Material: | Stainless Steel |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP6K4S |
| Illumination: | Not Illuminated |
| Contact Configuration: | SPST-NO |
| Actuator Type: | Button (Low Profile Flat) |
| Case Color: | Silver |
| Actuator Material: | Stainless Steel |
| Termination Type: | Screw |
| Actuator Shape: | Round |
| Cap Color: | Silver |
| Actuator Length: | .079 in |
| Switch Function: | OFF-ON |
| Type: | Sealed |
| Durability Rating (Cycles): | 100,000 Cycles |
| Mounting Style: | Panel Mount |
| Current Rating: | 10 A |
| Voltage Rating (AC): | 115 VAC |
| Voltage Rating (DC): | 28 VDC |
| SKU: | OTTP8-V521413 |
P8-V521413
Specifications
Detailed Description

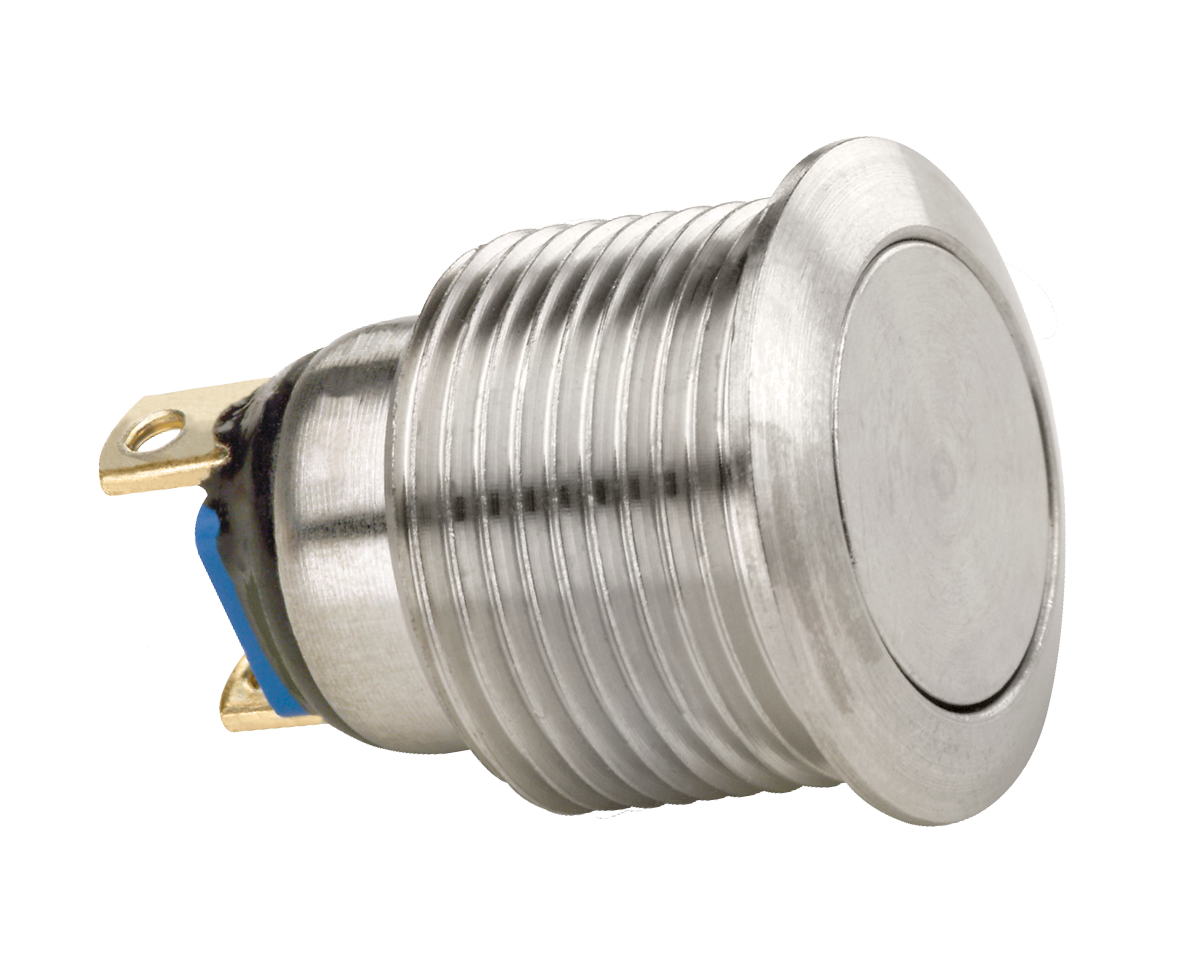

Introducing the Vandal Resistant Pushbutton Switch, perfect for applications demanding durability and reliability. Crafted with a stainless steel low-profile flat button in a round shape, this switch boasts a silver cap and case, ensuring a sleek and professional appearance. With an IP6K4S rating, it guarantees protection against dust and water ingress. Featuring a SPST-NO contact configuration and a 10A current rating, it's suitable for a wide range of uses. This panel mount switch with screw termination offers easy installation. Operating flawlessly in temperatures ranging from -55°C to 85°C and with a lifespan of 100,000 cycles, it's built to last. Whether for industrial machinery, automotive, or outdoor applications, this switch delivers performance you can rely on.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
